KREG Precision Router Lift for Festool OF 1400, Bosch, Mafell, DeWalt, Elu, Freud, Makita, ...

PRECISION FOR YOUR ROUTER TABLE

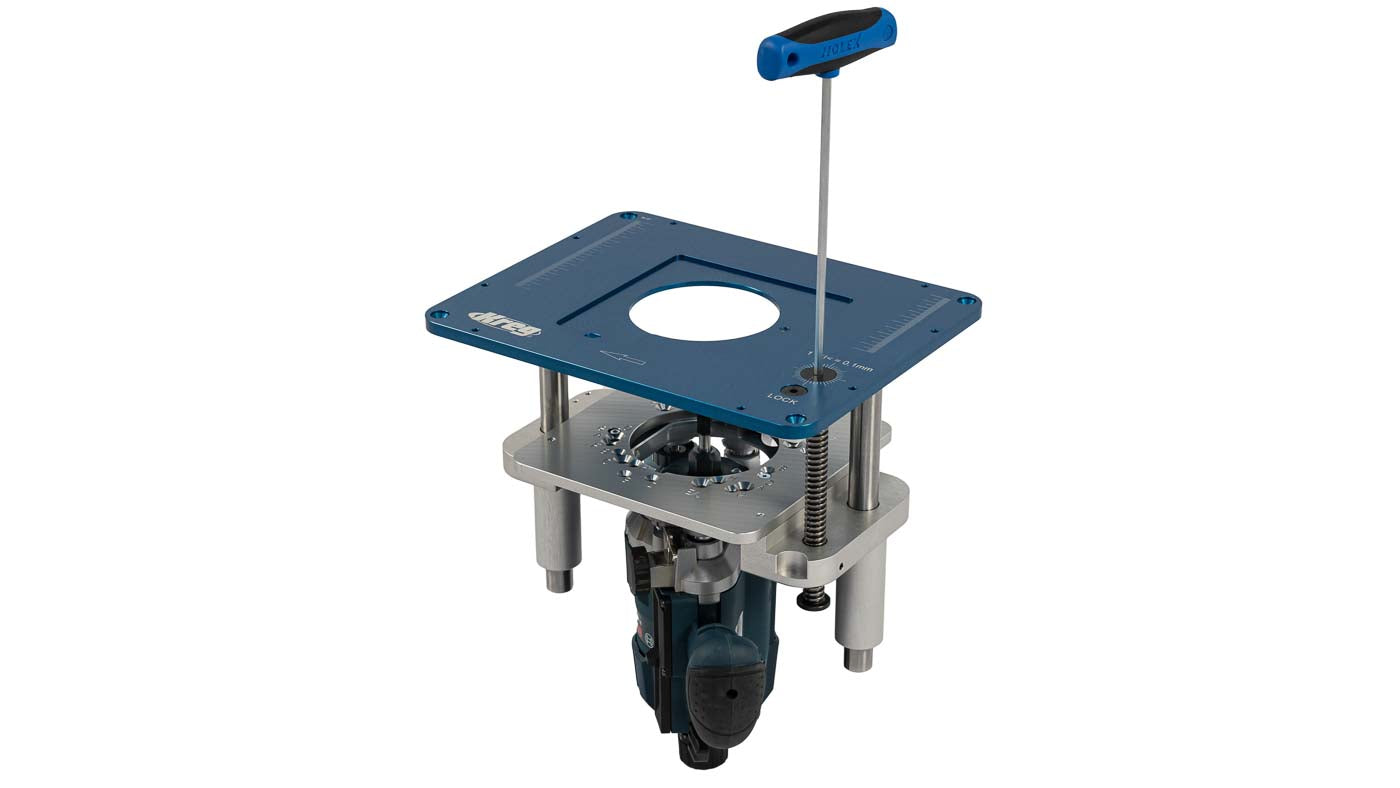

This solid and precisely manufactured router lift - Made in Germany - lets your hand router shine with a new range of functions.
The Kreg milling lift is easy to adjust and allows you to mill comfortably and precisely in stationary operation.

All you need is a table and a stop, which can be simple or extensive depending on your personal preference.
You can also place a safety switch at the front of your workbench to ensure you can work safely.

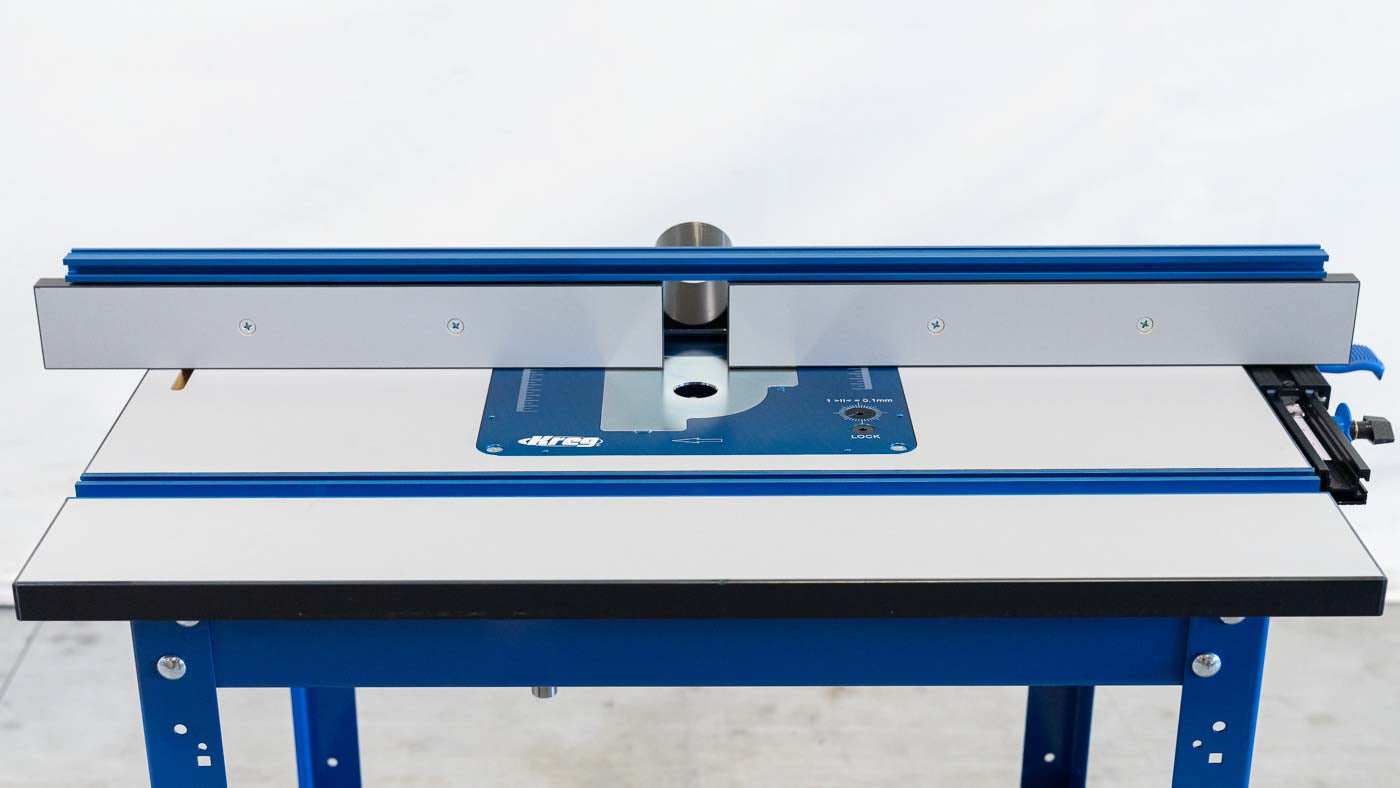

Would you like a finished router table?
Link: https://www.mikestoolshop.at/kreg-premium-fraestisch-prs1045

CHARACTERISTICS

• Quality from Germany: Construction made of high-quality aluminum and steel.
• Fine height adjustment to 1/10mm: extremely precisely adjustable, with exact scaling and effective spindle lock, conveniently operated via hexagon socket screw.

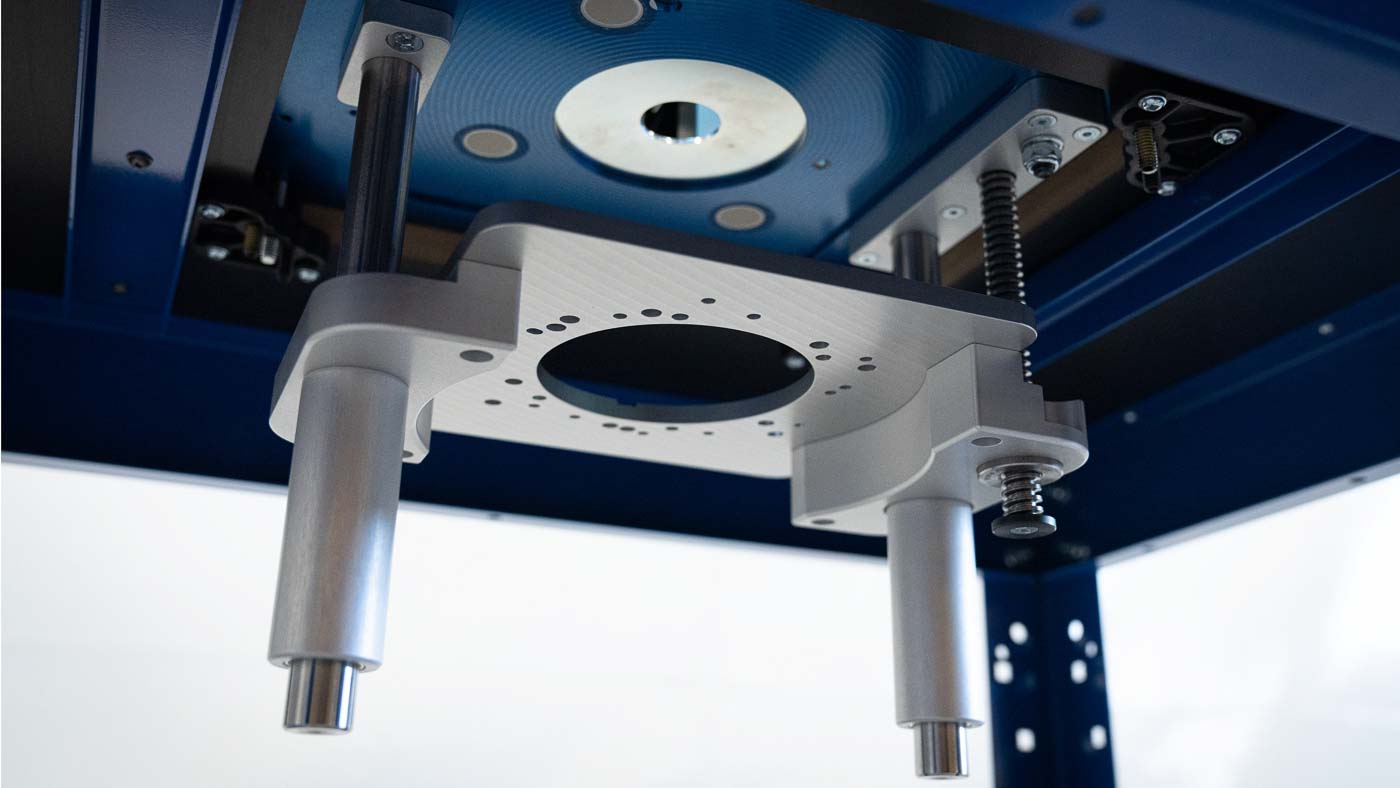

• Smooth-running spindle columns: Allow continuous and precise height adjustment.
• Milling without parallel stop: 2 holes for free milling stop pins enable free milling of round workpieces, for example, without a parallel stop.

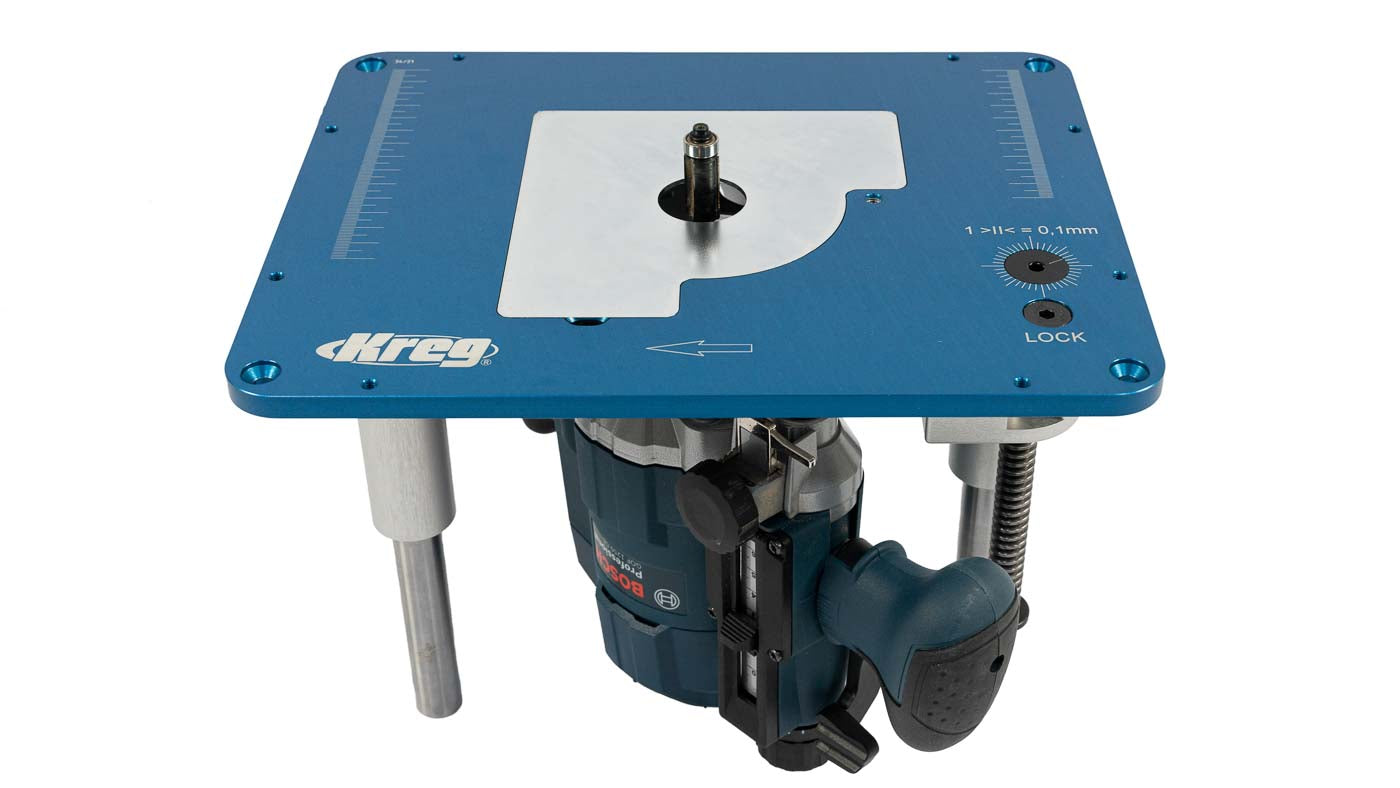

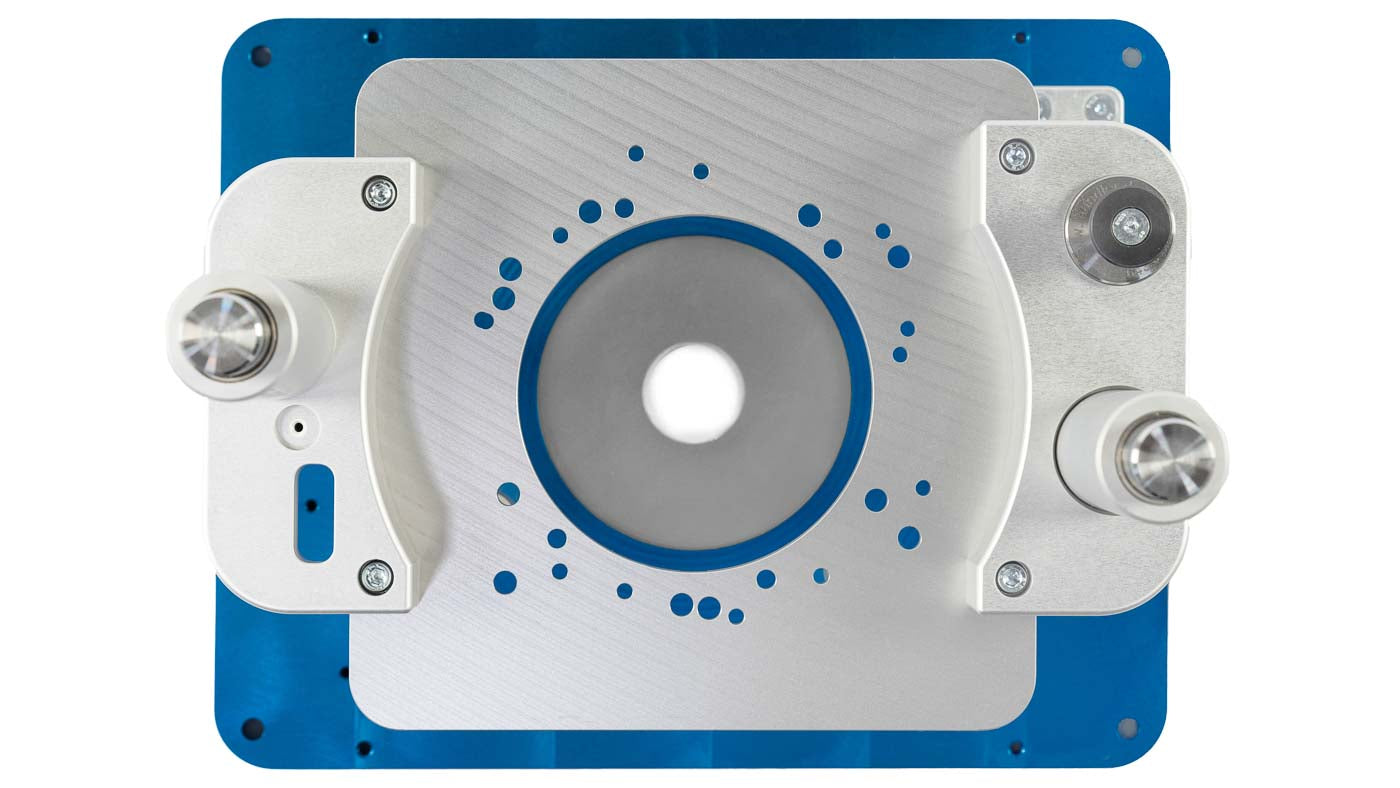

• Easy installation: Mount the router to the RL2.0 using pre-drilled mounting holes (drilling pattern in the operating instructions).
• Absolutely flat: easy leveling of the RL2.0 using leveling screws in the insert plate.

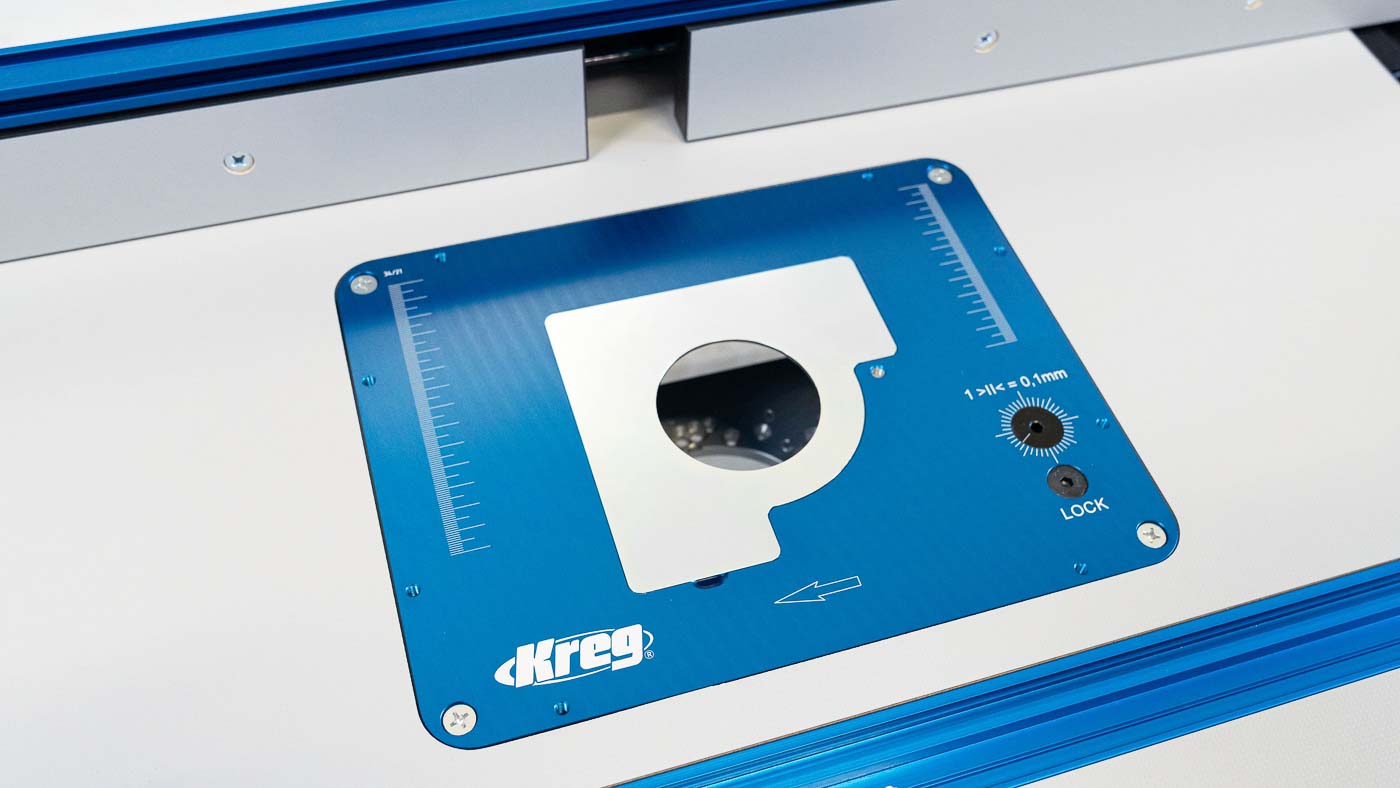

• Laser-engraved scale: Millimeter scale on the surface for precise alignment of the parallel stop.
• No drilling required: Mounting holes (countersunk head) for quick installation of the router table are already pre-drilled.

SPECIAL FEATURES

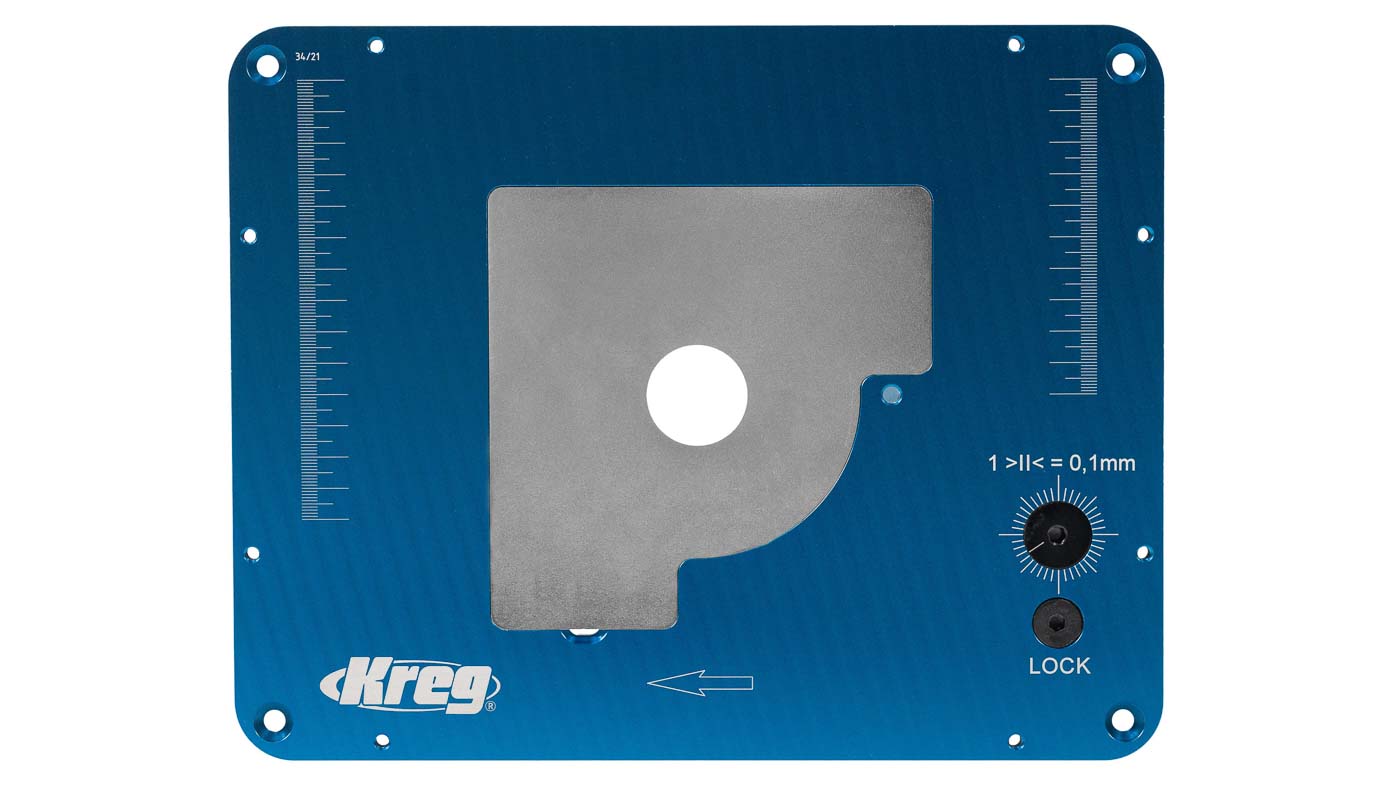

• The reduction plates offer more choice and control when selecting the correct hole size. Perfectly adapted to the size of the cutter, they eliminate snagging and catching on the hole edge, especially with small workpieces.
• Magnetism for attaching additional accessories is distributed over the entire reduction plate.
• Additional recessed grip for easy changing of the reducing plates.

FITS

• Bosch: POF1200AE, POF1300, POF1400ACE, GOF1250CE/LCE, GMF1600CE, GOF1600CE
• Casals: CT2200VCE
• DeWalt: DW615, DW621, DW622, DW624, DW625, DWE627KT-QS
• Elu: MOF96(E), MOF97(E), MOF131, MOF177(E), MOF 177/02 Type 2
• Festool: OF1400
• Freud: FT2000 (Diabolo), FT2200VCE
• Mafell: LO 65 EC
• Makita: RP1110
• Beads: OF3-808(RE), OF9(E)
• Trend: T5, T10, T11
• Würth: OF1100E

Exceptions: ELU MOF 96/02 (no threaded holes available), Festool OF2000, OF2200 and DeWalt DW626 (these are too large in their entirety and cannot be fitted into the lift construction).

TECHNICAL DETAILS

• Dimensions of insert plate: 298 x 235 x 9 mm
• Corner radius insert plate: 19 mm or 3/4"
• Distance from the top edge of the insert plate to the base plate of the mounted router: 15 mm (milling depth loss)
• Height adjustment range/turn: 4 mm
• Height of milling lift (max. extended): 240mm
• Max. cutter diameter: 86 mm
• Max. adjustment range: 105 mm
• Weight: 4.5 kg

SCOPE OF DELIVERY

• 1x router lift RL2.0K
• 2x reducing plates Ø 32 and 68 mm
• 1x hexagon screwdriver 5x150 mm
• 4x fastening screws M6x50, washers and nuts
• 18x mounting screws (various sizes)
• 8x leveling screws M5x8
• 1x User manual (German & English)
