Mafell carpentry chainsaw ZSX TWIN Ec - 961601
Description
Description

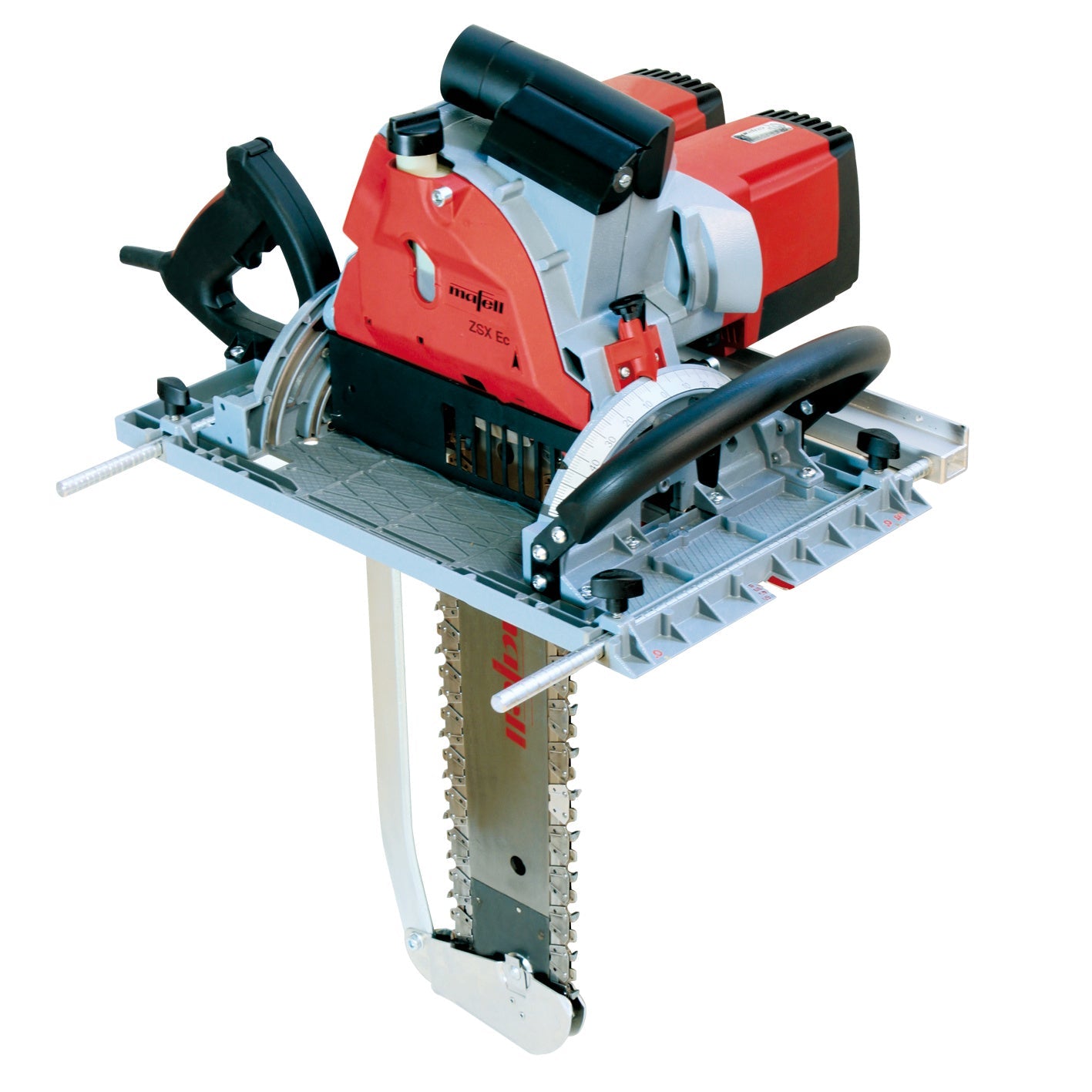

The ZSX-TWIN Ec carpentry chainsaw is the practical solution for large-sized wooden components.
With the development of the twin-engine chainsaw, MAFELL has created a new dimension, allowing previously almost impossible and time-consuming tasks to be carried out effortlessly and precisely.
With a rated power of 3000 watts, just one CUprex motor pushes the 230 V power grid to its limits. Two CUprex motors simultaneously would bring any single-fuse lighting grid to its knees. Distributing the power across two circuits gives the twin-motor ZSX the power it needs. The mains power grid provides precisely this power, as the phases are separately protected, thus preventing the grid from being overloaded.
AREA OF APPLICATION
- Longitudinal and cross-sectional sections
- excerpts
- Material use e.g.: solid wood and glued laminated timber
ADVANTAGES
- Thanks to the use of luminous flux technology, the ZSX TWIN weighs only 20 kg with a rated power of 6,000 watts. This allows for longitudinal cuts up to a cutting depth of 400 mm!
- Corner cutouts are often necessary in timber construction and when cutting solid wood walls. The vertical cutting tool allows for quick and precise cutouts and overlays. Time-consuming turning of the wooden components is eliminated.
- The heart of the ZSX-TWIN Ec are the two 3,000-watt luminous flux motors. They are operated in parallel on two 230 V phases from the mains power supply.
- The ZSX can be tilted from -15° to 60° precisely according to the scale.
SCOPE OF DELIVERY
- 1 TWIN HM 400 longitudinal cutting chain; Order No. 006977
- 1 fine-cut chain HM 400; Order No. 006972
- 1 transport trolley ZSX-TWIN Ec
- 1 glider for guide rail insert; Order No. 205934
- 1 rip fence; Order No. 204591
- 1 combination wrench 6 mm; Order No. 093272
- 1 open-end wrench 13 mm; Order No. 093008
- 1 connection cable 10 m; Order No. 087906
- With transport trolley included
TECHNICAL DETAILS
| Cutting depth | 400 mm |
| Cutting depth at 15° | 386 mm |
| Cutting depth at 30° | 346 mm |
| Cutting depth at 45° | 282 mm |
| Cutting depth at 60° | 199 mm |
| Can be swiveled on both sides | -15 - +60 ° |
| Nominal idle speed | 3600 rpm |
| Nominal power | 2 x 3000 W |
| Weight | 24.2 kg |
| Universal motor | 230 V / 50 Hz |
