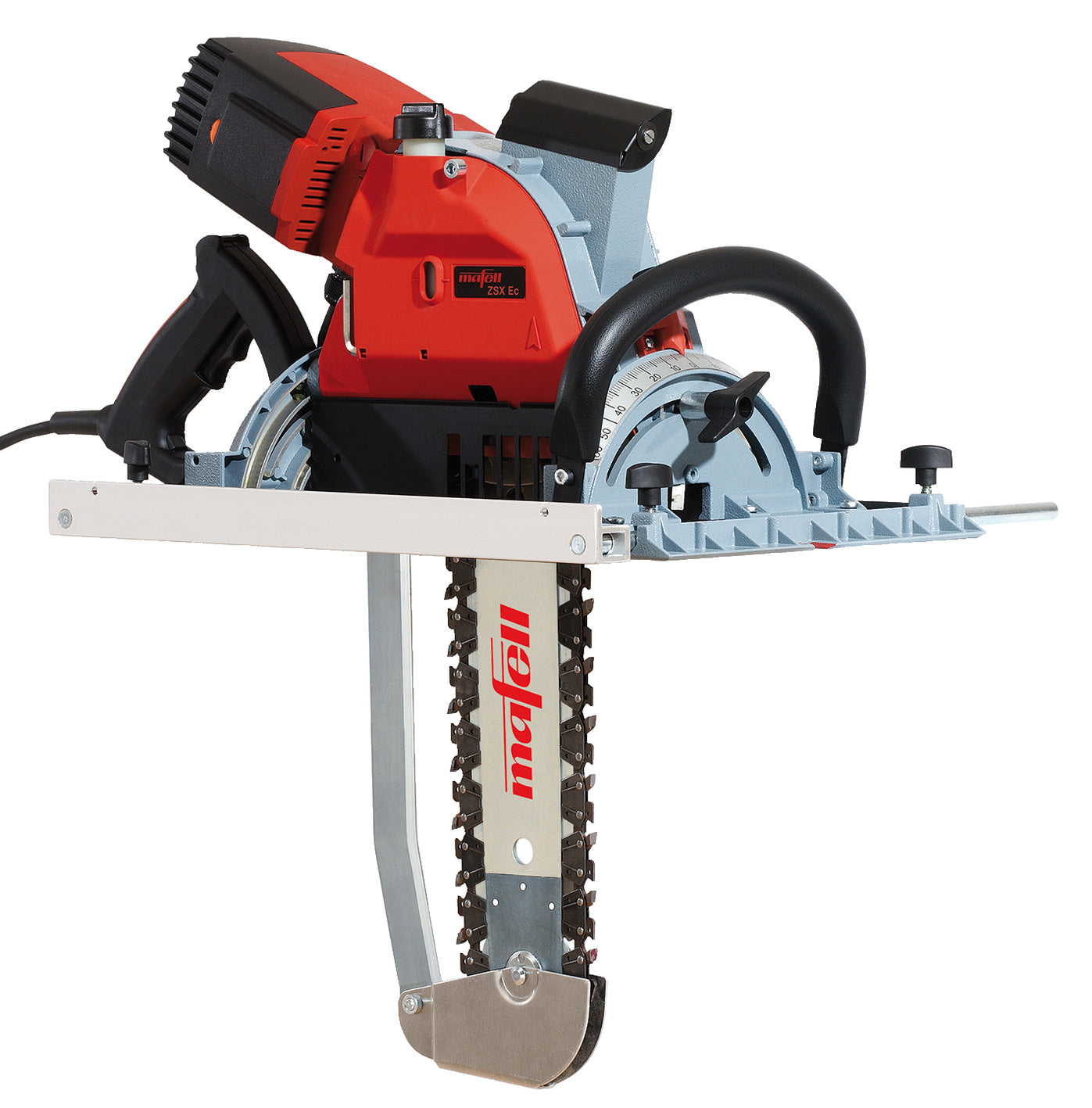

Mafell carpentry chainsaw ZSX Ec / 400 HM - 925502
Description
Description

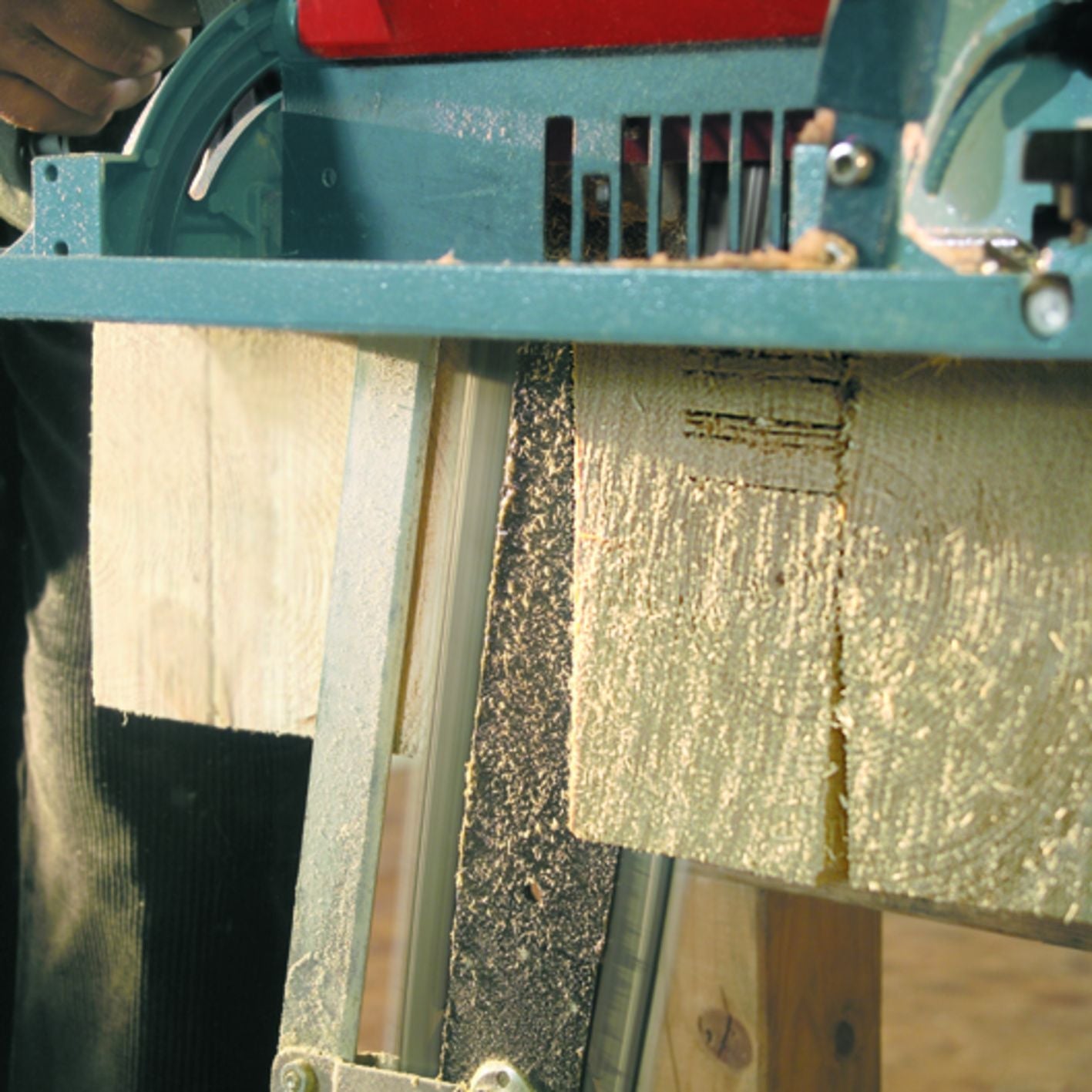

Convincing cutting characteristics in unprecedented quality, thanks to the MAFELL special chain and precise chain guidance on the rail.

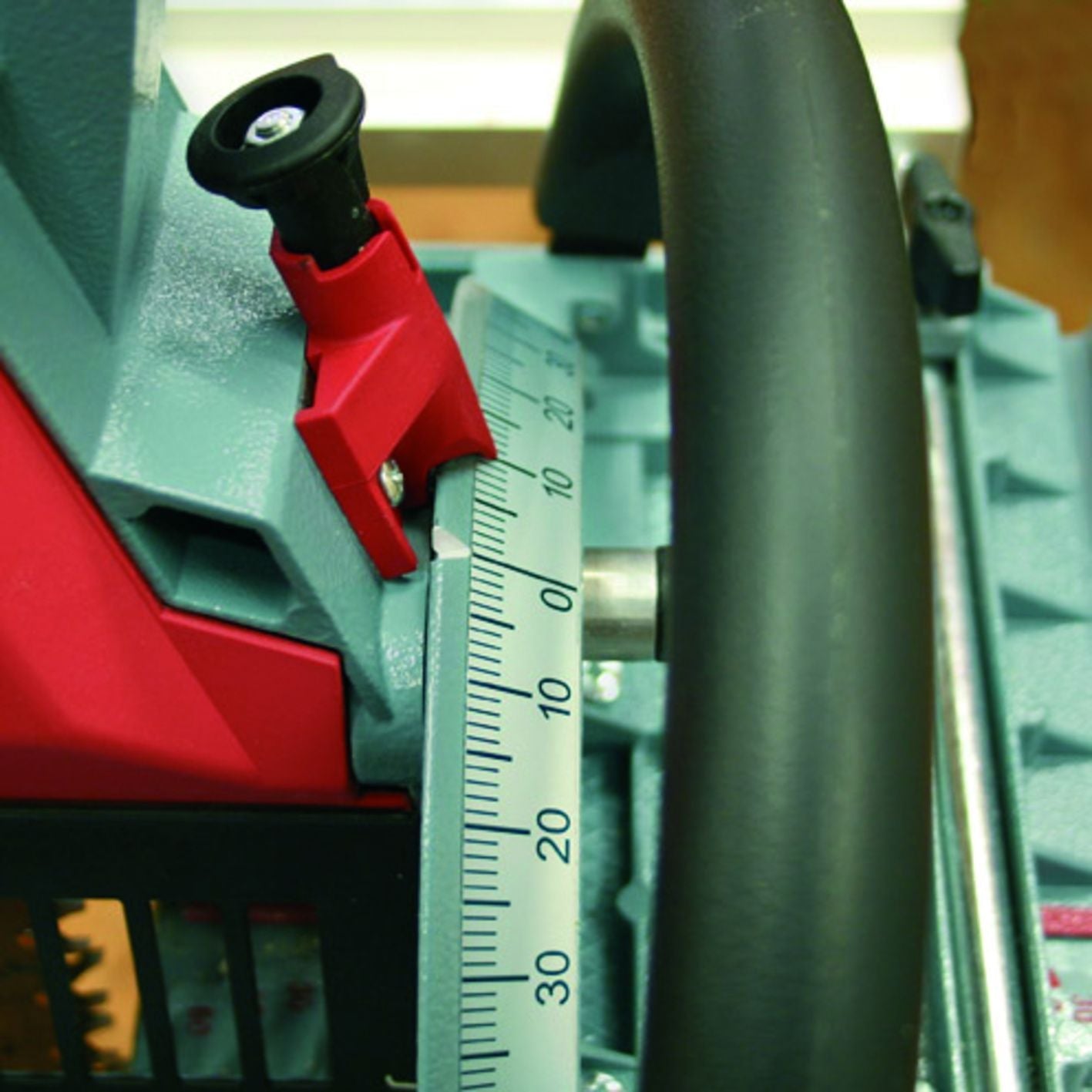

The ZSX Ec can be tilted up to 60° on both sides. The selectable locking function allows standard angles such as 0/90° and 45° on both sides to be quickly and easily adjusted.
The engine cooling air blows the constant crack indicator clear and ensures a clear view of the crack.
The large and adjustable chip ejector enables optimal chip ejection.
Automatic chain lubrication with precisely adjustable flow rate, thus no oil splashes on the wood.

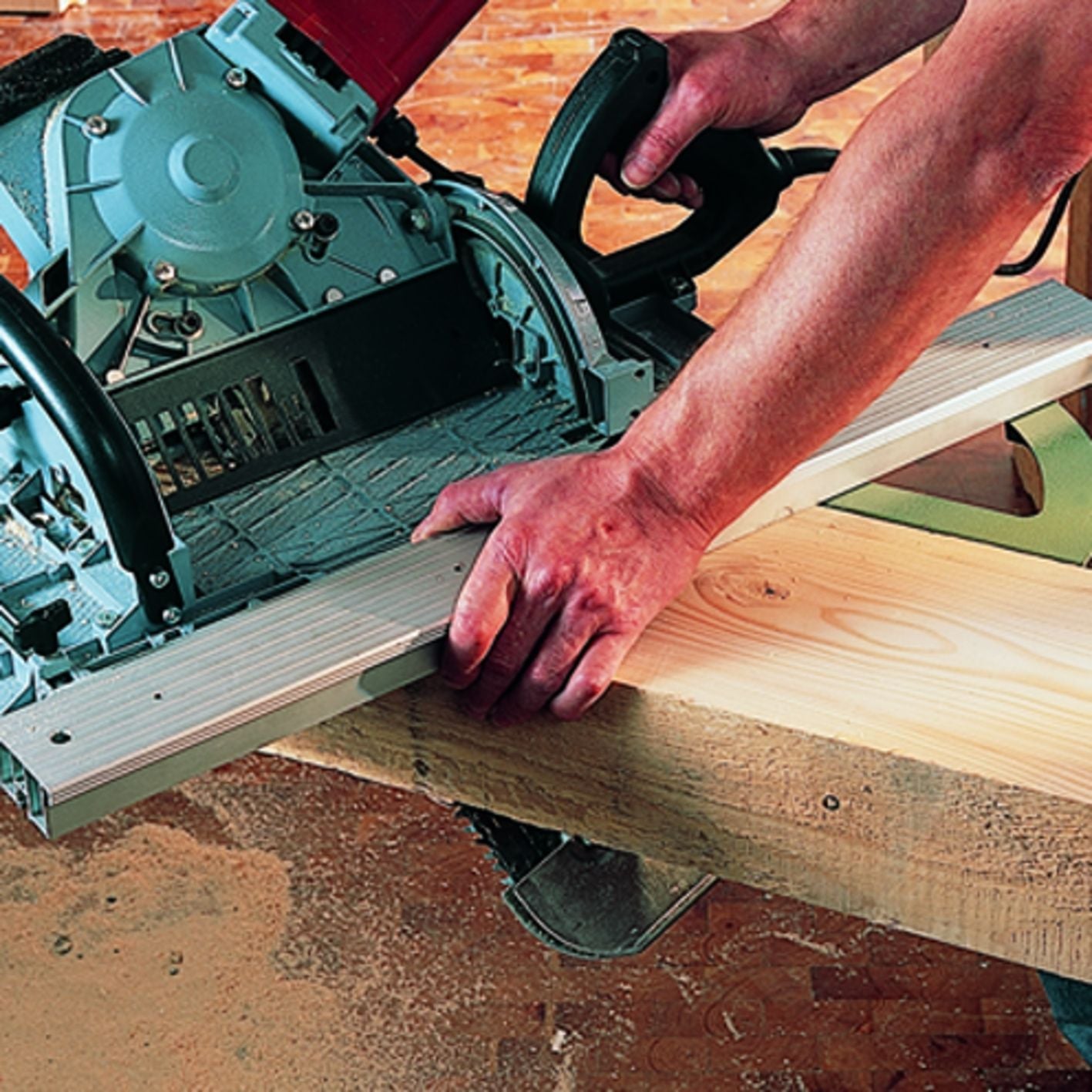

Like all of our carpentry hand-held circular saws, the ZSX Ec also uses our guide rail system.

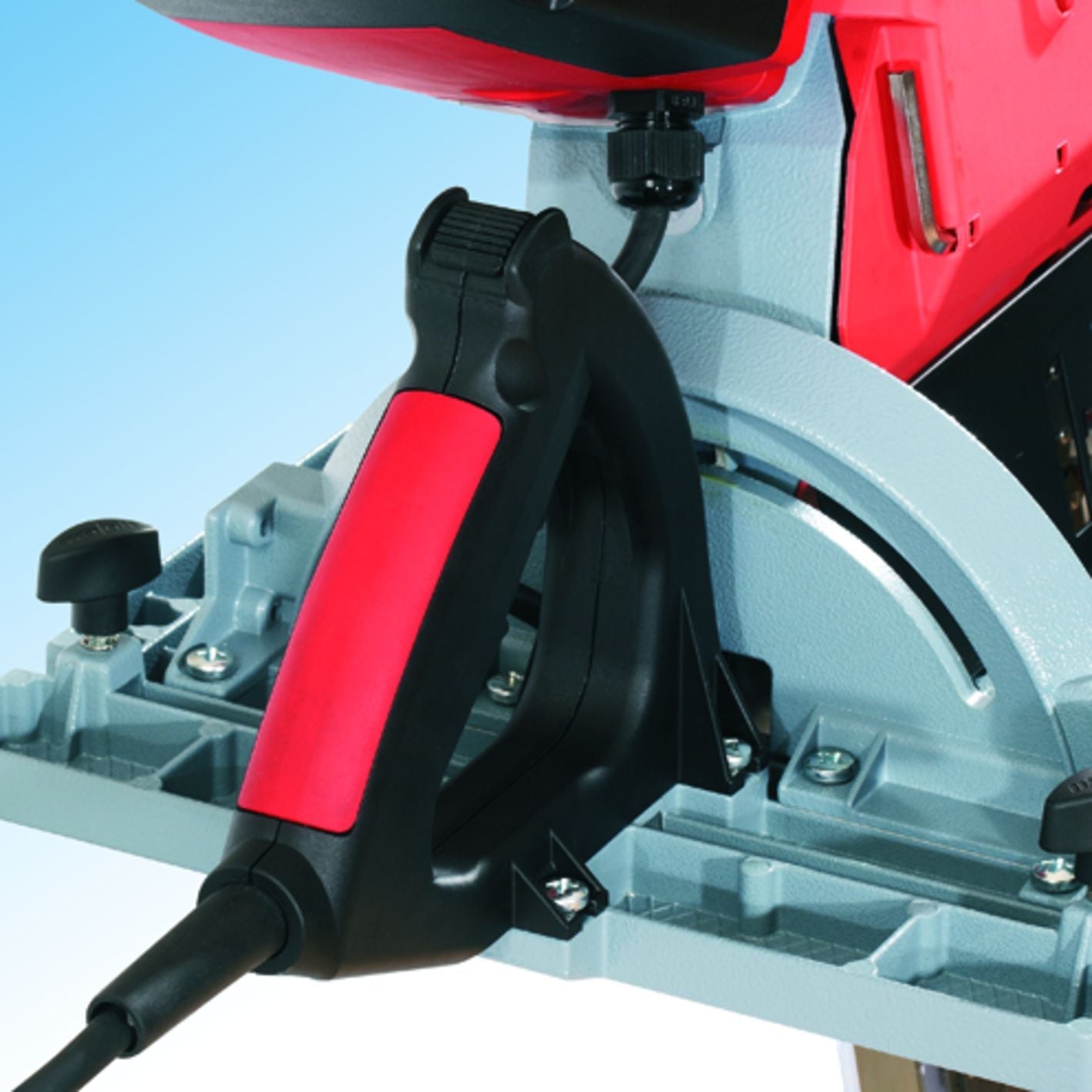

Ideal for both right- and left-handed users. The ergonomic handle and switch layout always applies the feed pressure perpendicular to the support.
AREA OF APPLICATION
- Cross-sections and longitudinal sections
- Bevel cuts up to 60°
- General joinery work
- Miter cuts up to 60°
- Materials used, e.g.: solid wood, glued laminated timber, insulation
ADVANTAGES
- With 3000 W CUprex motor, optimized digital electronics and newly developed control technology.
- As a special accessory - the rafter rail for precise individual processing such as rafter and purlin sections.
- Excellent handling and optimal comfort - thanks to low weight and switch-on lock integrated directly into the handle.
- Double swivel guide - for precise angle cuts.
- Excellent cutting results – thanks to MAFELL special saw chain.
SCOPE OF DELIVERY
- 1 rip fence; Order No. 204591
- 2 fine-cut chains HM 400 for ZSX Ec / 400 HM; Order No. 006972
- 1 combination wrench 6 mm; Order No. 093272
- 1 connection cable 10 m; Order No. 087612
TECHNICAL DETAILS
| Cutting depth | 400 mm |
| Cutting depth at 45° | 282 mm |
| Cutting depth at 60° | 199 mm |
| Can be swiveled on both sides | -60° - +60° ° |
| Nominal idle speed | 3000-3600 rpm |
| Nominal power | 3000 W |
| Weight | 14.1 kg |
| Universal motor | 230 V / 50 Hz |
