Mafell hand band saw Z 5 Ec - 925301
Description
Description

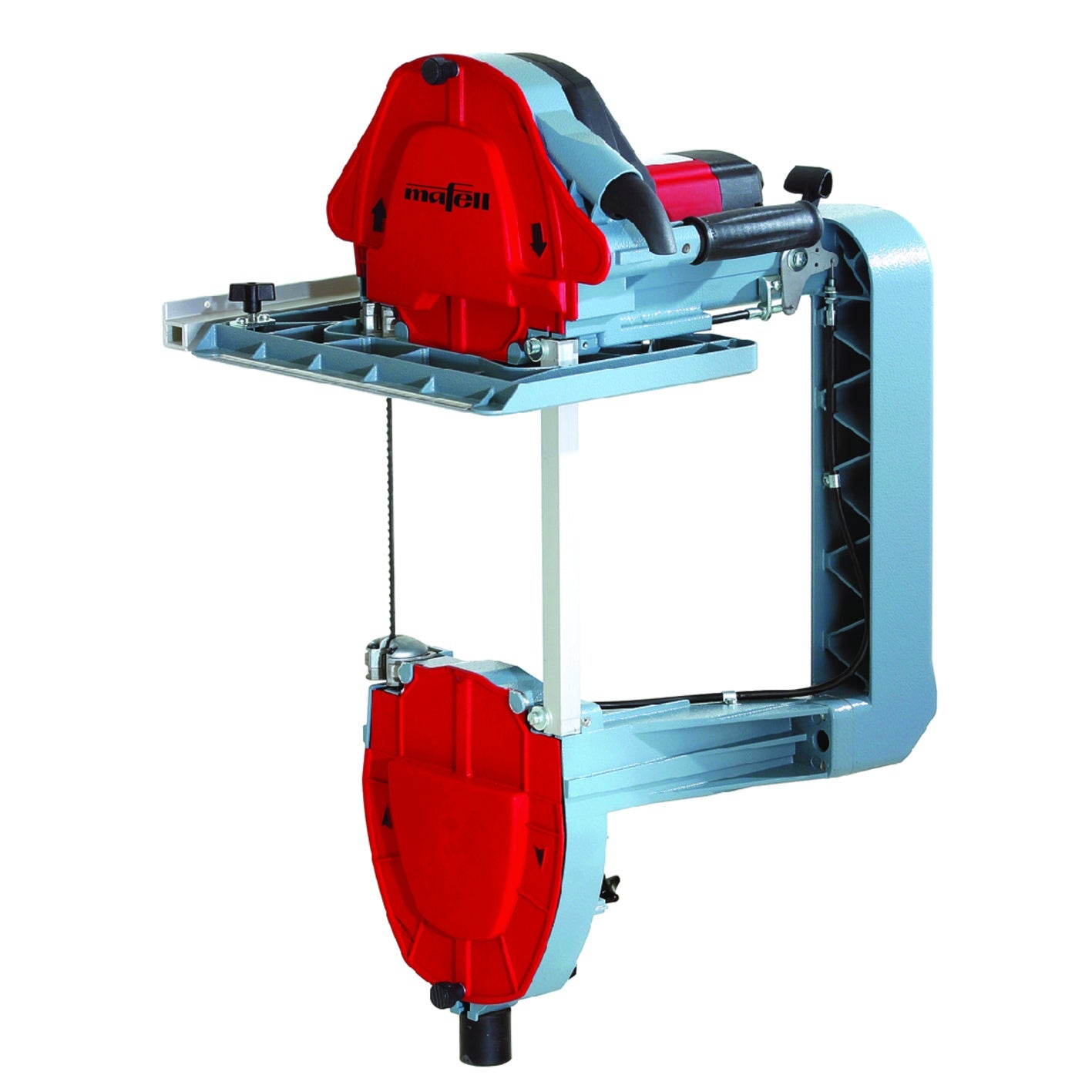

The Z 5 Ec hand-held band saw is the innovative successor to the legendary Z 3. Thanks to the CUprex high-performance motor and magnesium die-cast components, it impresses with its lower weight (13.7 kg), increased performance, even higher torque and excellent handling.
With ball-bearing saw blade guides for excellent blade tracking and thus optimal cutting. Maximum 8 mm saw blades for optimal flexibility when chamfering and profiling purlins and rafters.
For thicker materials, the compact Z 5 Ec features a full 305 mm cutting depth. The precision typical of MAFELL hand-held band saws also ensures an excellent cutting pattern and perfectly square cuts on the Z 5 Ec.
The cooling air from the high-performance engine is used to clear the scribe line. The result: no chips at head height and a clear view of the scribe line at all times.
Area of application
- Longitudinal and cross-sectional sections
- Sweeps and profiles
- Notch cuts and laminations
- Shift cuts and slanted notches (two-man operation)
- Material use e.g.: solid wood and glued laminated timber
Advantages
- The back-toothed saw blade makes it easier to move back through the wood - especially easy when the saw blade is blocked with the mechanical brake.
- The spring preload of the lower guide roller ensures easy, quick belt changes.
- With voltage drop switch to prevent uncontrolled restart after a power failure.
- The unique pivoting saw blade guide enables right-angle cuts up to 90 mm deep without the second saw blade touching the material, e.g. when making band saws.
Scope of delivery
- 1 hand band saw Z 5 Ec
- 1 saw band, 8 mm wide, 4 teeth with back toothing
- 1 saw band, 8 mm wide, 4 teeth per inch
- 1 saw band, 6 mm wide, 4 teeth per inch
- 1 handle for two-person use; Order No. 203824
- 1 rip fence; Order No. 039386
- 1 connection cable 10 m
Technical details
| Cutting depth | 305 mm |
| 1 hinge side pivoting | 0 - 30 ° |
| Nominal idle speed | 650-1550 rpm |
| Nominal power | 2250 W |
| Weight | 13.6 kg |
| Universal motor | 230 V / 50 Hz |
