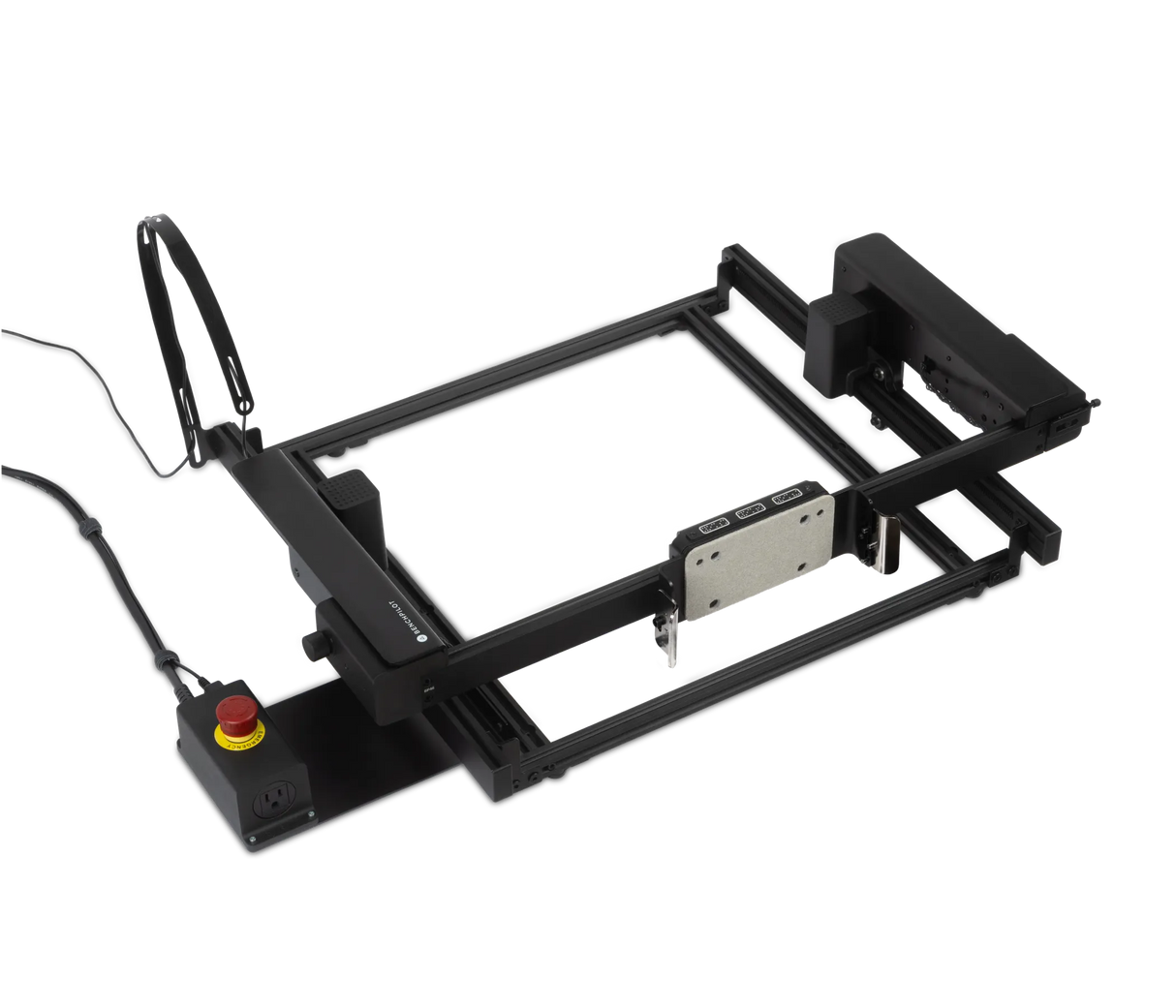

Shaper Benchpilot

SHAPER ORIGIN

BENCHPILOT

Note: Please note the version to receive the correct scope of delivery.

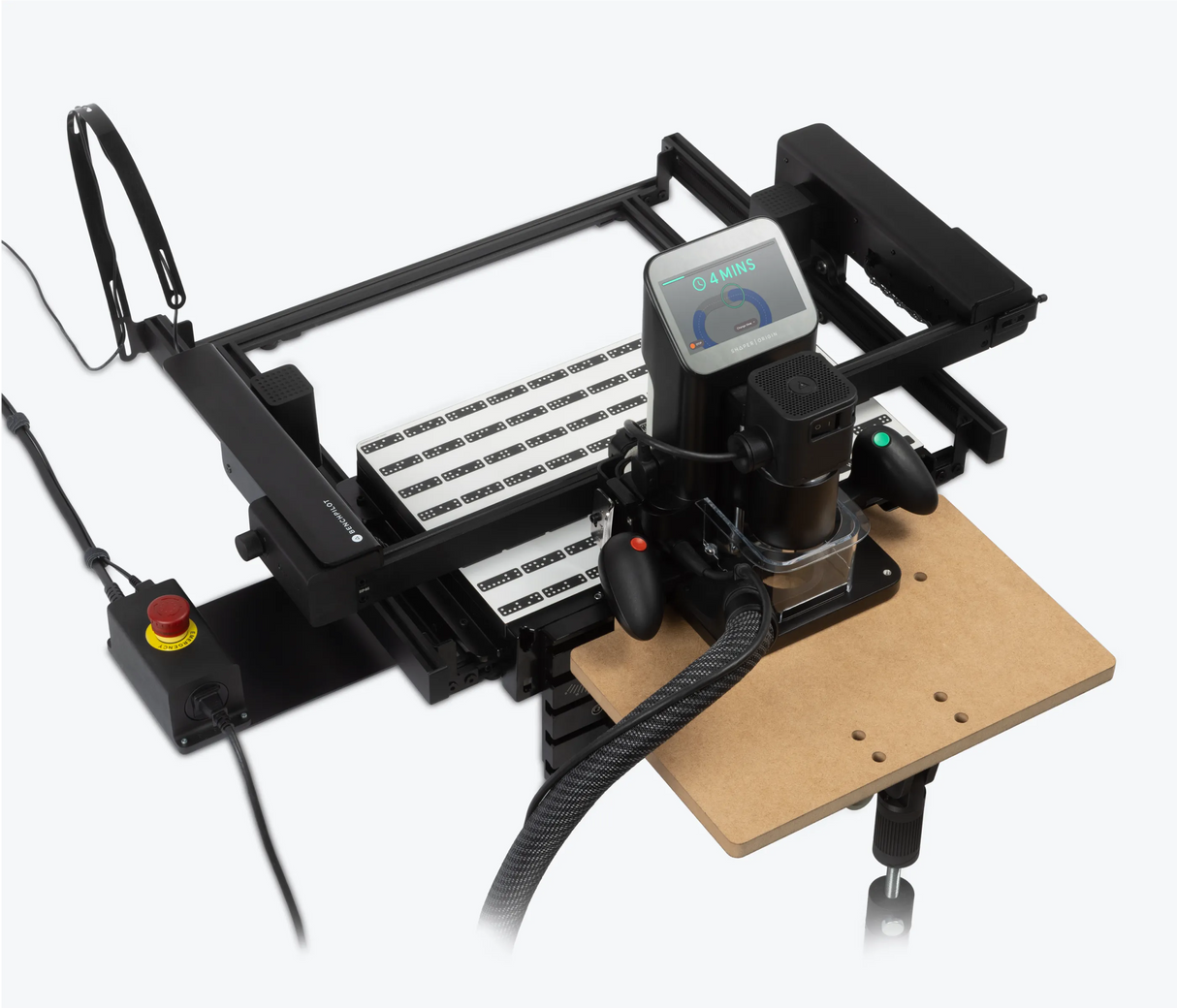

BenchPilot is like an autopilot for Origin: Simply insert Origin into BenchPilot, and you have a self-operating CNC capable of performing surface and face machining. Let BenchPilot control Origin while you focus on other tasks. If you need Origin elsewhere, simply remove it from BenchPilot and use it as usual.

Tired of always guiding Origin by hand? BenchPilot enables automated milling with Origin (Gen1 and Gen2), so you can focus on other tasks. During the milling process, BenchPilot moves Origin from point A to point B, while Origin continues to perform the small, precision milling movements—like an autopilot for Origin.

BenchPilot is mounted on the workstation or directly on your work surface, forming a gantry-like system. This allows for surface and end-face machining operations such as milling joints, inlays, intricate engravings, or profiles. Ideal for series production or lengthy projects. Best of all, no complicated software, G-code, or other CNC programming is required.

APPLICATION

• Automatic control from Origin: Relieves you during long milling operations
• Easy insertion and removal: Turn Origin into a stationary CNC or use it as a mobile handheld device as usual.
• Variable feed rate dial: Work with either the centerline or the outline.
• Timer display: Origin shows the progress and remaining time while milling with BenchPilot.

TECHNICAL DATA

• Width: 848 mm without emergency stop switch / 955 with
• Height: 176 mm
• Depth: 568 mm
• Weight: 12.85 kg
