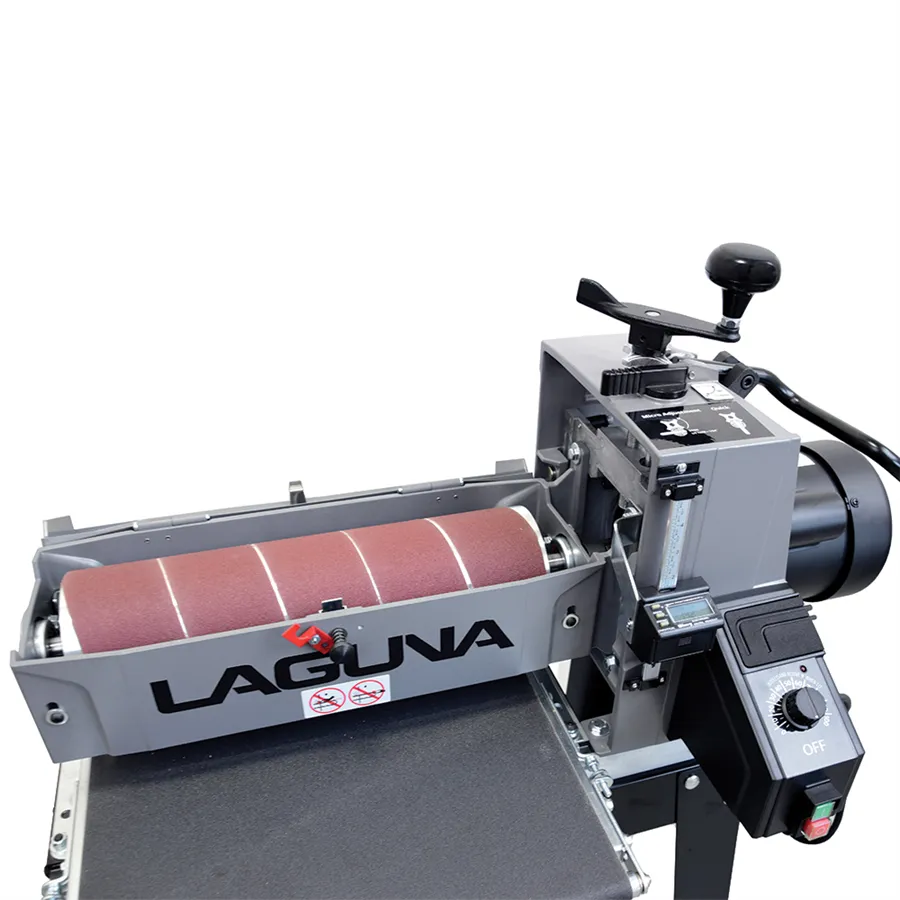

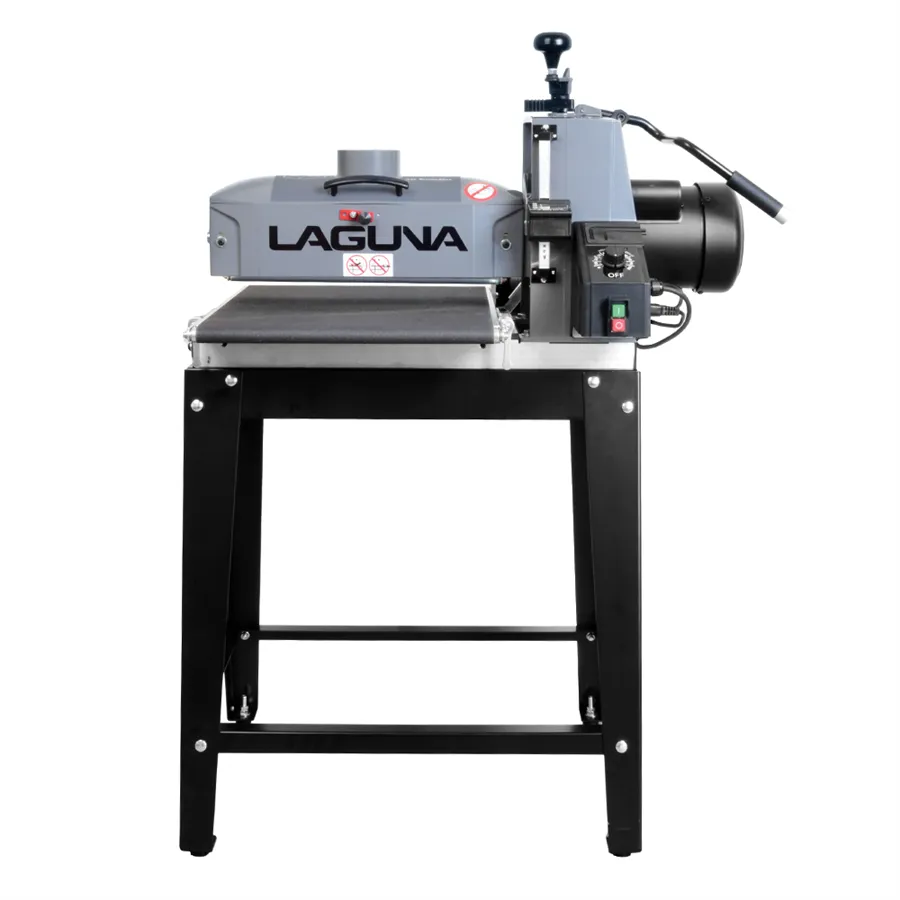

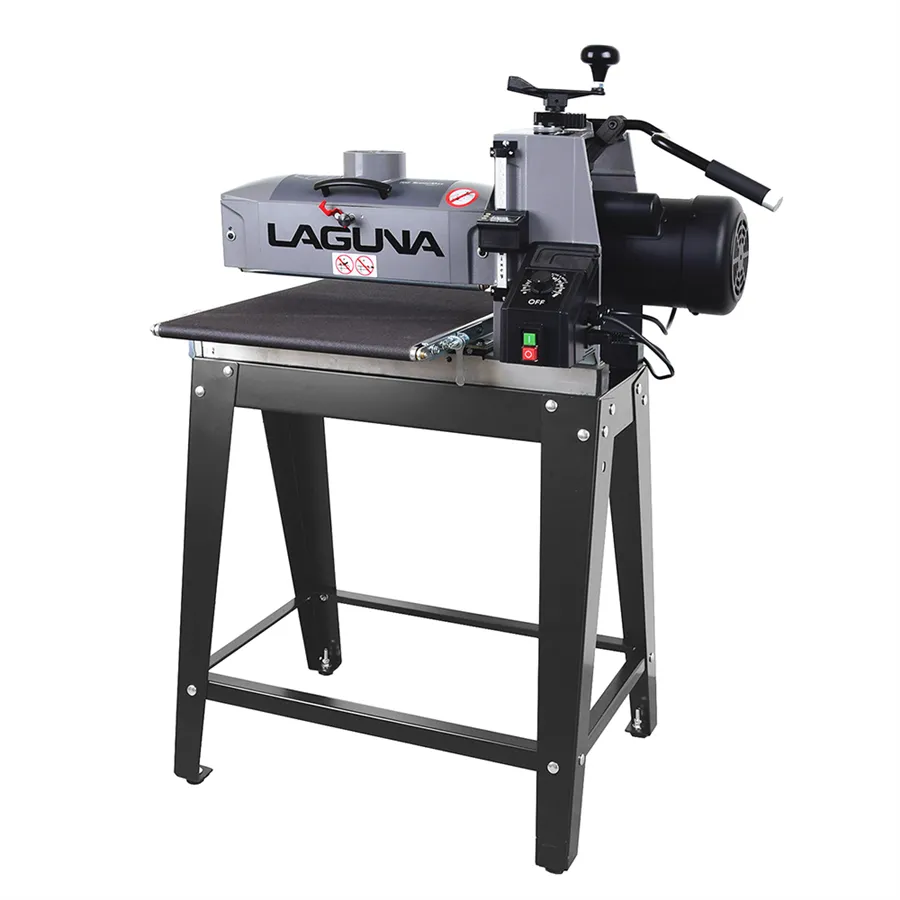

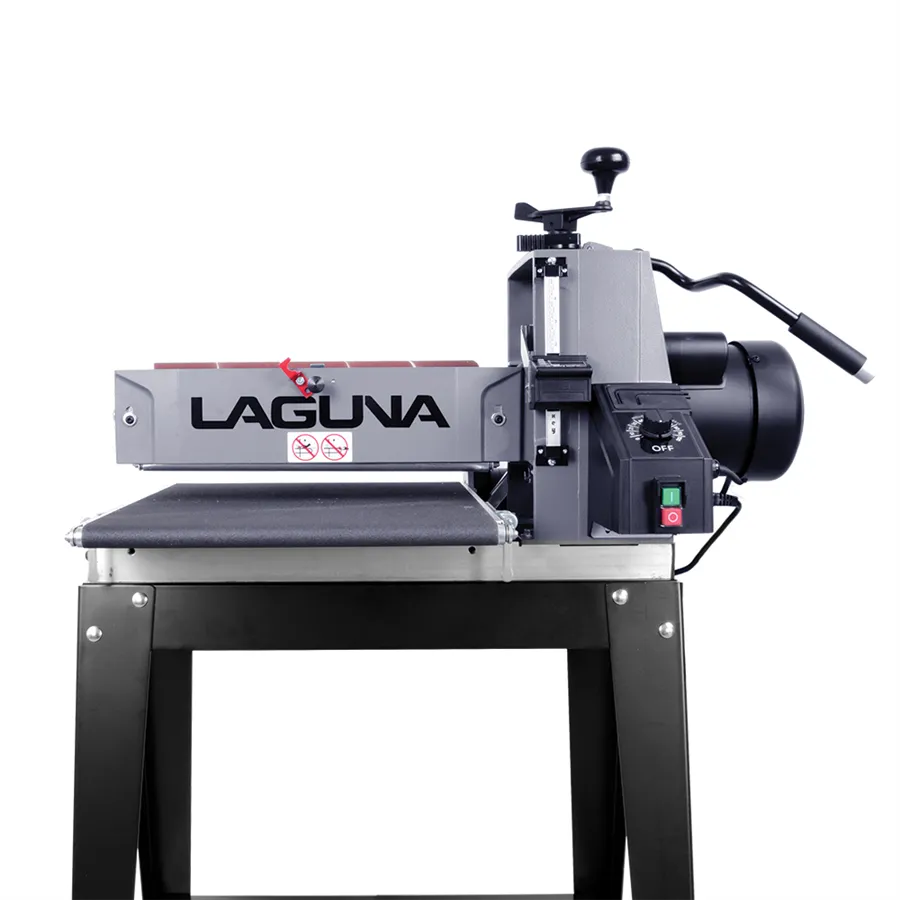

LAGUNA cylindrical grinding machine 1632 SuperMax

The Laguna cylindrical sander was developed with the help of master carpenters. You'll therefore find some features on it that professionals have been missing from the woodworking machine market for years.

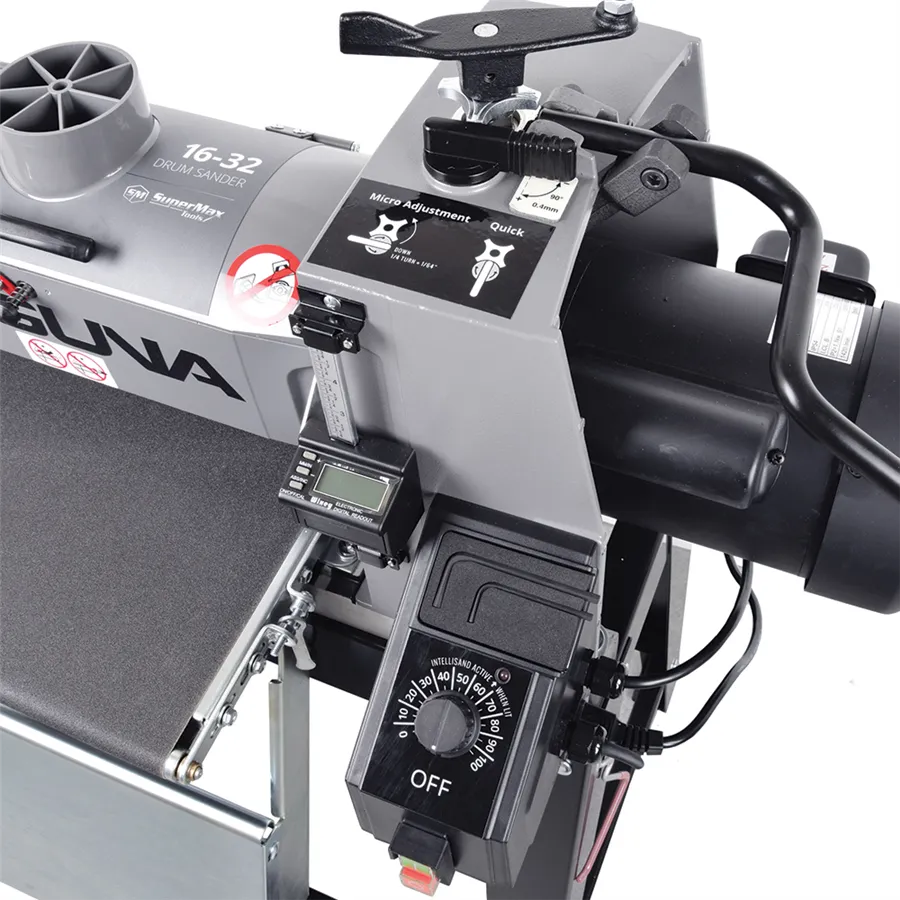

For example, there's a lever for quick and easy adjustment of the grinding height. This allows the grinding height to be changed within seconds, without the cumbersome turning of a dial, as is the case with conventional grinding machines. The cylinder height is shown in tenths of a millimeter on a digital display, ensuring precise readings.

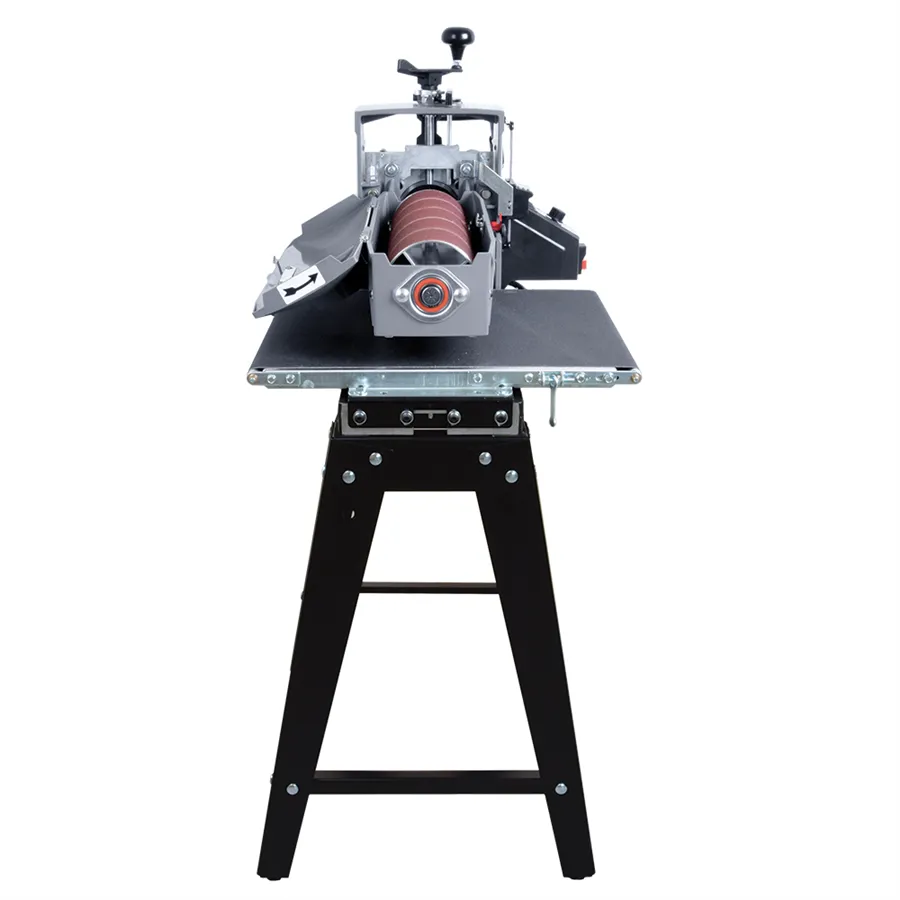

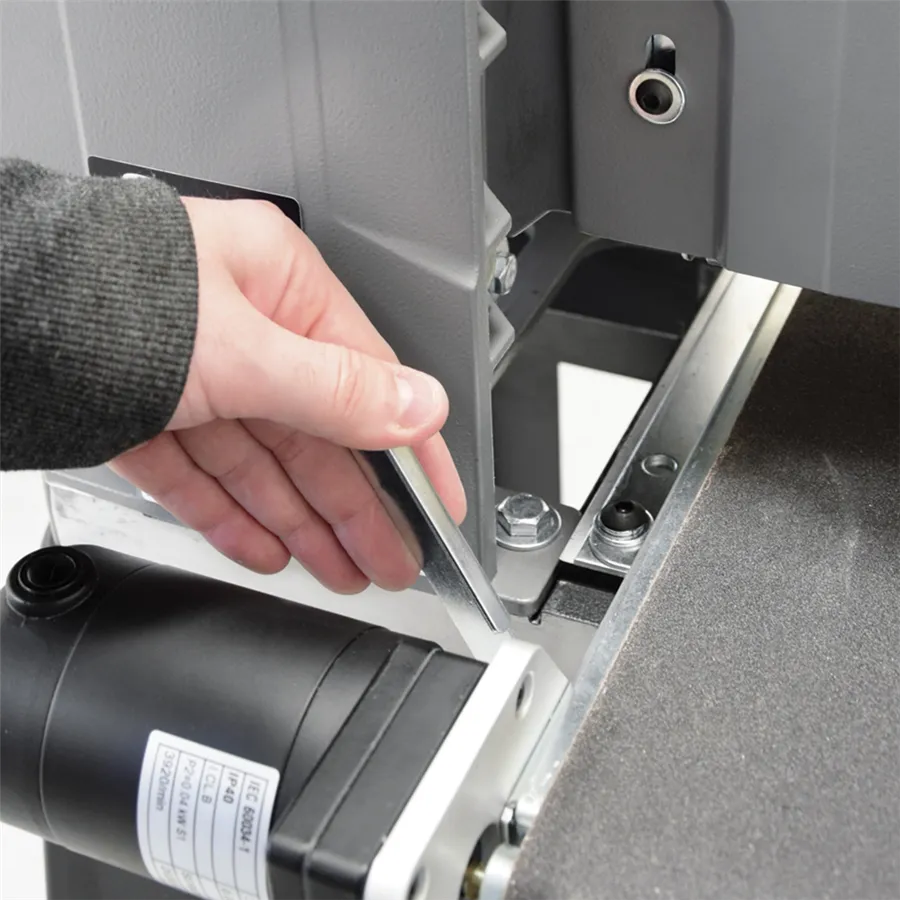

Accuracy across the entire width of the workpiece is ensured not only by the rigid guide of the machine, but also by the precise parallel alignment between the cylinder and the feed belt. Flatness comparison across the entire width of the machine can be easily adjusted using a lever below the feed belt, depending on the width of the material to be ground. Separate
The feed belt motor is located on the back of the grinder and the feed belt is therefore pulled rather than pushed.

» Here you can find really great professional sanding belts for this machine!

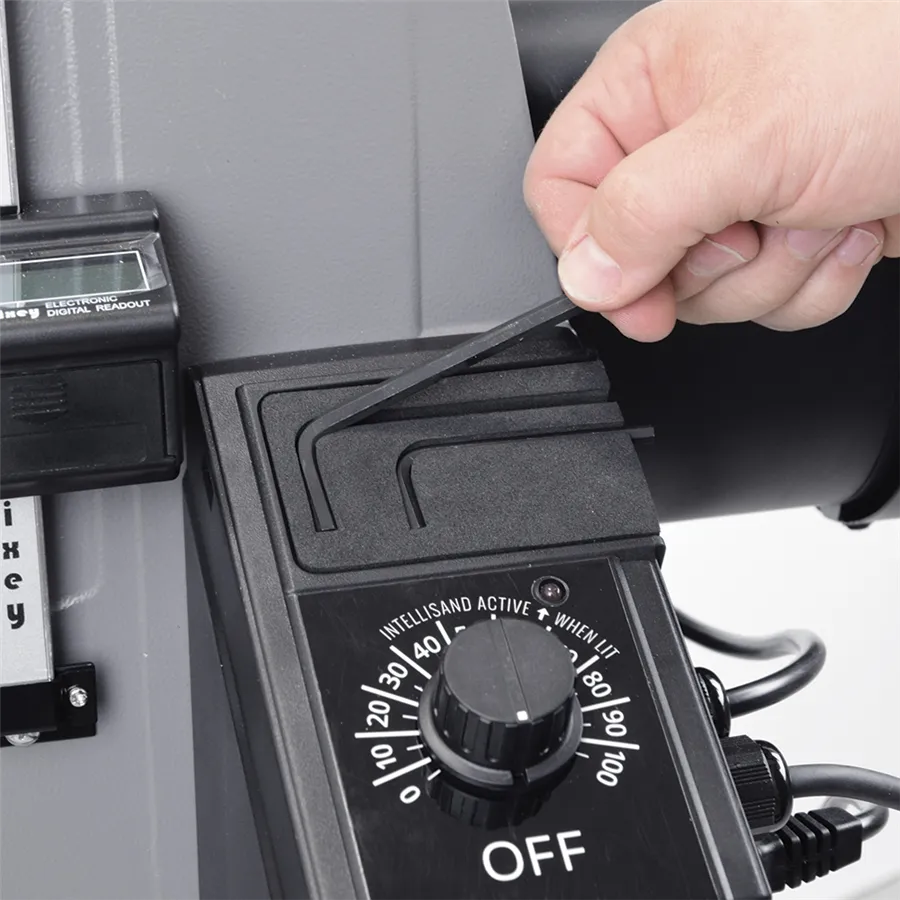

The feed rate adapts to the material thanks to clever Intellisand technology: This automatically adjusts the feed rate to ensure consistent sanding, even with different wood densities and grain directions. This prevents burn-in, tear-out, and damage to the workpiece during sanding. Another highlight: the Turbo Dust Port. A specially designed top cover on the sander increases the effectiveness of sanding dust extraction by 15%.

Designed by professionals for demanding workshops, smooth operation, narrow or wide workpieces, precise grinding and quick adjustments.

• Lever for quick aggregate height adjustment + micro setup.
• Digital display of workpiece thickness.
• Special cylinder cover design for 15% better suction.
• Lever for lifting the table when sanding wide workpieces.
• Rigid cylinder position.
• Intelligent feed slowdown for larger material removal.

Technical data

• Type: 1632 SuperMax
• Recommended use: Professional production
• Power (230 V): 1.1 kW
• Feed belt motor: 40 W
• Speed: 1420 rpm
• Cylinder diameter: 127 mm
• Feed speed: 0-3 m/min.
• Workpiece thickness Min./Max.: 0.8 - 76 mm
• Max workpiece width: 406 (812) mm

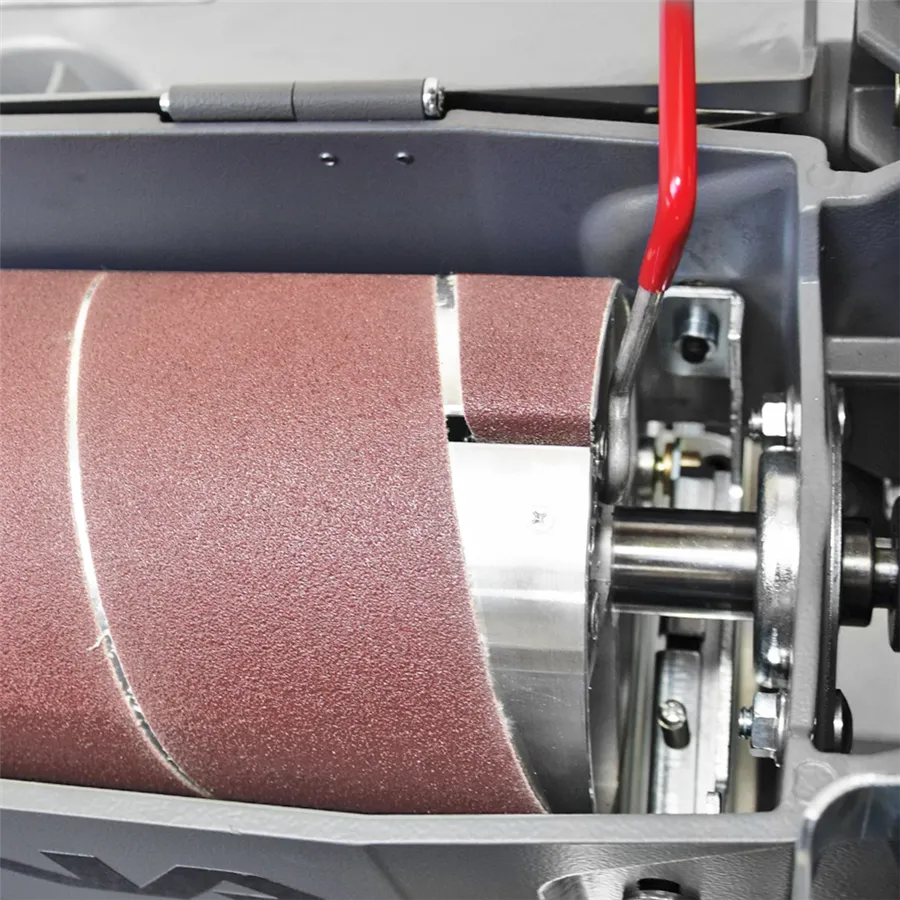

• Sanding belt width: 75 or 76 mm
• Extraction: 100 mm
• Minimum required air flow: 1000 m3/h
• Length × Width × Height: 860 × 560 × 1220 mm
• Weight: 62 kg
• Packaging dimensions: 940 × 660 × 550 mm
• Weight including packaging 71.7 kg

Scope of delivery

• cylindrical grinding machine
• Base frame
• 1 sanding belt K 80

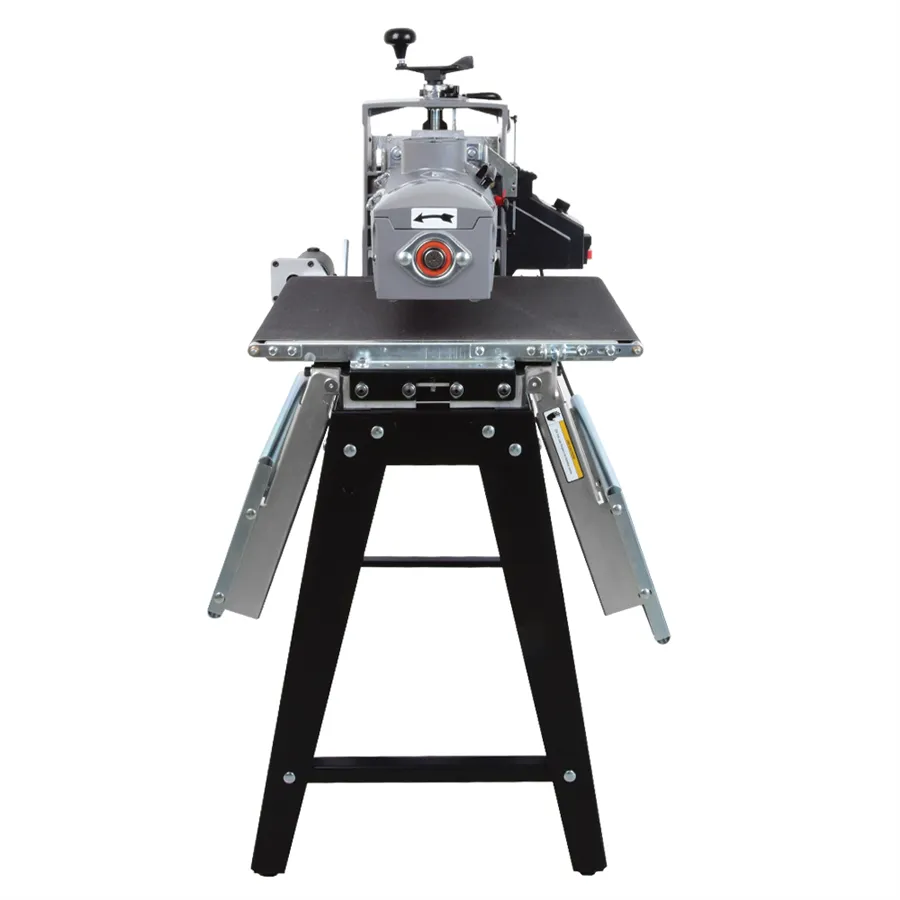

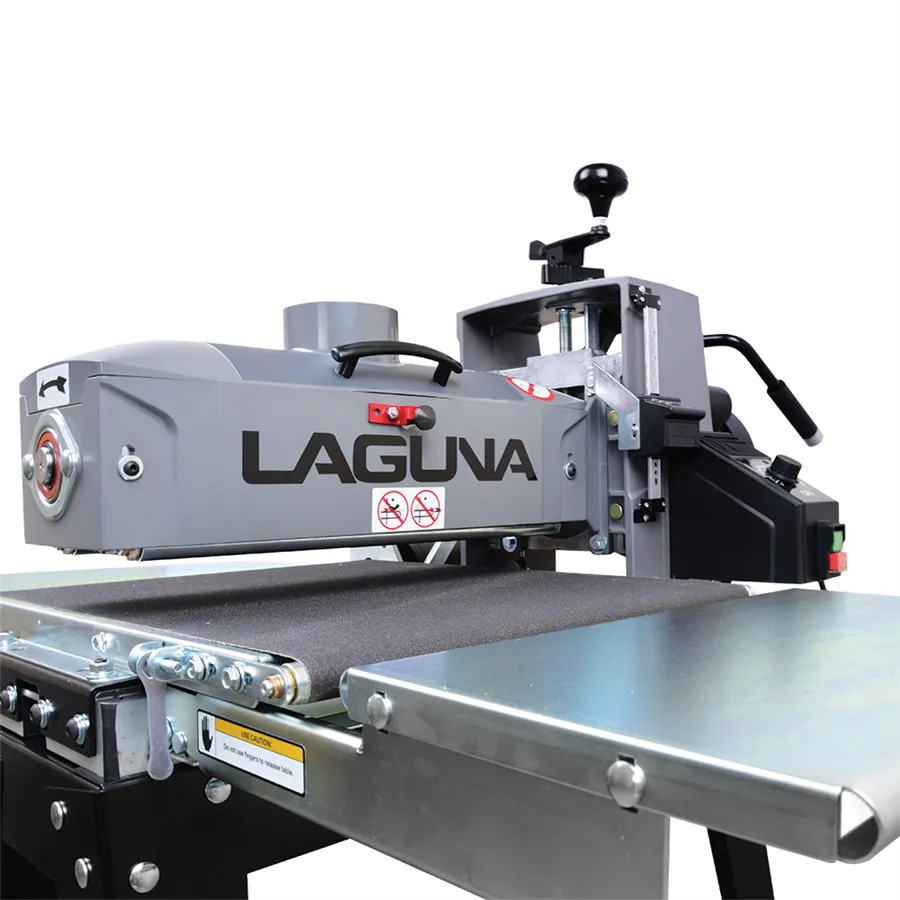

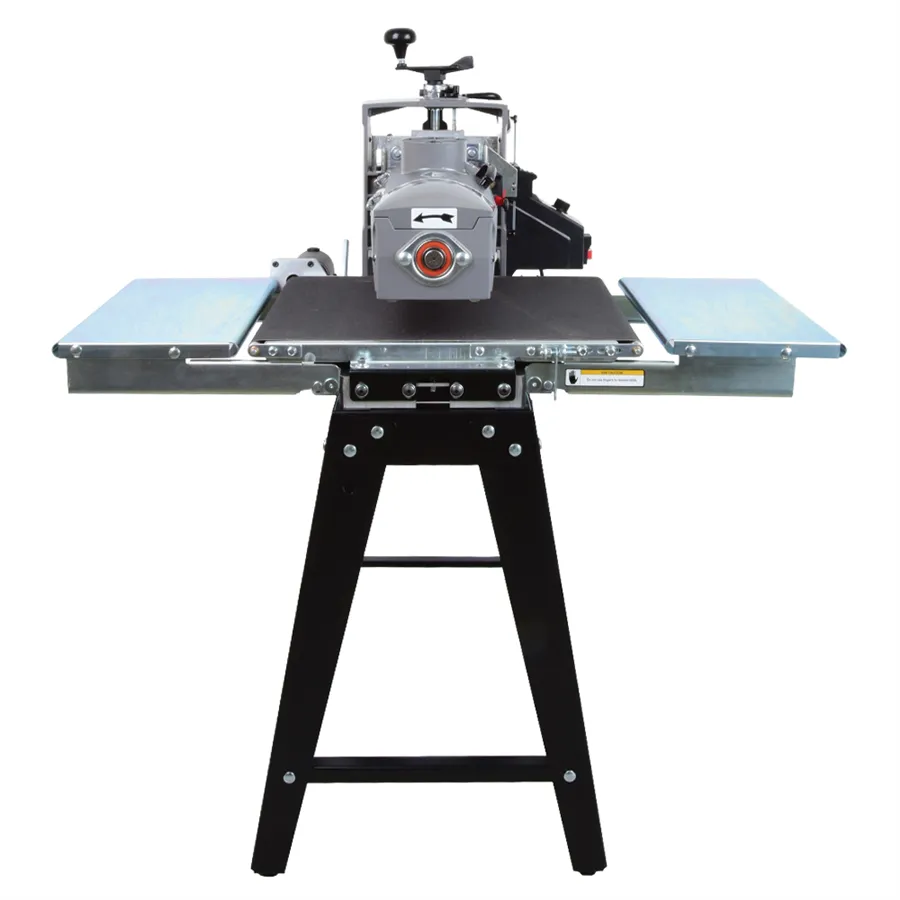

The additional folding table visible in the pictures is not included in the delivery!
