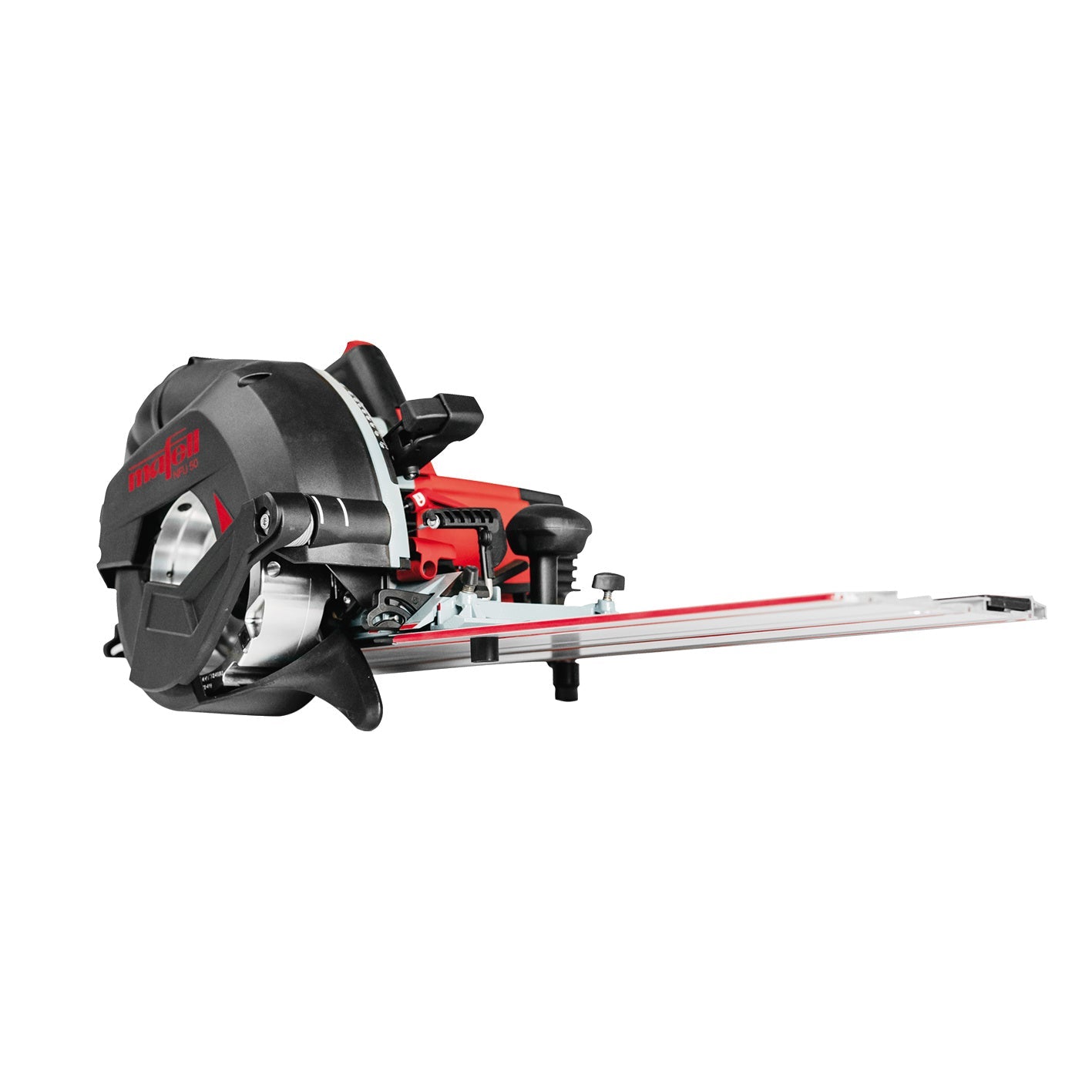

Mafell groove milling machine NFU 50 - 918701
Description
Description
The NFU 50 groove milling machine is versatile and a versatile all-rounder for a wide variety of milling operations in timber construction. A wide range of special accessories expands the possibilities for daily work.
The NFU 50's design features extremely robust, high-quality, and precisely manufactured components, such as the lightweight magnesium die-cast housing and the shock-resistant, glass-fiber-reinforced plastic parts. In addition, sophisticated details help you withstand tough work conditions.
AREA OF APPLICATION
- Longitudinal and transverse grooves
- Adjusting boards (guiding device)
- Fillings in the timber frame or inserted ceilings
- Inclined grooves up to 45°
- cones
- Material use e.g.: solid wood, panel materials
ADVANTAGES
- The rotatable 58 mm extraction nozzle for large quantities of chips can be positioned using a locking function.
- The 2-in-1 function allows you to adjust the milling depth quickly and easily.
- The hydraulic brake stops the tool within 3 seconds. The flashing LED light signals to the user that the milling tool is still rotating.
- With a single push of a button, the NFU can be detached from the cross-cutting rail and used freehand or on the guide rail.
SCOPE OF DELIVERY
- 1 milling head, Ø 163 x 60 mm; Order No. 091901
- 1 position indicator NFU-PA; Order No. 207467
- 1 side stop SA 625; Order No. 207183
- 1 rip fence; Order No. 207468
- 1 guide device L, max. cutting length 370 mm; Order No. 208171
- 1 screwdriver SW 6; Order No. 207496
- 1 wrench, Torx T 15; Order No. 093274
- 1 connection cable 10 m
TECHNICAL DATA
| Nominal voltage | 230 V |
| Nominal power | 2300 W |
| Milling depth without rail at 0° | 0 - 50 mm |
| Milling depth with rail at 0° | 0 - 44 mm |
| Swivel range | 0 - 45 ° |
| Nominal idle speed | 5900 rpm |
| Weight with rail | 9.4 kg |
| Dimensions (W x L x H) with guide device L | 370 x 810 x 280 mm |
| Milling length with guide device L | 370 mm |
