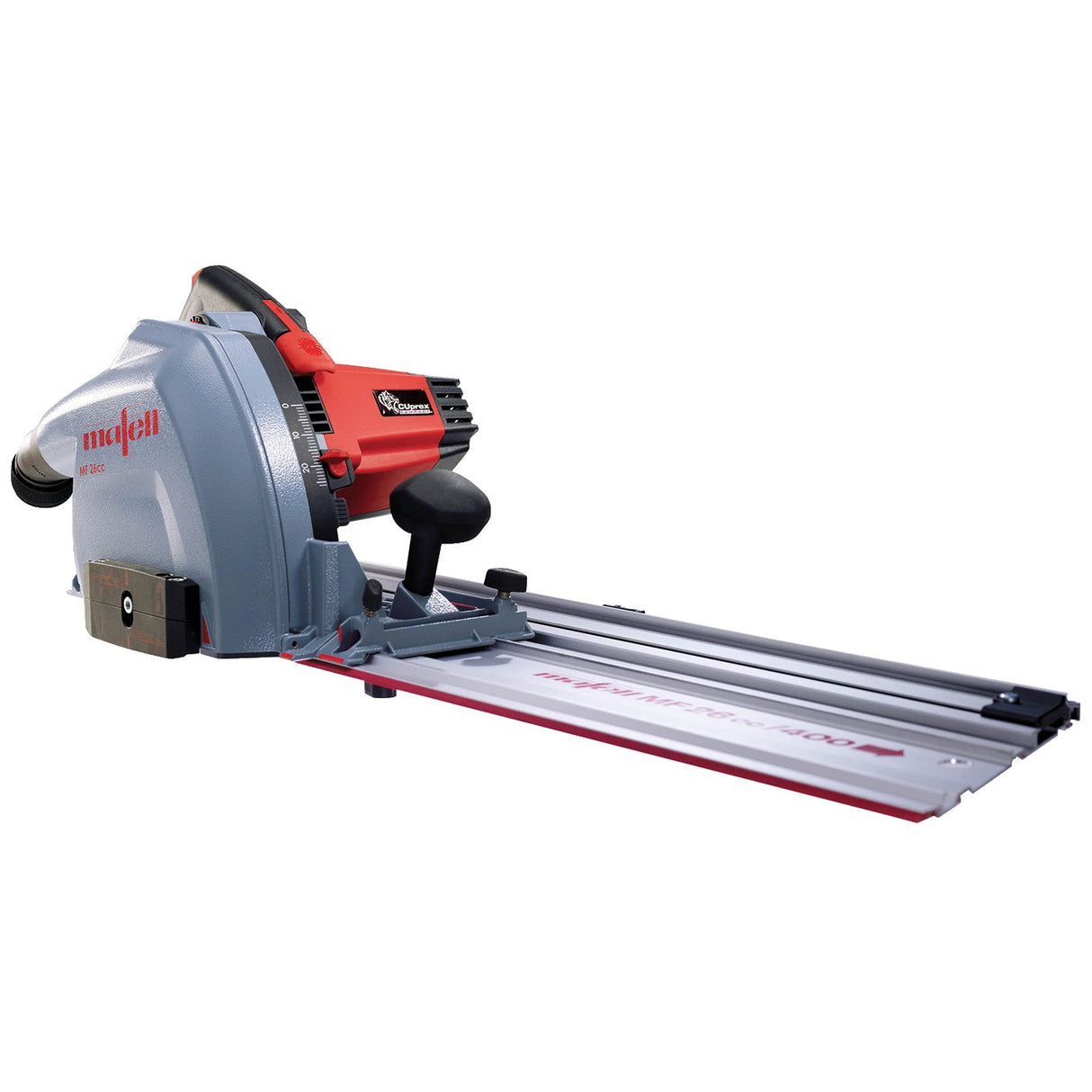

Mafell Multi-Mill MF 26 cc / 400 in carrying case - 917804
Description
Description
- With guide device M
- One machine - five different applications
- in a carrying case
The design of the MF 26 cc impresses with extremely robust, high-quality and precisely manufactured components, such as the lightweight magnesium die-cast housing or the shock-resistant, glass-fiber reinforced plastic parts.
The MF 26 cc multi-router can also be used with a saw blade up to 26 mm on the guide rail.
What applies to sawing also applies to milling. True milling precision is best achieved with the F guide rail system.
Continuously variable speed adjustment up to 6250 rpm. For milling, sawing, and slotting in a wide variety of materials.
AREA OF APPLICATION
- Longitudinal and transverse grooves
- V-grooves
- Folding and bending technology for plasterboard
- Milling and edging technology for aluminum composite panels
- Materials used: solid wood, MDF, plasterboard, aluminum composite panels
ADVANTAGES

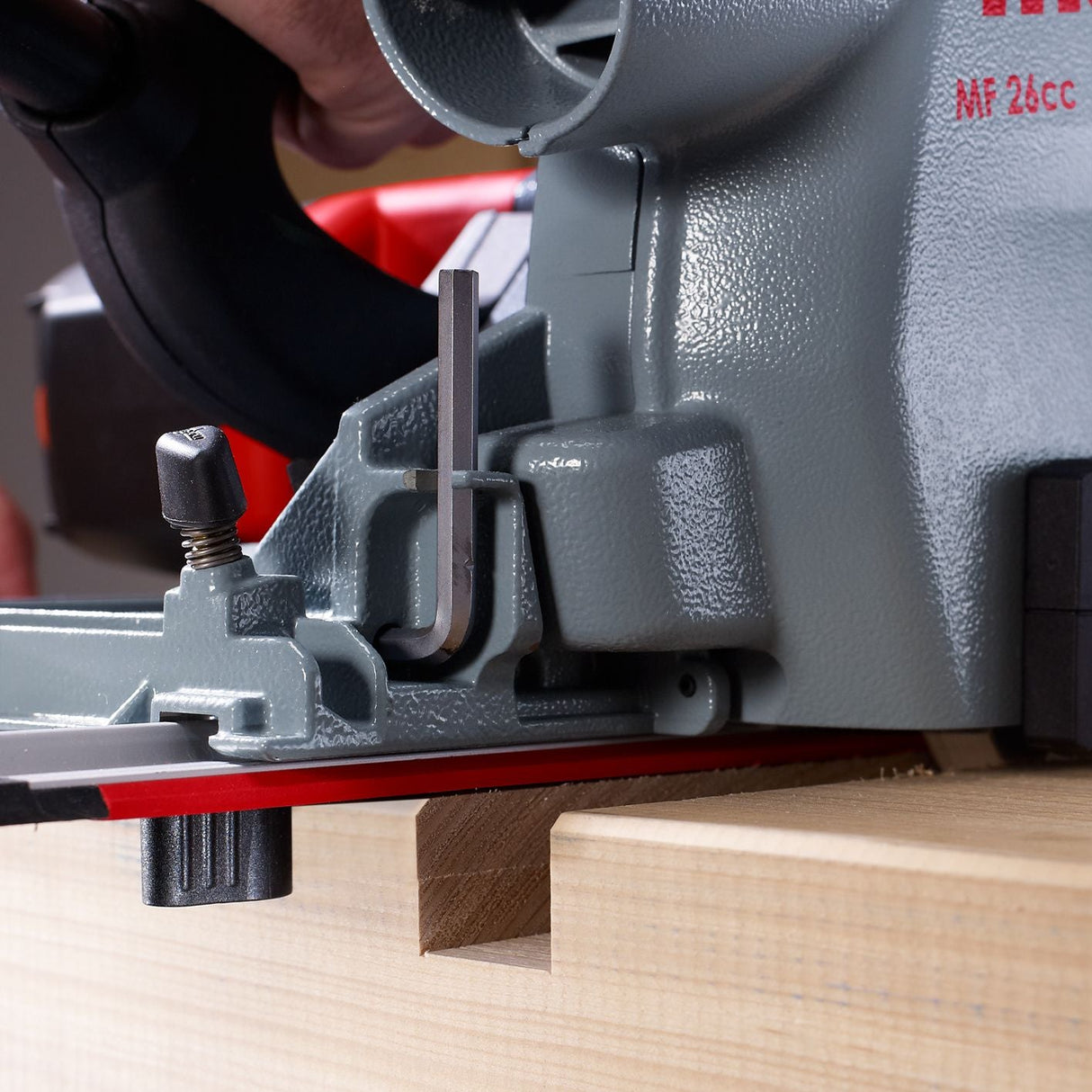

- Using an additional adjusting screw, the milling depth can be adjusted to a scale of 1/10 millimeters.
- Additional precision safety - the glider runs on the material surface, thus preventing tipping and giving the MF 26 cc a secure position even when used on the F guide rail.
- Opening the guard is done with just one hand movement. This automatically activates the power lock and the saw blade lock.
- With or without a rail – simply turn the pointer to display the exact depth on the milling depth scale.
- The groove in the base plate allows the use of the guide devices available as special accessories.
SCOPE OF DELIVERY
- 1 HM saw blade 120 x 1.2/1.8 x 20 mm, 24 teeth, WZ, for universal use in wood; Order No. 092558
- 1 adjustable groove cutter MF-VN 25; Order No. 206074
- 1 rip fence; Order No. 206038
- 1 guide device M, max. cutting length 400 mm; Order No. 208170
- 1 connection cable 4 m; Order No. 087323
TECHNICAL DATA
| Milling depth | 0 - 26 mm |
| Nominal idle speed | 3600 - 6250 rpm |
| Nominal power | 1400 W |
| Universal motor | 230 V / 50 Hz |
| Weight | 6.3 kg |
