Mafell multi milling machine MF 26 cc AF-MAX "aluminum composi...
Description
Description
- With aluminum composite cutter MF-AF 90
- Transport and storage box T-MAX

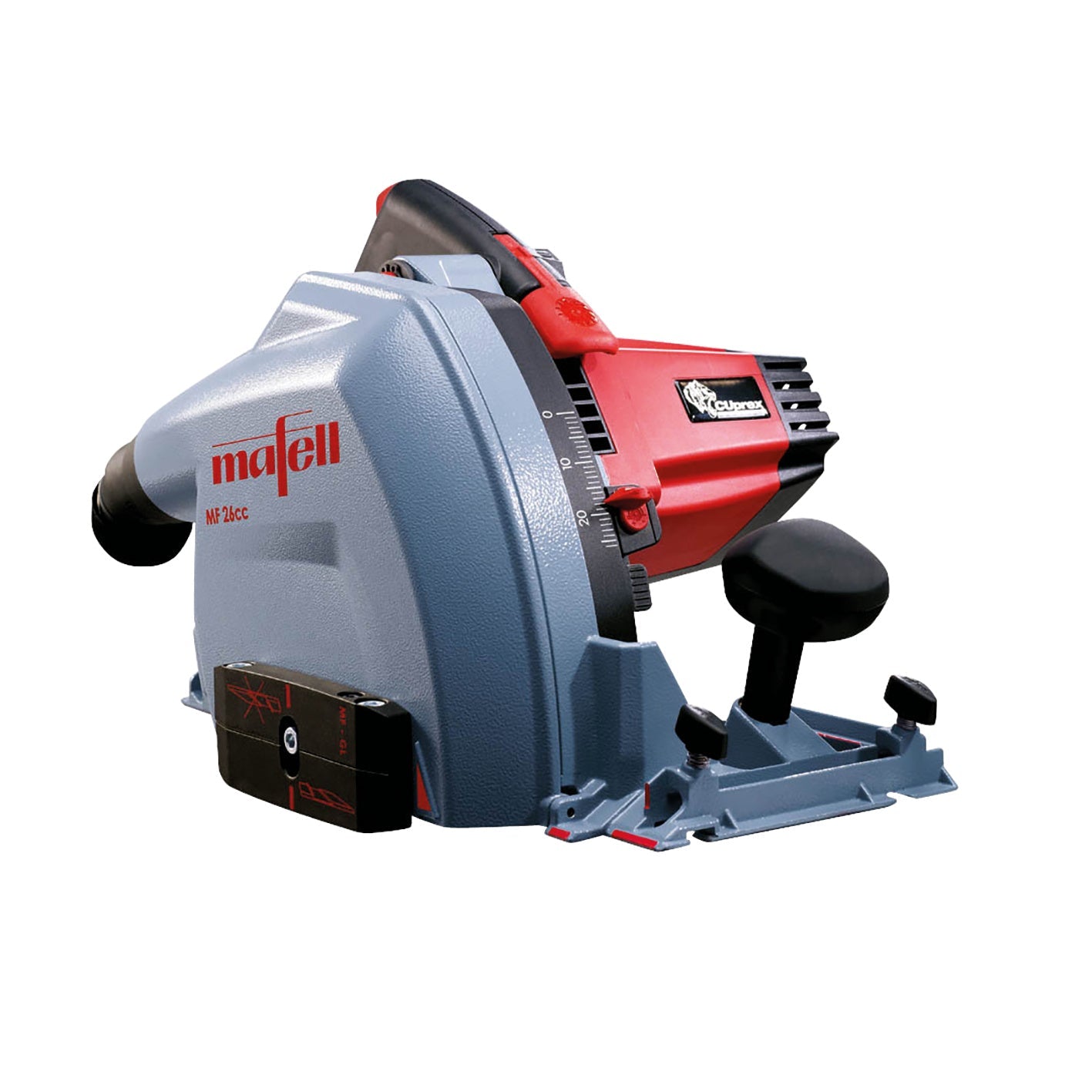

The design of the MF 26 cc impresses with extremely robust, high-quality and precisely manufactured components, such as the lightweight magnesium die-cast housing or the shock-resistant, glass-fiber reinforced plastic parts.
The MF 26 cc multi-router can also be used with a saw blade up to 26 mm on the guide rail.
What applies to sawing also applies to milling. True milling precision is best achieved with the F guide rail system.
Continuously variable speed adjustment up to 6250 rpm. For milling, sawing, and slotting in a wide variety of materials.
AREA OF APPLICATION

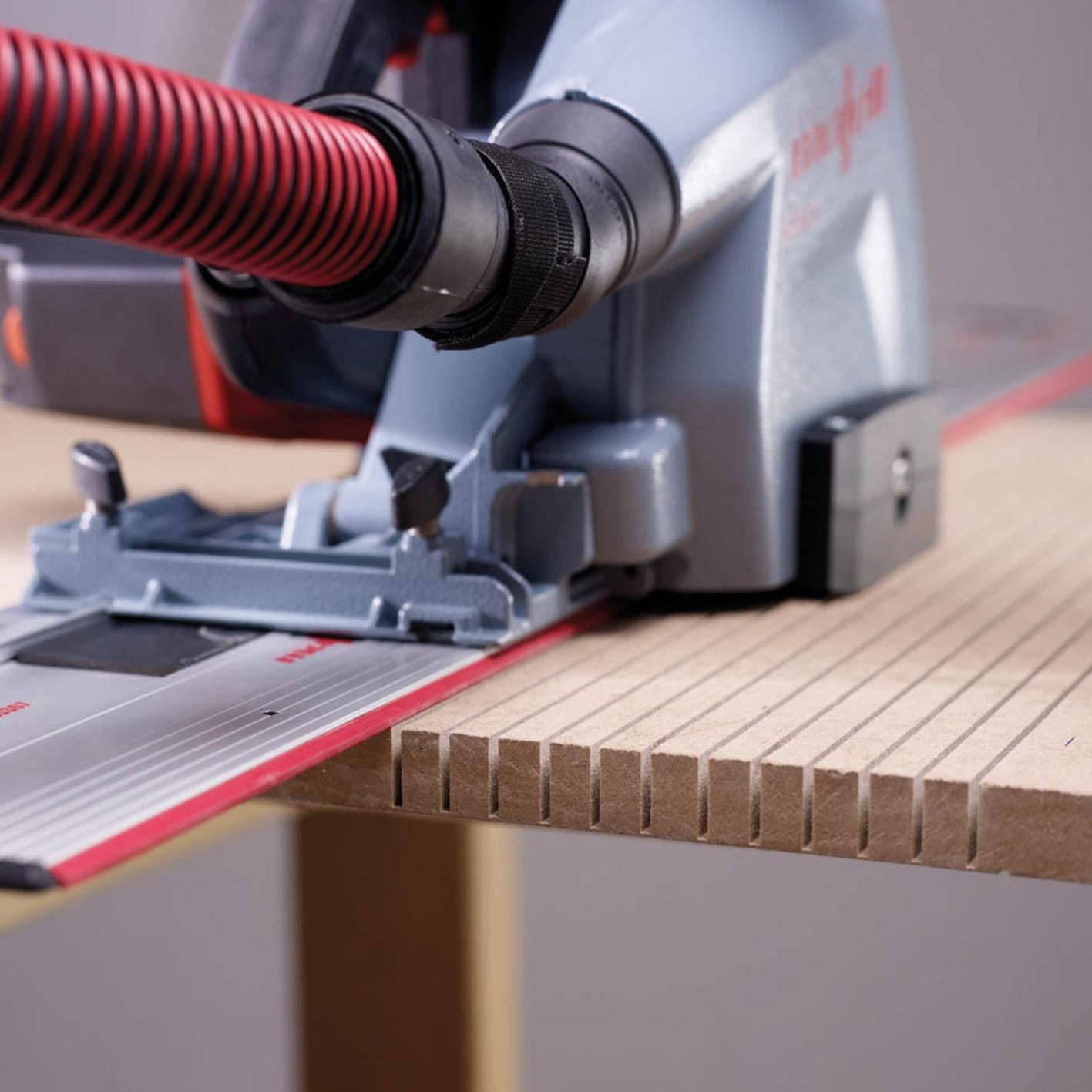

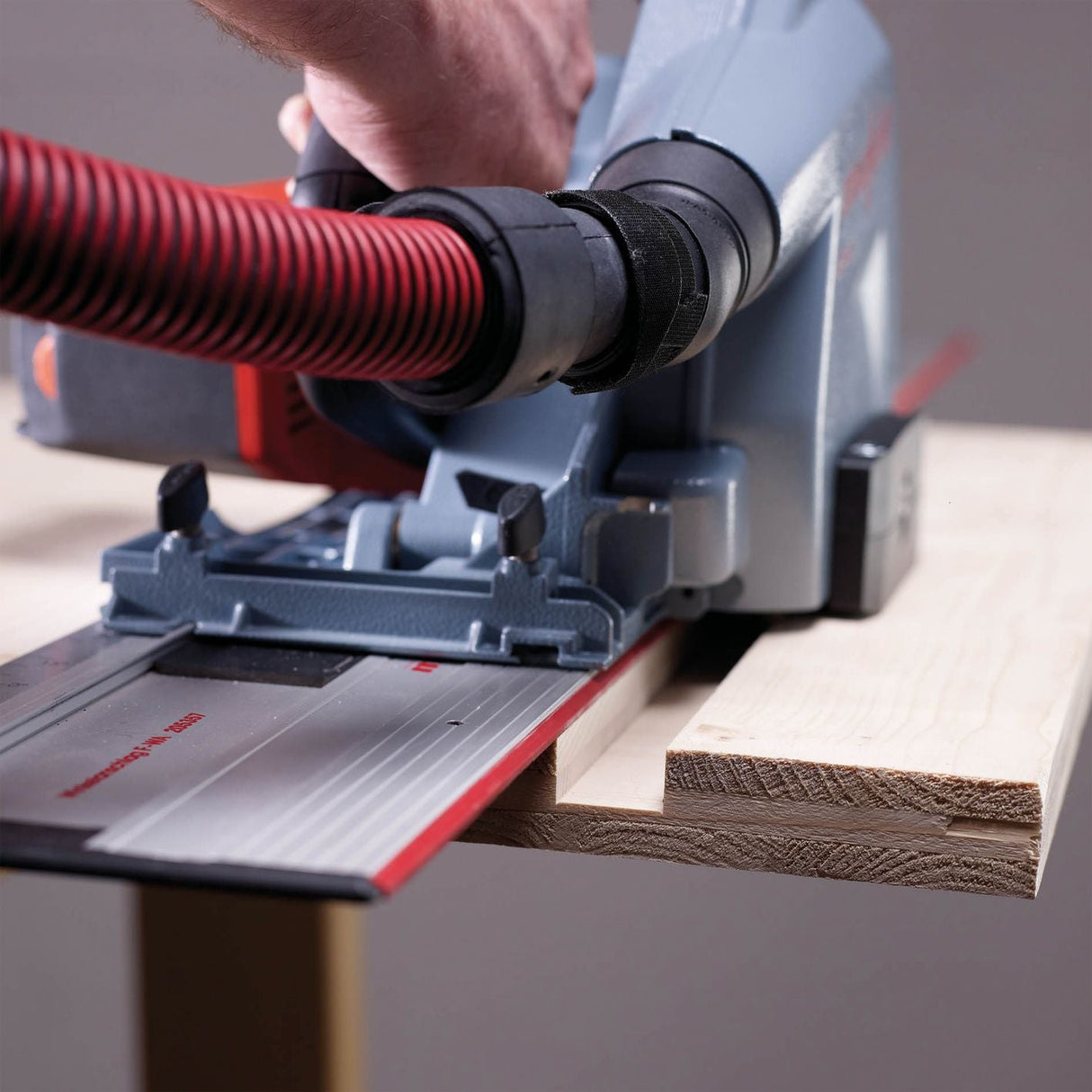

- Longitudinal and transverse grooves

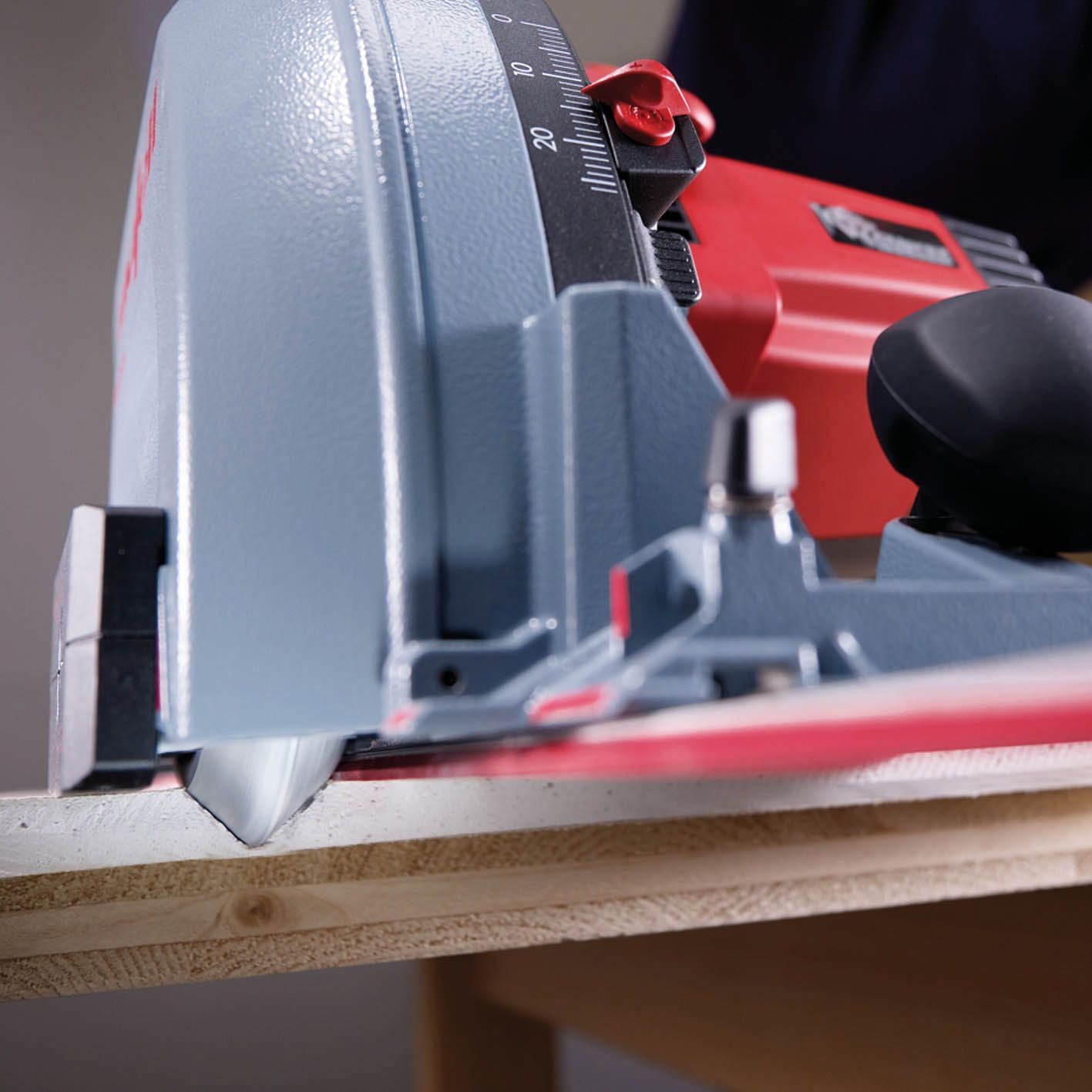

- V-grooves
- Folding and bending technology for plasterboard

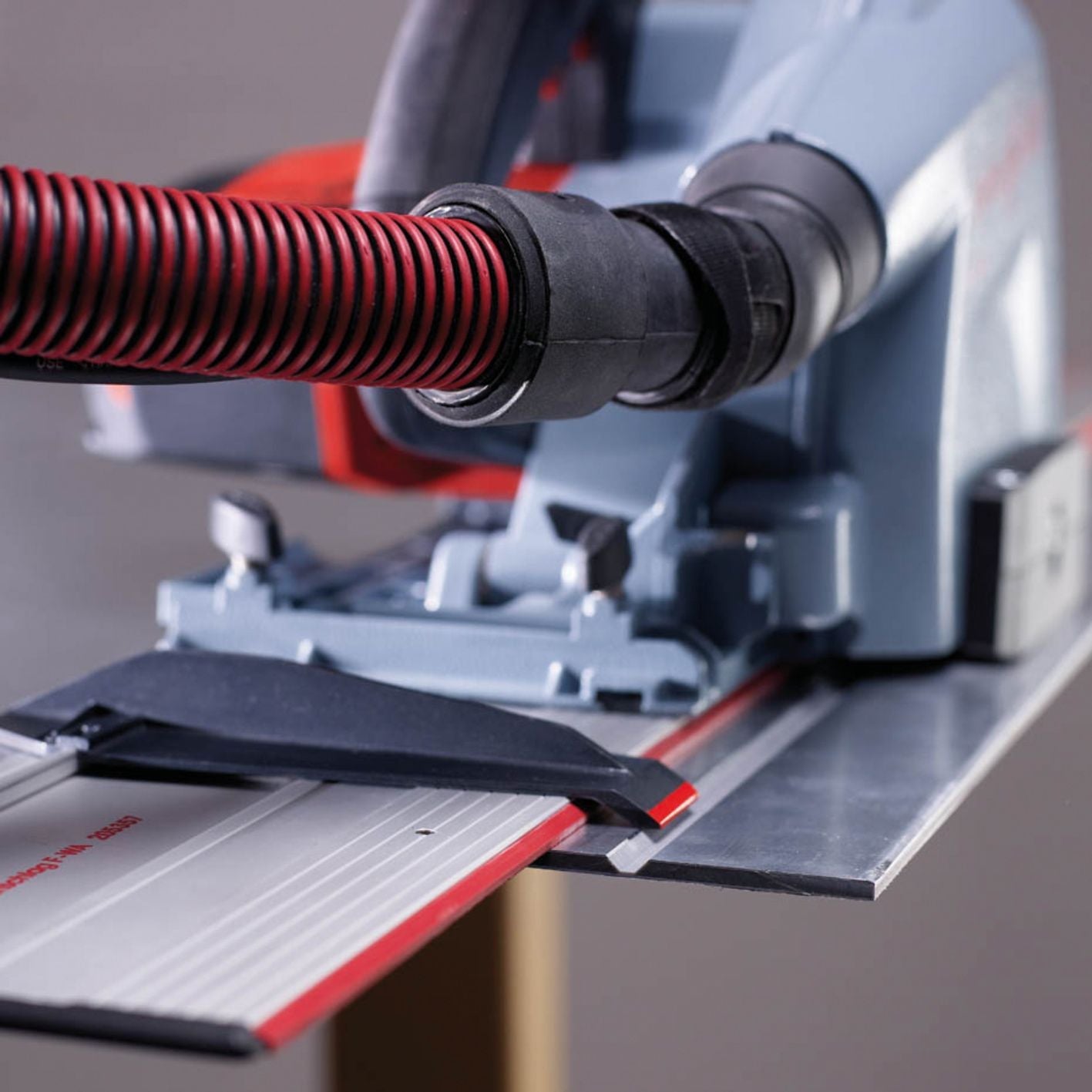

- Milling and edging technology for aluminum composite panels
- Materials used: solid wood, MDF, plasterboard, aluminum composite panels
ADVANTAGES
- Using an additional adjusting screw, the milling depth can be adjusted to a scale of 1/10 millimeters.
- Additional precision safety - the glider runs on the material surface, thus preventing tipping and giving the MF 26 cc a secure position even when used on the F guide rail.
- Opening the guard is done with just one hand movement. This automatically activates the power lock and the saw blade lock.
- With or without a rail – simply turn the pointer to display the exact depth on the milling depth scale.
- The groove in the base plate allows the use of the guide devices available as special accessories.
SCOPE OF DELIVERY
- 1 HM saw blade 120 x 1.2/1.8 x 20 mm, 40 teeth, FZ/TR, for fine cuts in wood; Order No. 092559
- 1 aluminum composite cutter MF-AF 90, for 90° V-grooves up to 8 mm milling depth (incl. 2 position indicators and 1 chip deflector); Order No. 206076
- 1 rip fence; Order No. 206038
- 1 connection cable 4 m; Order No. 087323
TECHNICAL DATA
| Milling depth | 0 - 26 mm |
| Nominal idle speed | 3600 - 6250 rpm |
| Nominal power | 1400 W |
| Universal motor | 230 V / 50 Hz |
| Weight | 5 kg |
