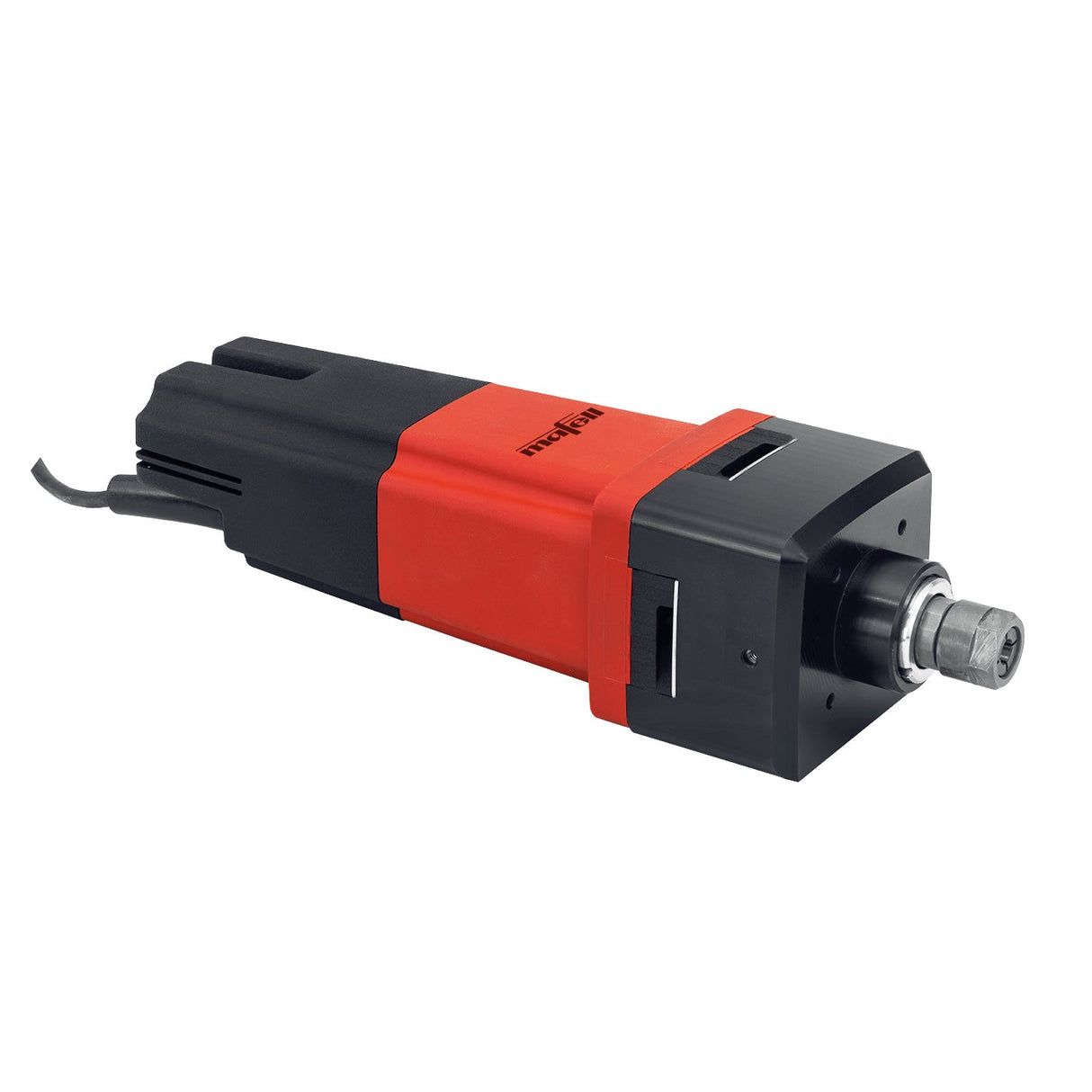

Mafell milling motor FM 1650 NC-LO - 9M1801
Description
Description
With the FM 1650 PV-LO, MAFELL has developed another milling motor "Made in Germany." The high quality standards and sophisticated details make the MAFELL milling motor the best partner in its performance class.
- Spindle lock
- External portal interface
- Made in Germany
- Overload detector with LED status display
The speed can be continuously adjusted to suit any application, either manually or via the portal interface. The digital electronics are also equipped with soft start, constant speed under load, idle speed reduction, and overload protection.
AREA OF APPLICATION
- Model making, mold making, advertising technology, engraving, jewelry, electronics, stonemasonry
- Ideal for portal milling machines, cutting tables, grinding devices and flexible shafts, drive motor for saw and milling tables
- For wood, metal, plastics, foam, polystyrene, stone
ADVANTAGES
- Duo-In: The speed can be continuously adjusted to suit any application, either manually or via the portal interface. Additional LED status indicator.
- The fastening is possible via the clamping neck or alternatively via a direct screw connection to the portal.
- MAFELL milling motors are manufactured in Oberndorf a. N. under the strictest quality controls. Before delivery, each milling motor undergoes a "run-in" in the test booth. This increases its service life and durability.
- Highest concentricity due to the delicate coordination of all components and the fact that the armature and spindle are made from one piece and balanced.
- The spindle can be locked using the push button or using an open-end wrench on the flats of the spindle.
- The labyrinth seal permanently protects the spindle and bearings from the smallest particles, dust and chips.
SCOPE OF DELIVERY
- 1 collet OZ 12.8 mm
- 1 open-end wrench
- 1 NC control cable M8 / 4-pin, 5 m
- 1 connection cable 4 m
TECHNICAL DATA
| Nominal power | 1650 W |
| Universal motor | 230 V / 50 Hz |
| Nominal idle speed | 4,000 - 23,000 rpm |
| NC connection | M8 / 4-pin |
| Power supply in NC mode | 8 - 56 V |
| External control | 0 - 10 V |
| Portal fastening (drilling holes) | 6 x M6 |
| clamping neck | 43 mm |
| Collet | 8 mm |
| Dimensions (L x W x H) | 346 x 98 x 86 mm |
| Sound pressure level dB (A) | 85 |
| Weight | 3.22 kg |
