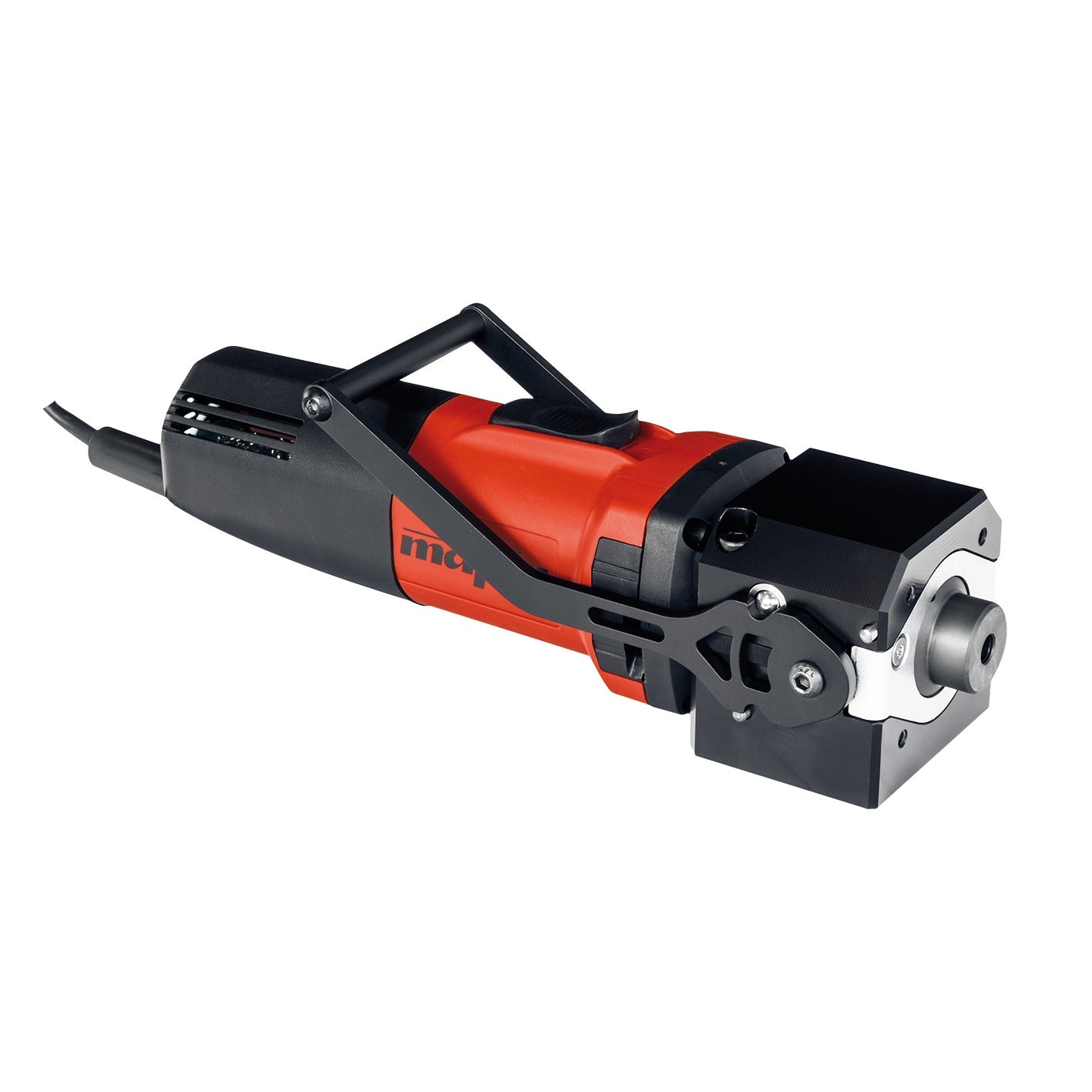

Mafell milling motor FM 1000 NC-WS - 9M1301

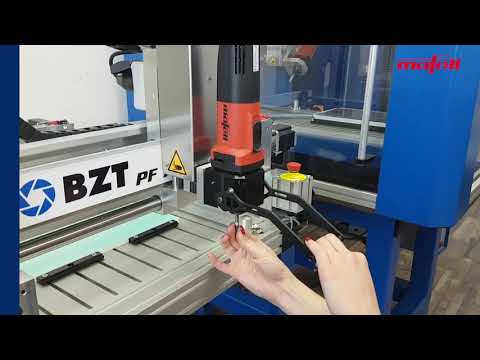

Produktvideo
Description
Description
With the FM 1000 NC-WS, MAFELL has developed another milling motor "Made in Germany." The high quality standards and sophisticated details make the MAFELL milling motor the best partner in its performance class.
- Extremely quiet
- Tool-free quick-release device
- Overload detector with LED status display
- External portal interface
- Made in Germany
The speed can be continuously adjusted to suit any application, either manually or via the portal interface. The digital electronics are also equipped with soft start, constant speed under load, idle speed reduction, and overload protection.
AREA OF APPLICATION
- Model making, mold making, advertising technology, engraving, jewelry, electronics, stonemasonry
- Ideal for gantry milling machines, cutting tables, grinding devices and flexible shafts
- For wood, metal, plastics, foam, polystyrene, stone
ADVANTAGES
- Duo-In: The speed can be continuously adjusted to suit any application, either manually or via the portal interface. Additional LED status indicator.
- The Rapidfix cable enables quick and easy connection in the portal.
- The sound pressure level of the FM 1000 NC-WS is only 74 dB (A), making it extremely quiet.
- MAFELL milling motors are manufactured in Oberndorf a. N. under the strictest quality controls. Before delivery, each milling motor undergoes a "run-in" in the test booth. This increases its service life and durability.
- Maximum concentricity due to the delicate coordination of all components, such as the double-bearing spindle for absorbing axial forces and the innovative, tool-free quick-clamping device.
- The “patent pending” tool-free quick-clamping device enables convenient and quick insertion of different milling cutters.
SCOPE OF DELIVERY
- 1 NC control cable M8 / 4-pin, 5 m
- 1 cable 0.75 + 4 m
TECHNICAL DATA
| Nominal power | 1,000 W |
| Universal motor | 230 V / 50 Hz |
| Nominal idle speed | 4,000 - 25,000 rpm |
| NC connection | M8 / 4-pin |
| Power supply in NC mode | 8 - 56 V |
| External control | 0 - 10 V |
| Dimensions (L x W x H) | 280 x 92 x 85 mm |
| Tool holder Ø | 8 mm |
| Sound pressure level dB (A) | 74 |
| Portal fastening (drilling holes) | 6 x M6 |
| Weight | 2.8 kg |
