IGM mobile thickness planer with spiral shaft, width: 330mm

probably the end of September, the manufacturer announced a delivery delay several times and open quantities are undelivered.

with spiral knife shaft

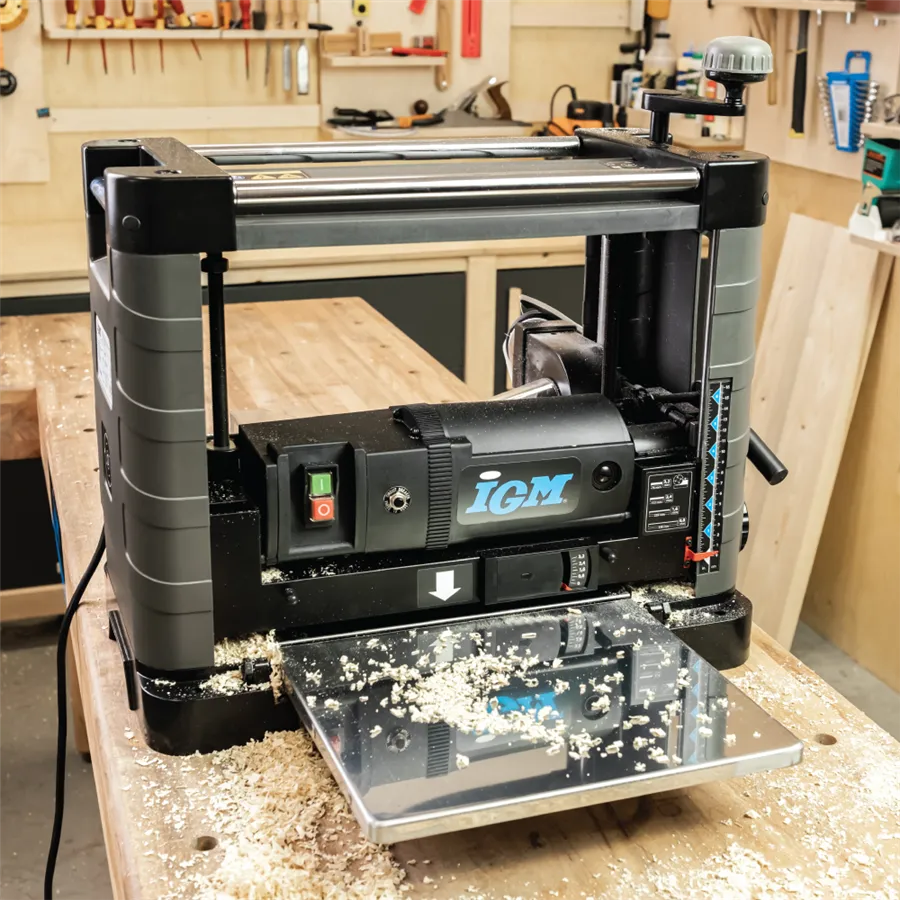

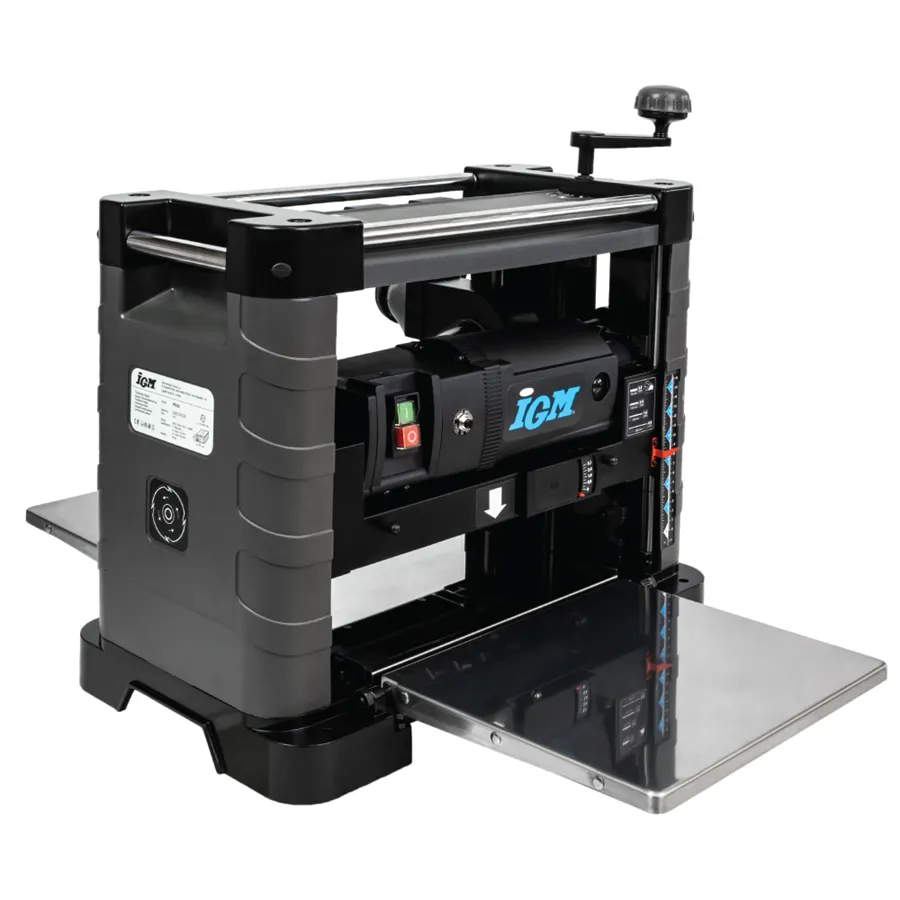

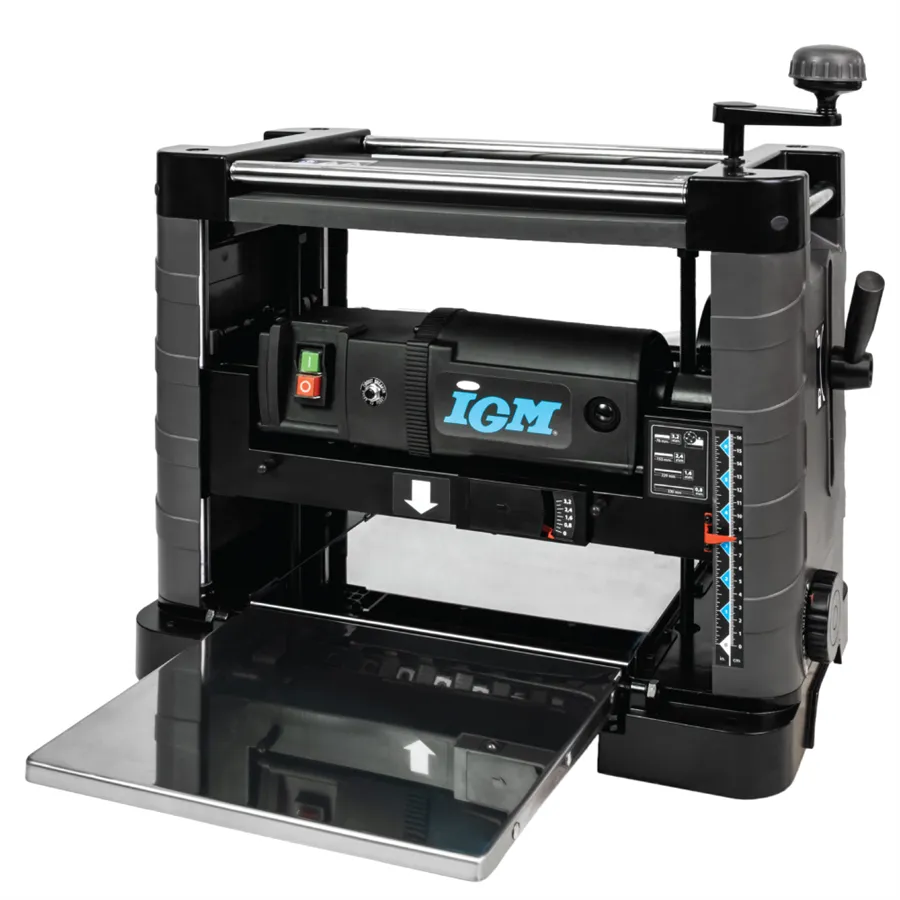

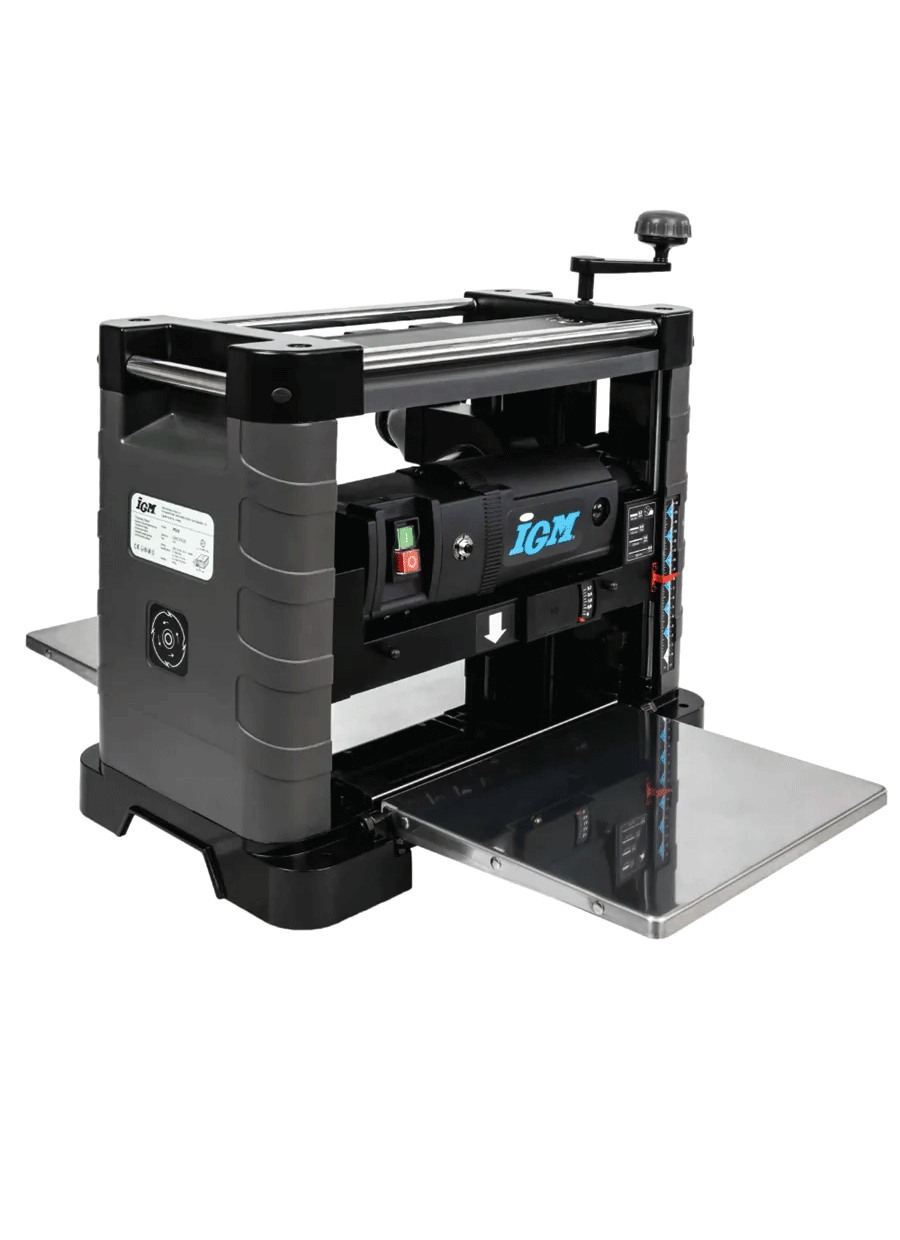

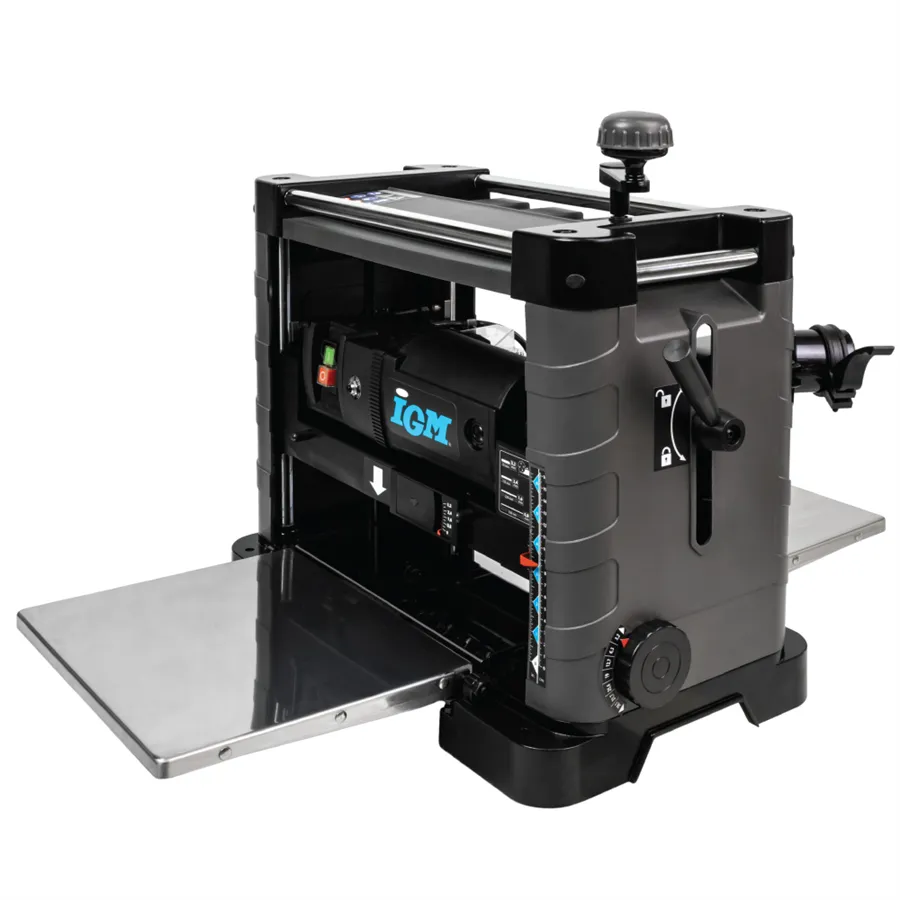

mobile thickness planer

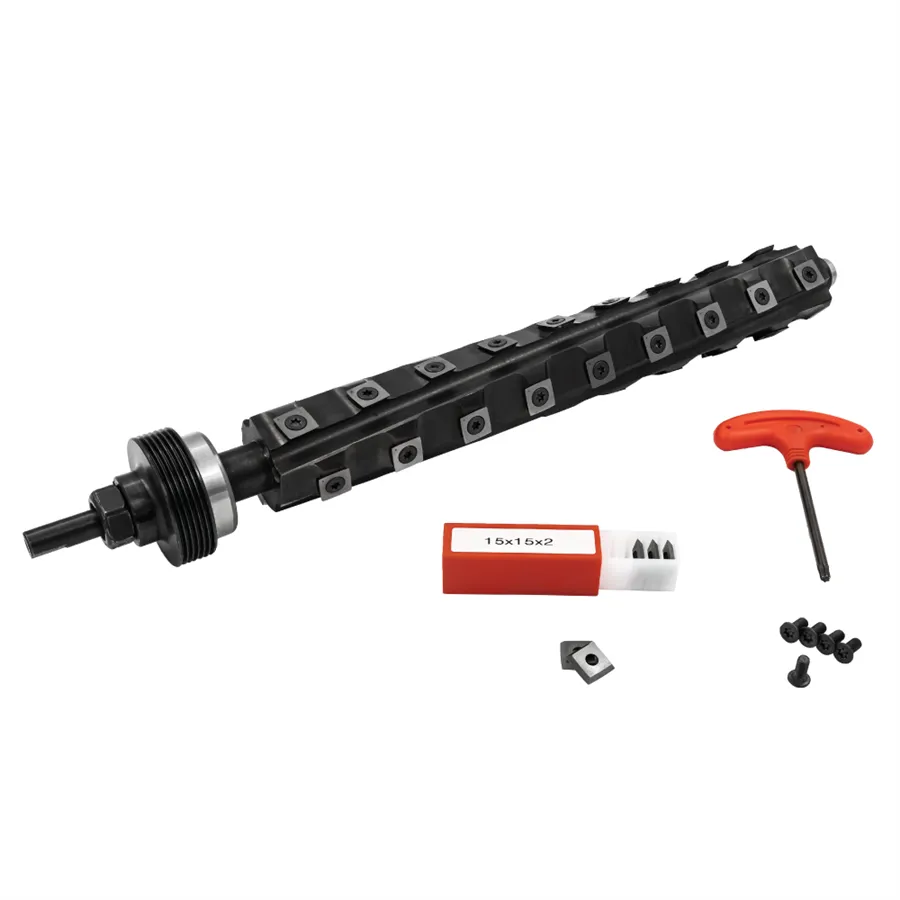

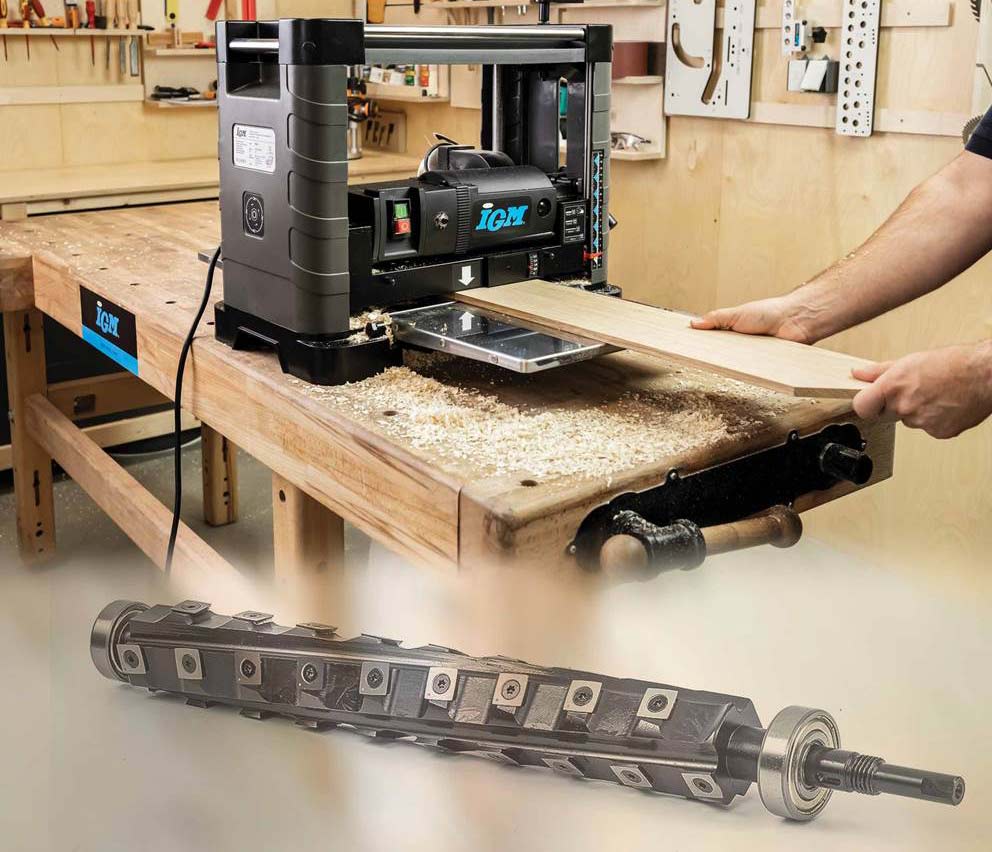

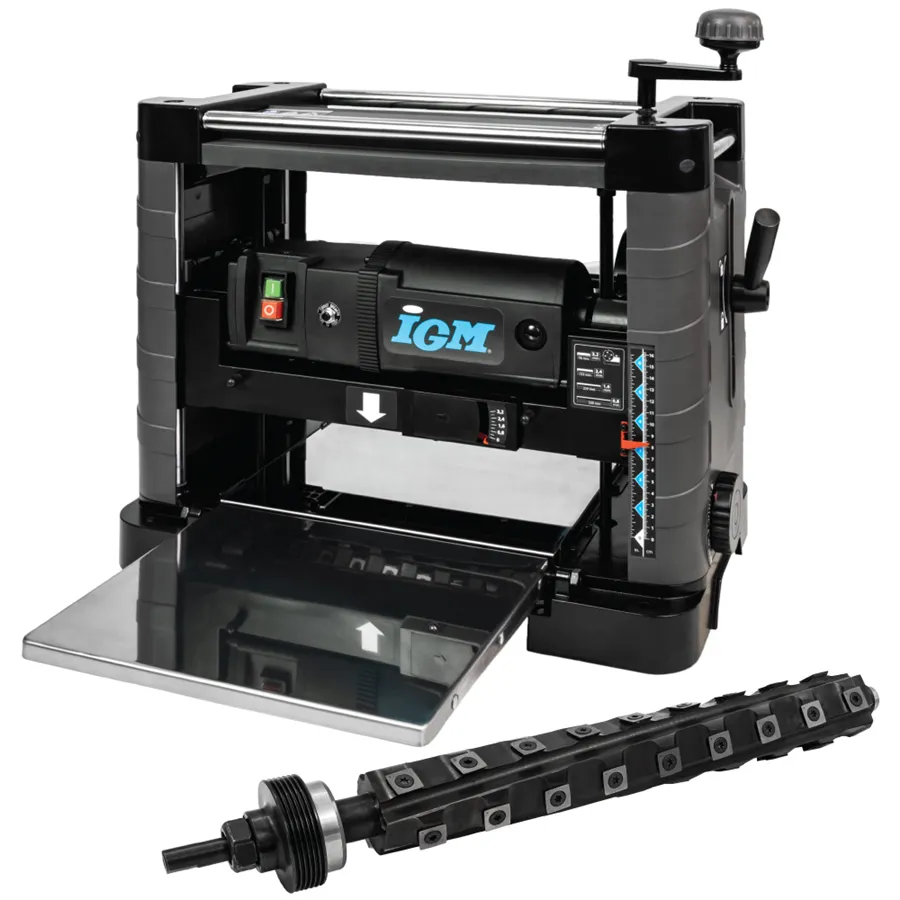

The first mobile thickness planer with a spiral cutter head equipped with replaceable carbide knives is now available on the European market. The precision-engineered spiral cutter head features 36 carbide knives arranged in four spirals to ensure maximum cleanliness and processing efficiency. This spiral head allows even very hard and exotic woods to be planed effortlessly and extremely cleanly without splitting the wood crosswise. The result is a much smoother surface than after processing with conventional knives.

The carbide blades are many times more durable than traditional HSS planer blades and can be rotated up to four times without the need for replacement or lengthy drum sharpening. Additionally, the machine features an integrated fan and dust bag to efficiently remove sawdust from the cylinder. Of course, the machine can also be connected to an industrial vacuum cleaner or extraction system.

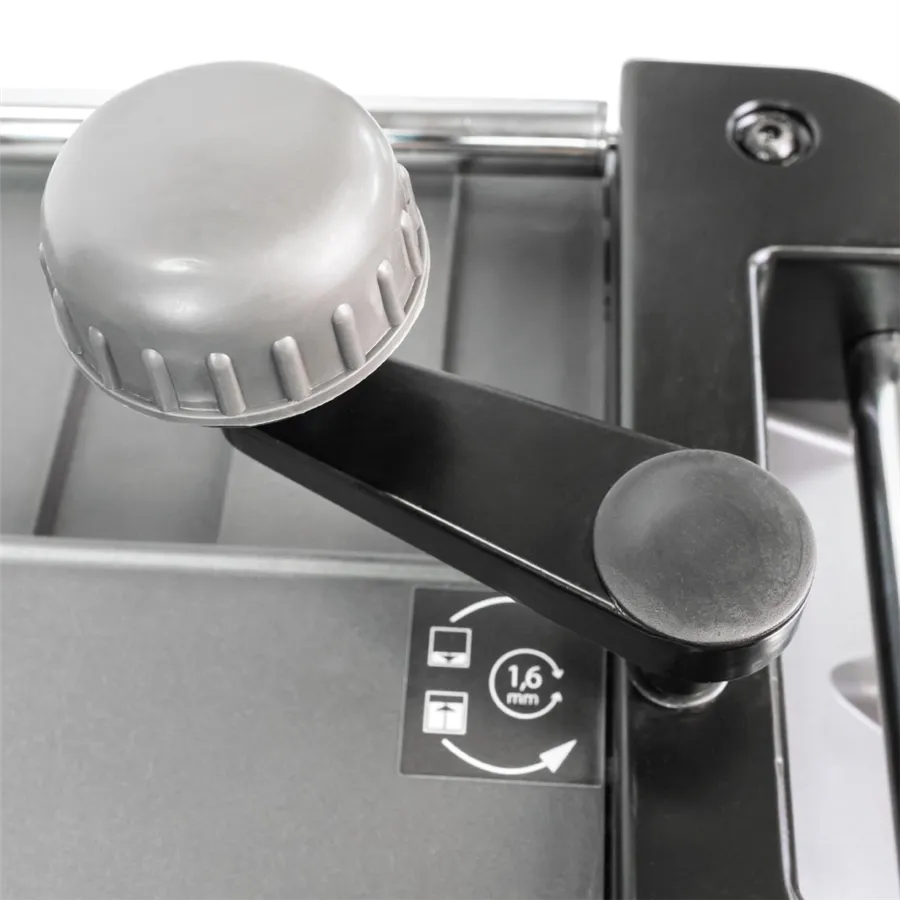

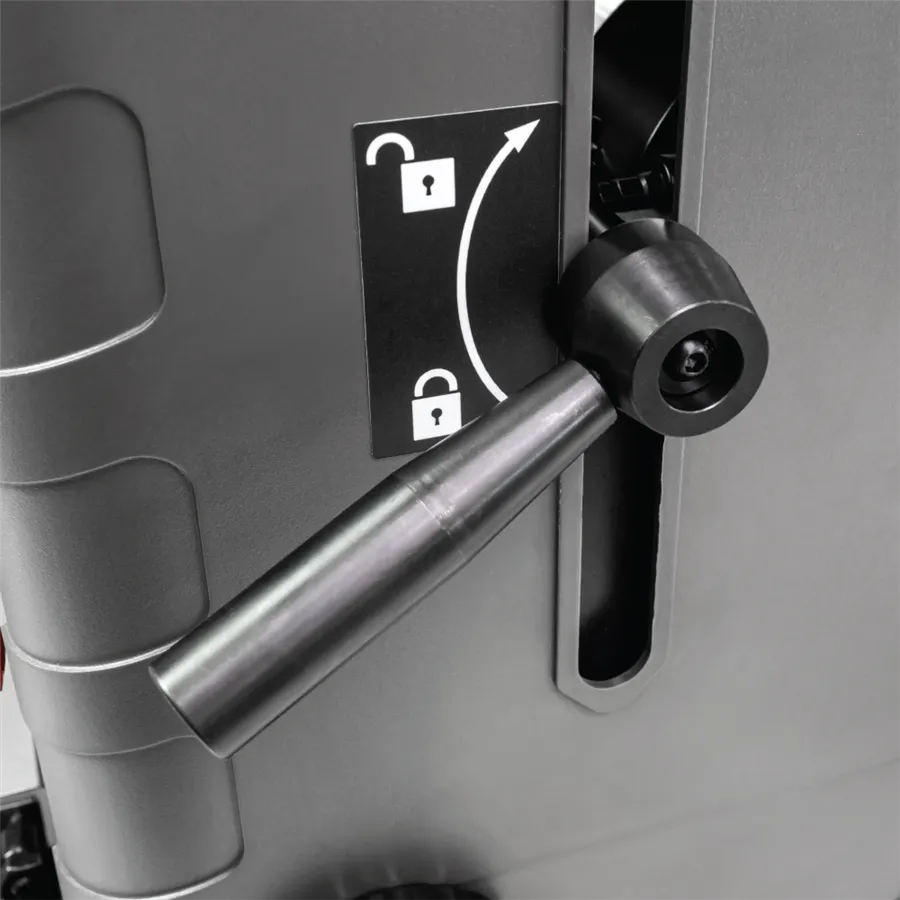

To ensure maximum precision, the set height is lockable. For maximum work safety, the machine is equipped with rubberized feed rollers that securely hold and move the workpiece, while steel hooks in front of the roller prevent kickback. The powerful motor is also equipped with overload protection and restart protection in the event of a power failure.

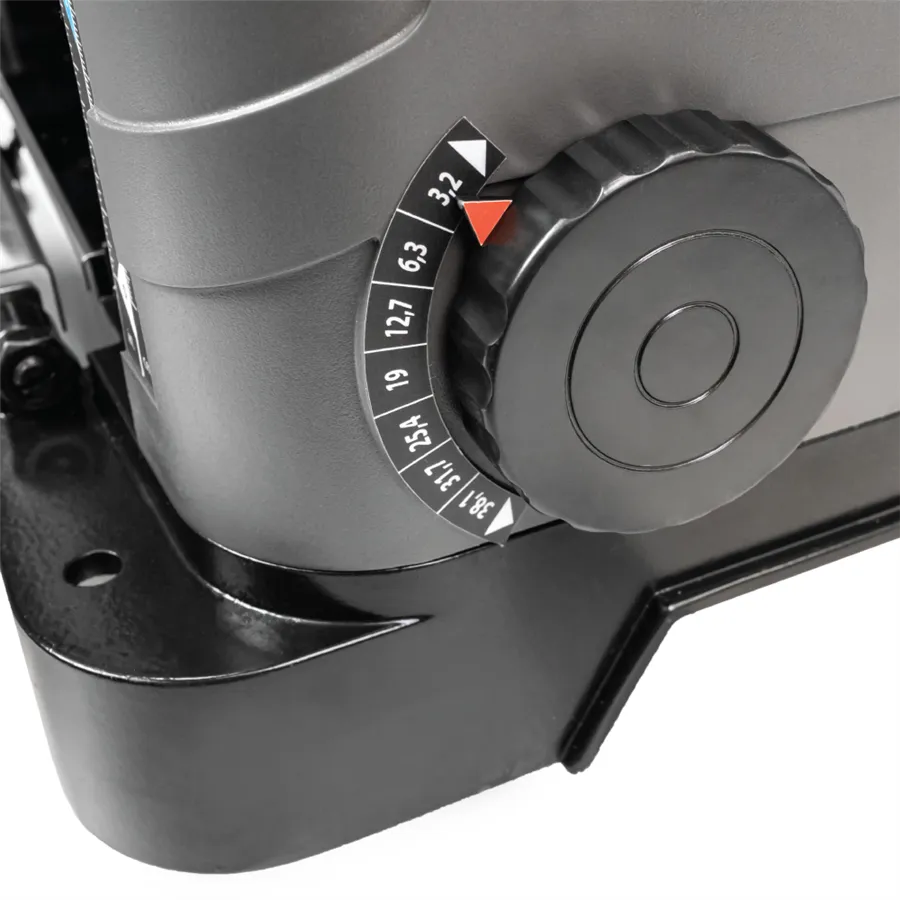

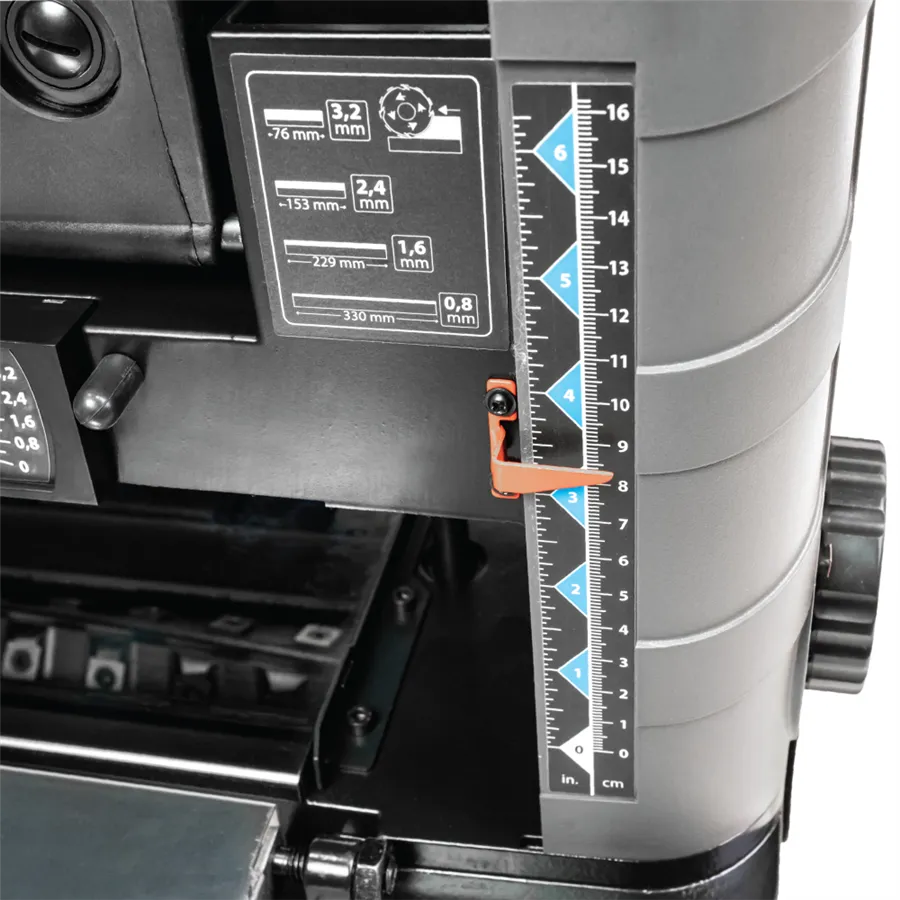

The side depth stop allows easy setup of a larger series at the same height, the depth stop is adjustable in 7 positions from 3.2 mm to 38 mm.

• Innovative design and powerful engine
• Chip removal of up to 2.5 mm
• IN & OUT TABLE
• Double knife cylinder with double-sided knives

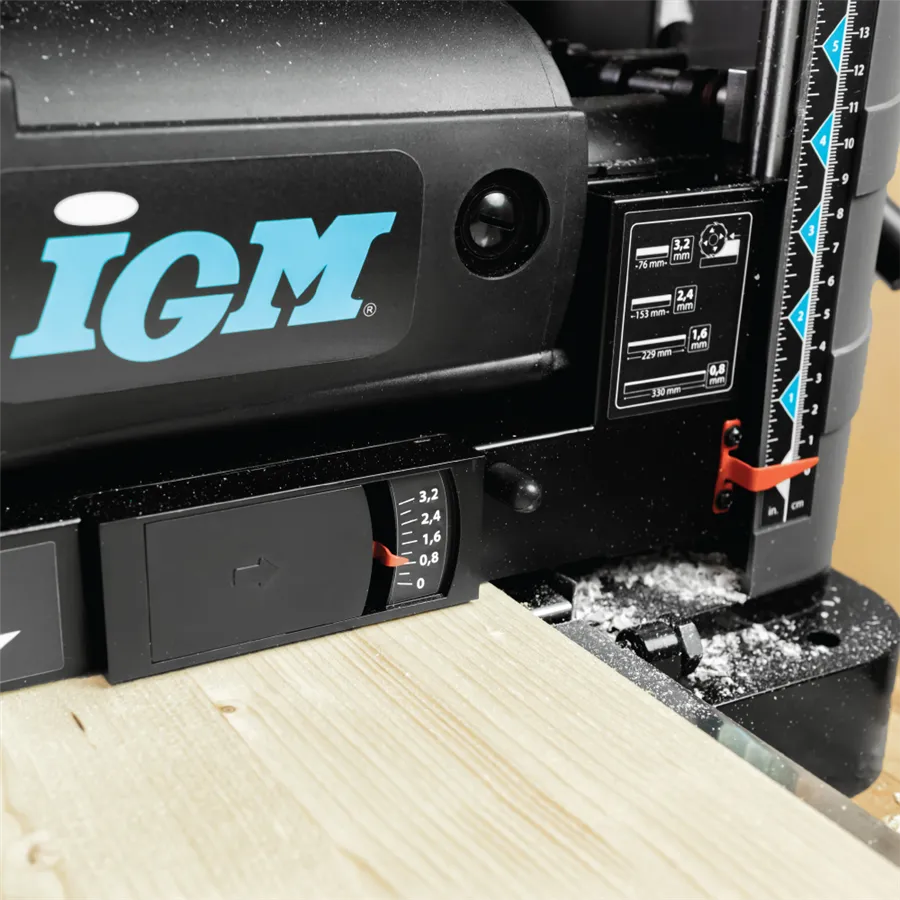

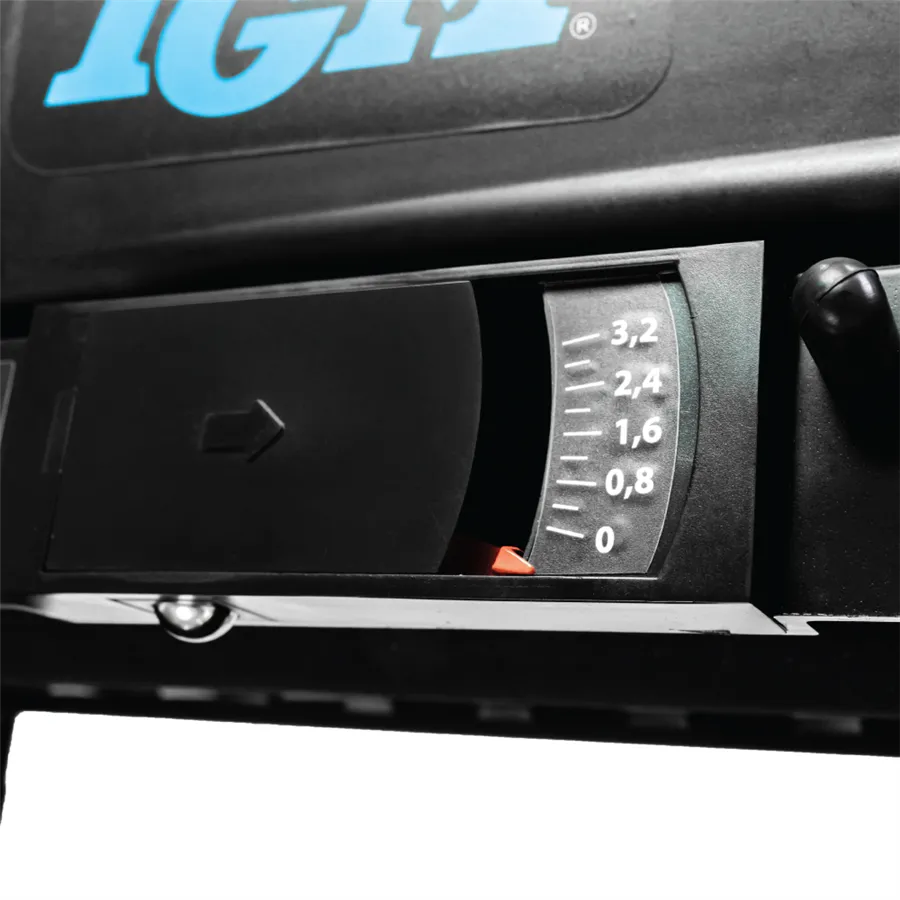

• Indicator shows the material removal on the front of the machine.
• Planer shaft with reversible knife

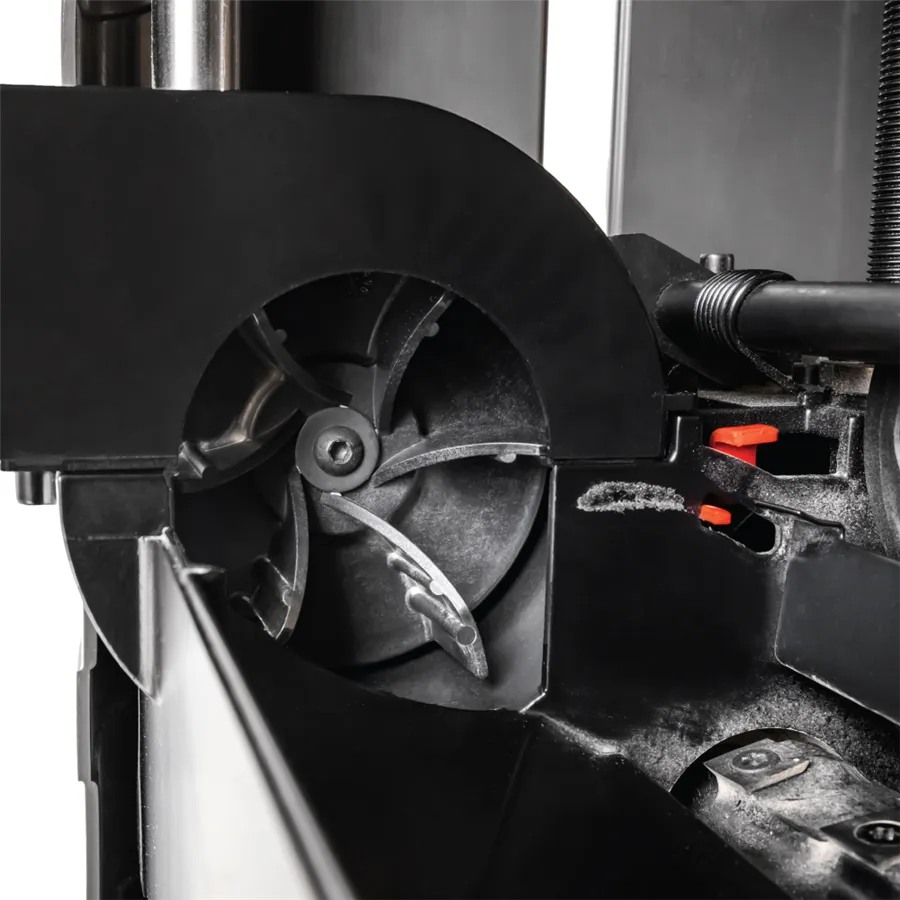

• No extraction system required thanks to the integrated fan for removing sawdust from the planing roller
• Depth stop with seven positions for repeated thicknessing at the same height
• Maximum part width up to 330 mm

TECHNICAL DETAILS

• Recommended use: Craftsmen
• Input power (230 V): 1.8 kW
• Roller speed: 9,000 rpm.
• Cylinder diameter: 46 mm
• Number of knives in the cylinder: 36 pieces
• Knife size: 15x15x2.5mm, R=150
• Feed speed: 7.9 m/min.
• Chip removal: 3.2 mm
• Planing width max.: 330 mm
• Max. part thickness: 153 mm

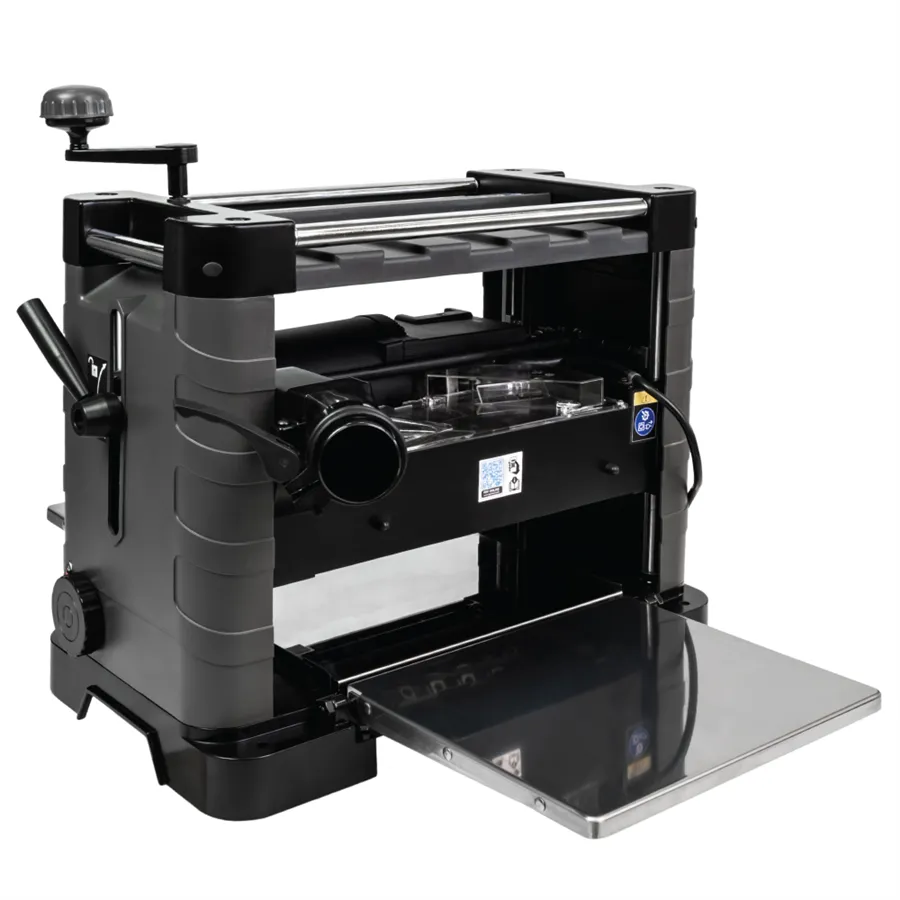

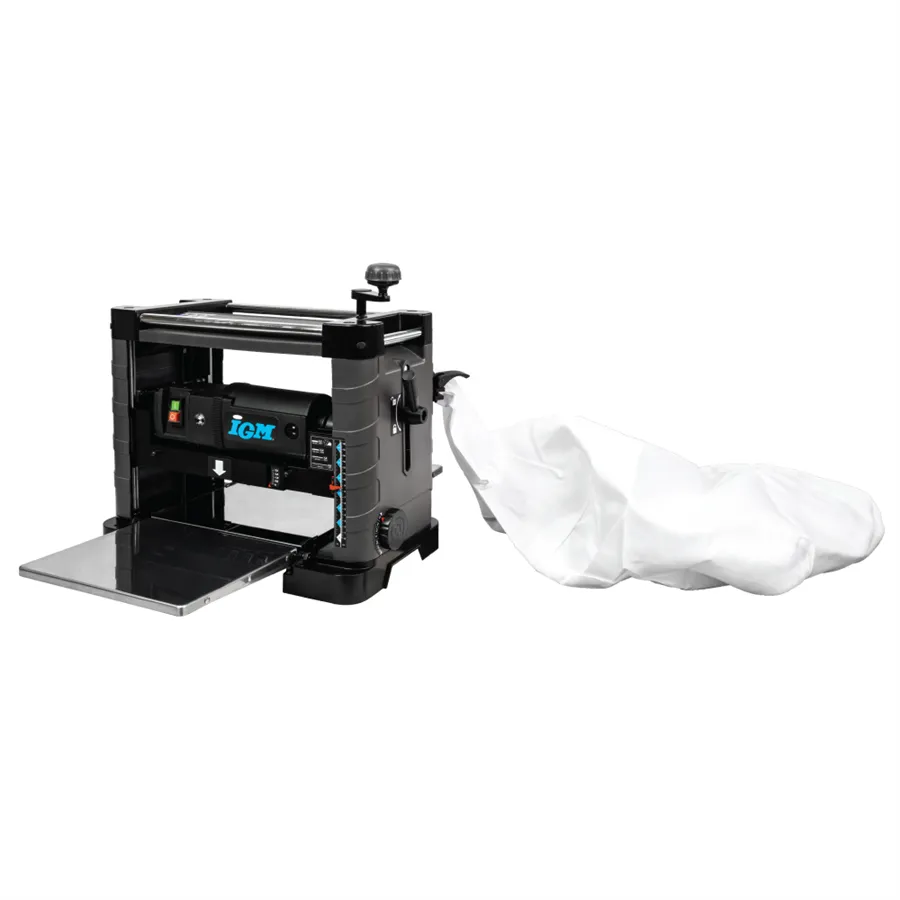

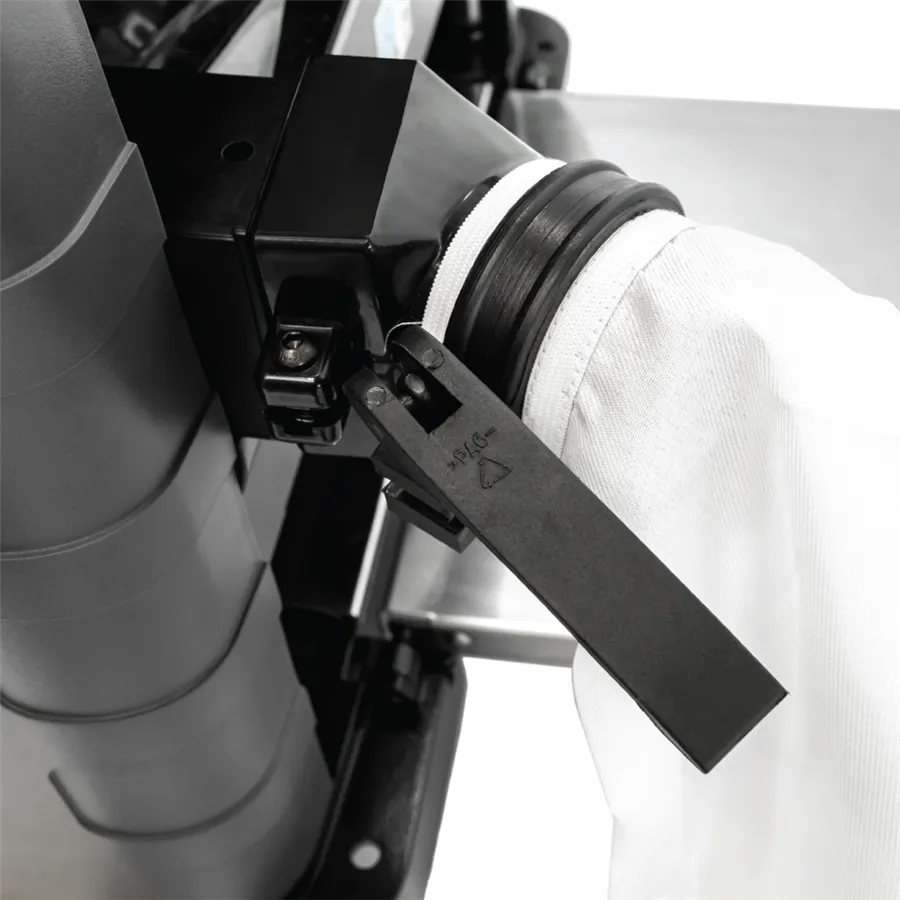

• Extraction: integrated fan, 50 mm nozzle for extraction or fabric bag
• Length x Width x Height: 850 x 588 x 565 mm
• Weight: 34 kg
• Transport weight: 39 kg

SCOPE OF DELIVERY

• 1 set of double-sided planer knives (in one cylinder)
• Magnetic holder for planer knives
• Tools for replacing planer blades
• 36 carbide knives (in cylinder)
• 10 replacement carbide blades
• Waste bags for sawdust and dust
• Connection set for waste bags
• Torx key for carbide blade replacement (TX25)

SUITABLE ACCESSORIES

Replacement carbide blade
