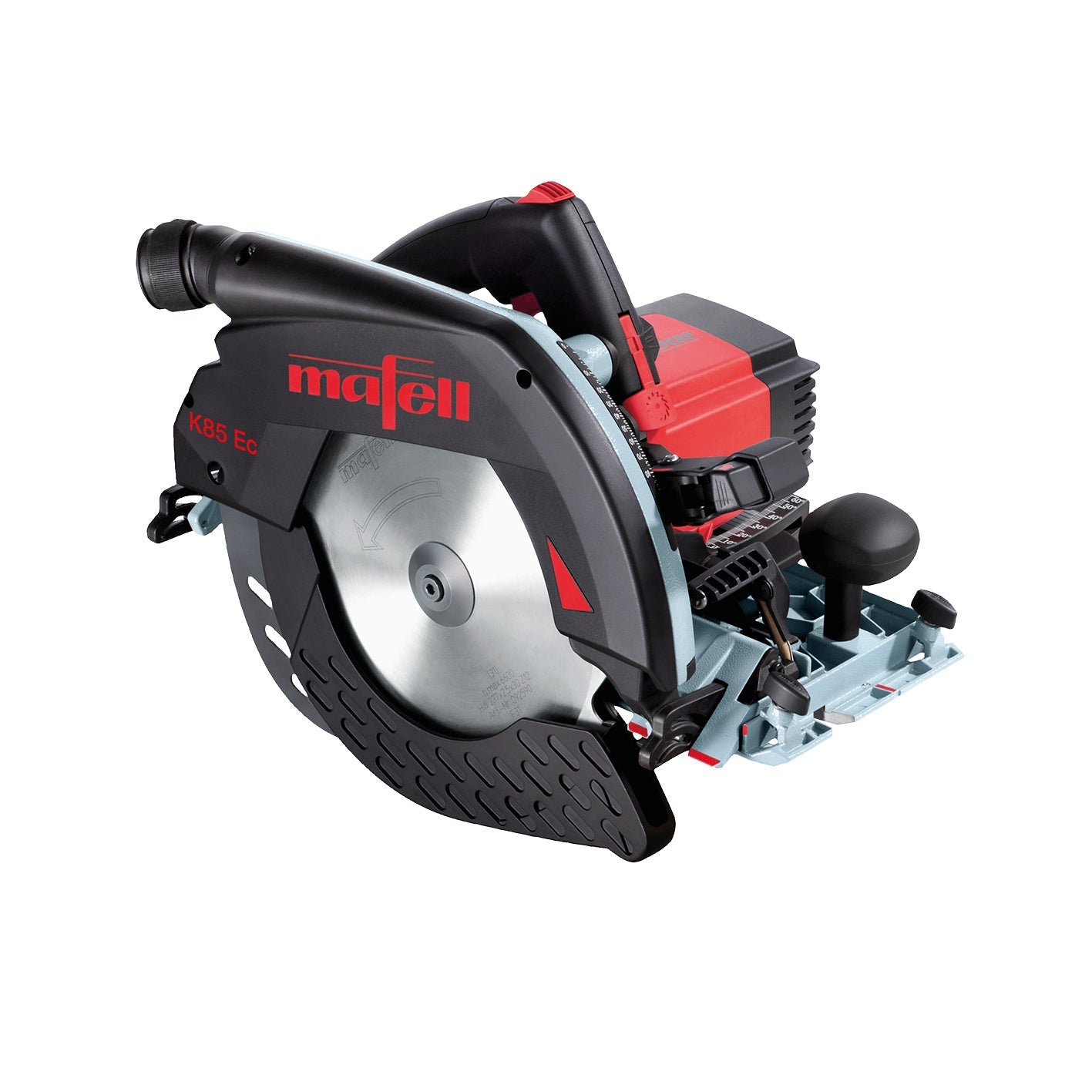

Mafell hand circular saw K 85 Ec - 91C601
Produktvideo
Description
Description
MAFELL hand-held circular saws combine power and precision with user-friendliness and ergonomics. These qualities blend together in a unique way.
Concentrated power and high torque now have a name: CUprex, the high-performance motor with performance-optimized digital electronics and newly developed control technology. The speed can be continuously adjusted to suit different materials and applications.
There is no longer any need to unscrew the splitting wedge - the FLIPPKEIL offers you optimal user comfort and safety when plunging.
Area of application
- Cross-sections and longitudinal sections
- Bevel cuts / slant cuts up to 60°
- Notch cuts
- plunge cuts
- Burrs, grooves
- Material use e.g.: solid wood, panel materials, insulation, doors, worktops, interior fittings and renovations
Advantages

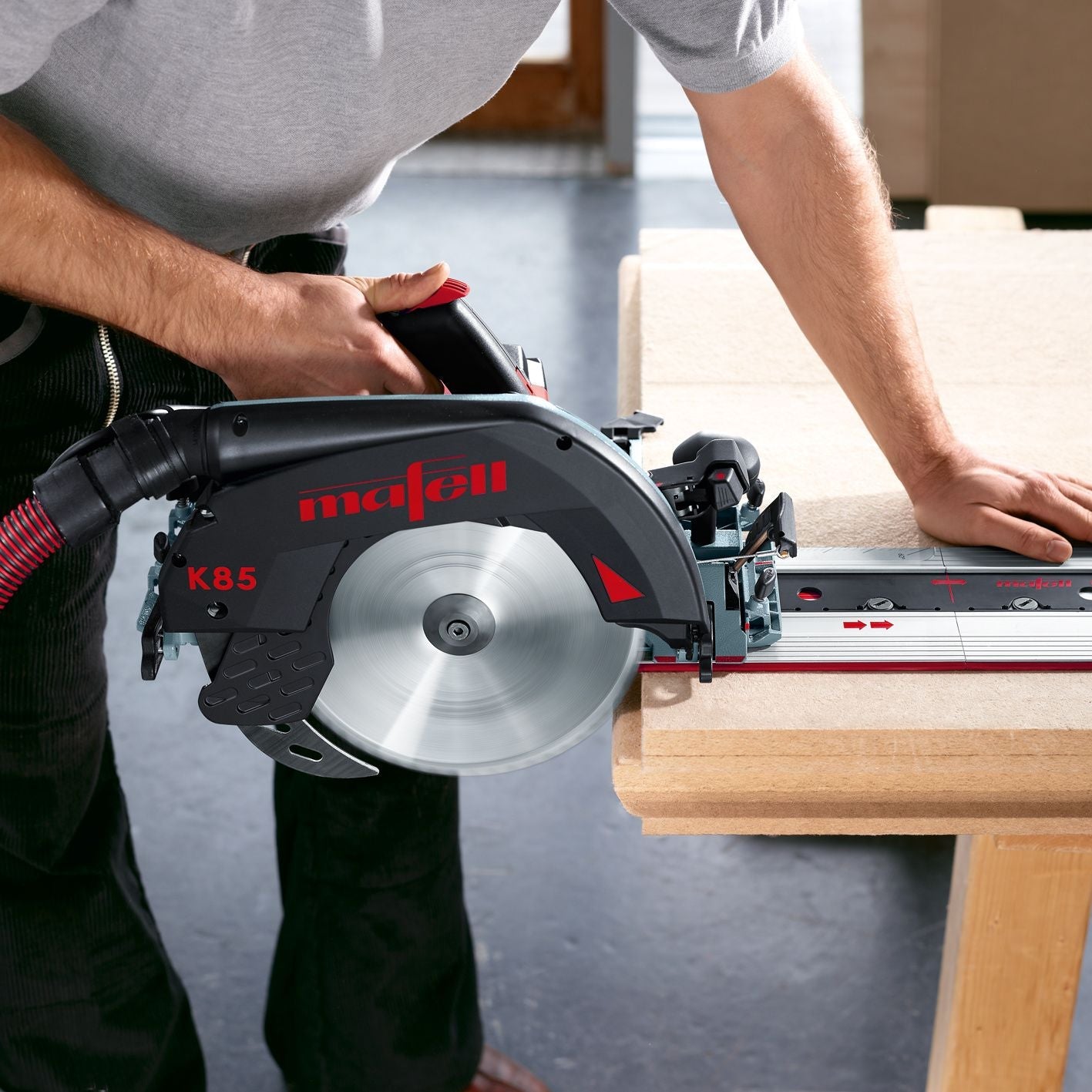

- For greater cutting depths of up to 88 mm. Even with a guide rail, an exceptional 82 mm is achieved.
- Optimal chip ejection especially when sawing insulation materials.

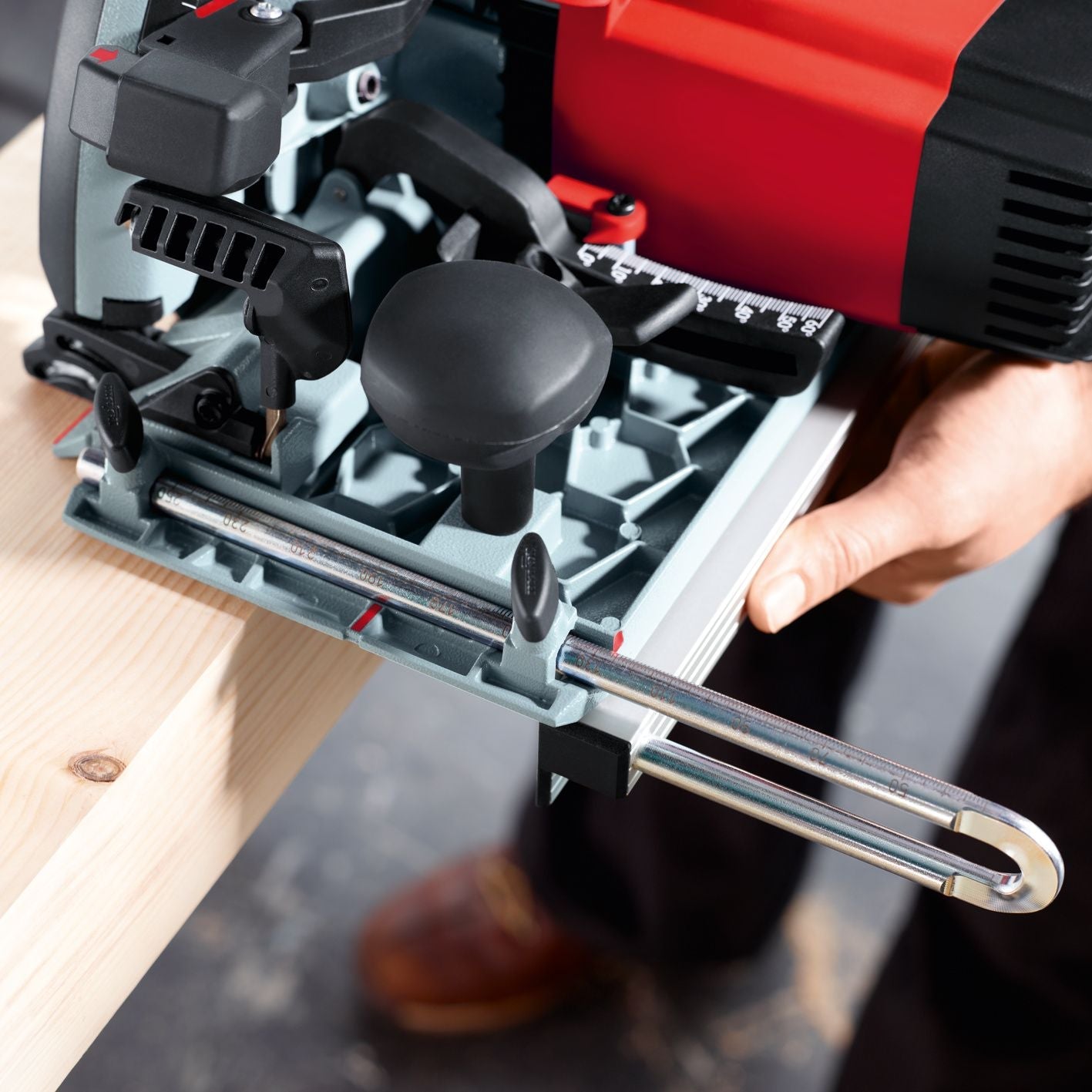

- Sawing according to the scribe mark. The scribe mark indicator automatically adjusts to the set inclination angle.
- The cutting depth can be adjusted and locked with just one hand movement.
- The innovative angle adjustment allows optimal readability of the scale.
SCOPE OF DELIVERY

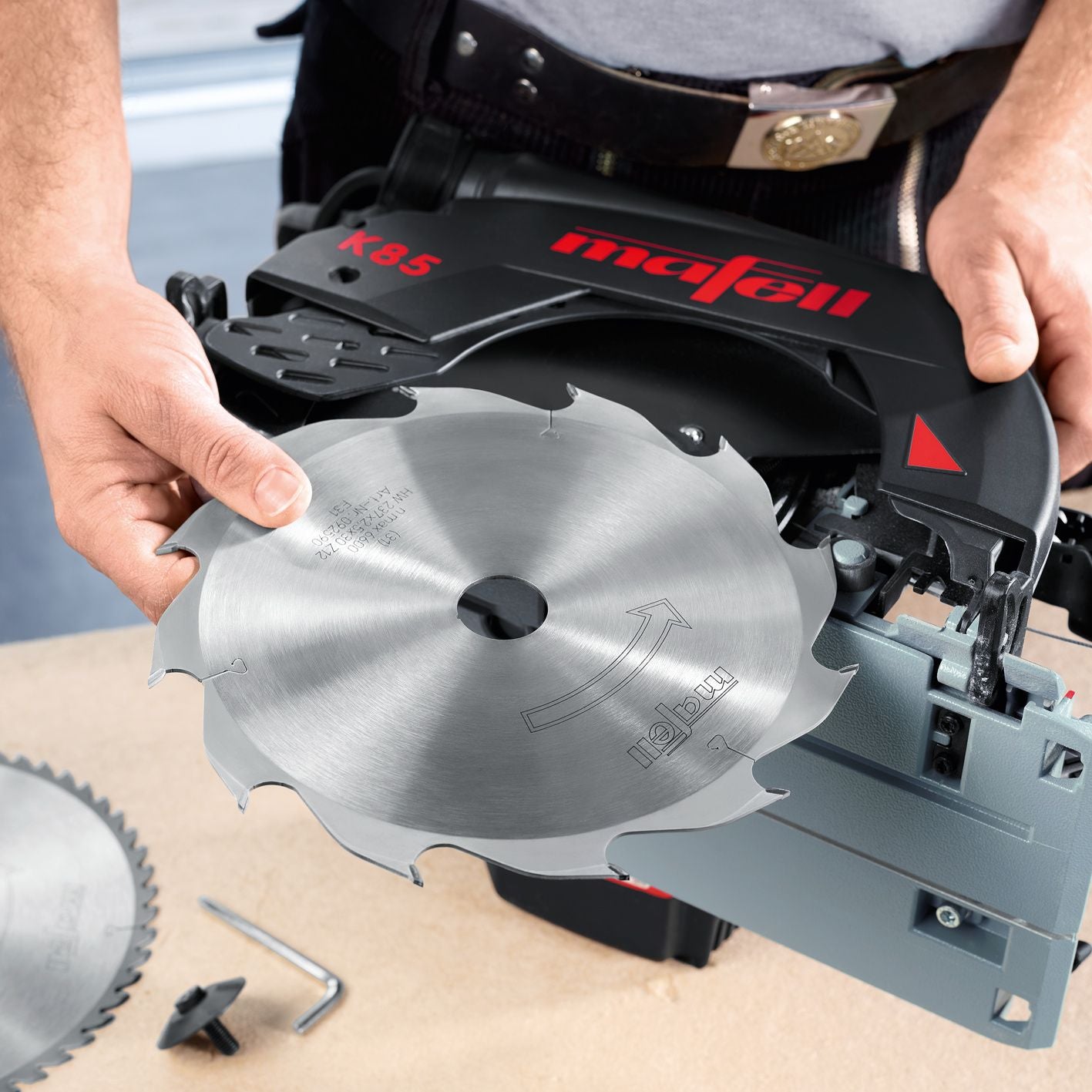

- 1 HM saw blade 237 x 1.8/2.5 x 30 mm, 12 teeth, WZ, for longitudinal cuts in wood; Order No. 092590
- 1 suction nozzle; Order No. 205290
- 1 hexagon wrench 5 mm; Order No. 093034
- 1 connection cable 4 m; Order No. 087888
TECHNICAL DATA
| Cutting depth | 0 - 88 mm |
| Cutting depth a | 0 mm |
| Cutting depth b | 88 mm |
| Cutting depth at 45° | 0 - 61.5 mm |
| Cutting depth at 60° | 2 - 44.5 mm |
| Swivel range | 0 - 60 ° |
| Nominal power | 2300 W |
| Weight | 6.7 kg |
| Universal motor | 230 V / 50 Hz |
| Nominal idle speed | 2250 - 4400 rpm |
