Mafell cross-cut rail saw KSS 300 MidiMAX in T-MAX - 916701
Description
Description

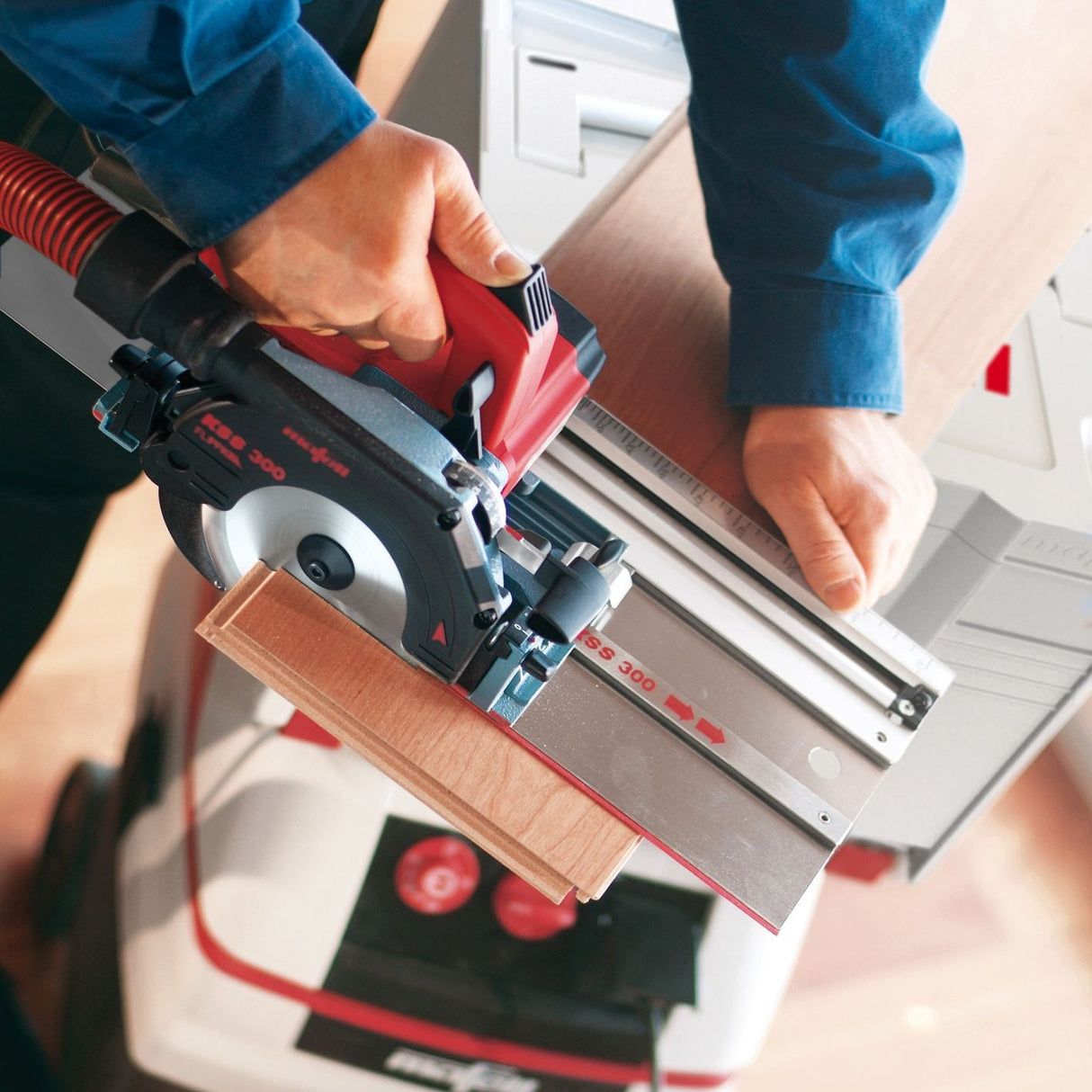

When it comes to interior work, one thing is paramount: precision. That's why the KSS 300 cross-cut saw focuses on all important functions with perfect handling.

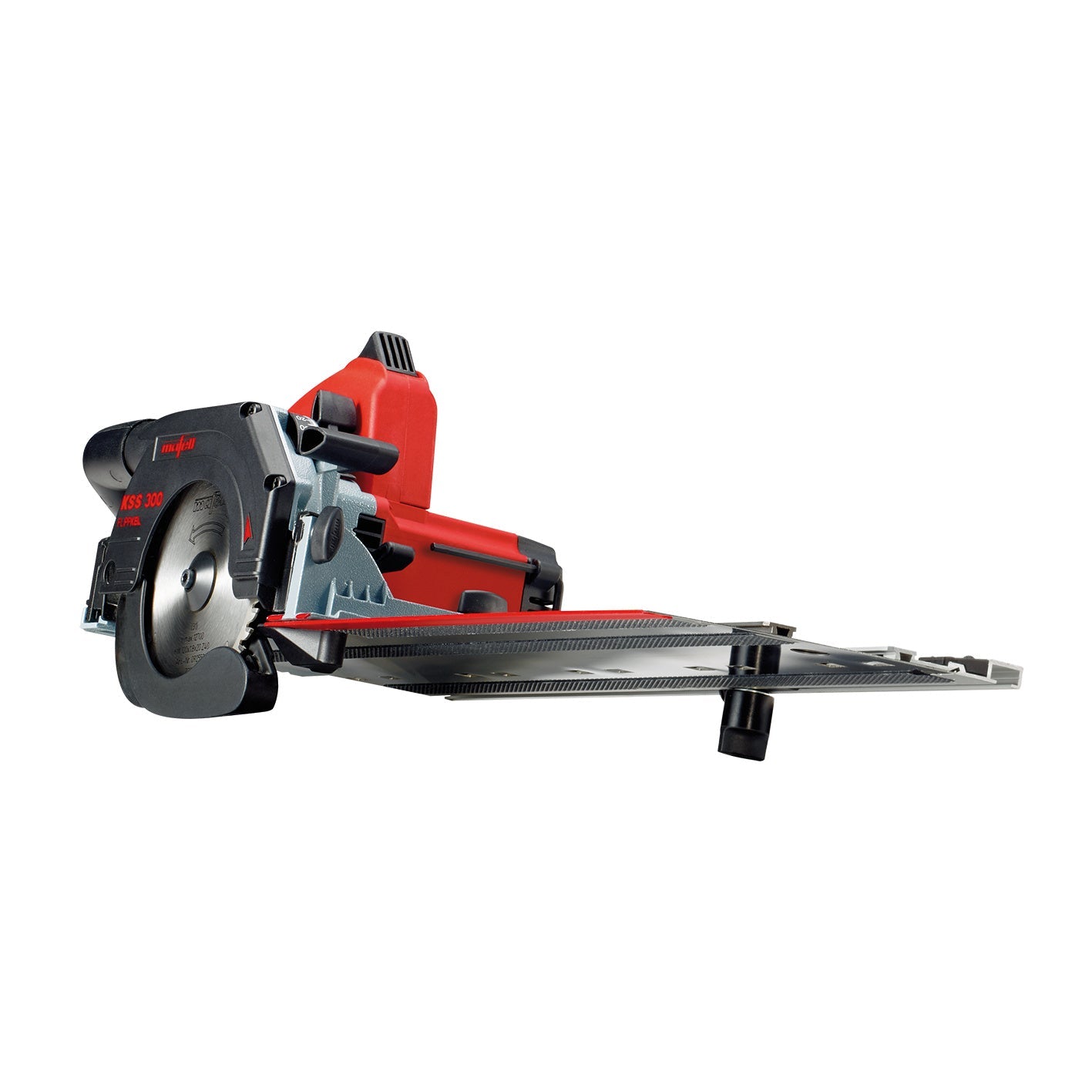

The quick-release connection between the hand-held circular saw and the KSS crosscut guide rail creates a highly functional one-handed crosscut guide rail saw for bevel and miter cuts. A return pull returns the KSS 300 to its starting position after each cut.
The 42mm circular hand saw provides power in all situations and, thanks to its die-cast magnesium construction, remains particularly handy and lightweight at 2.4 kg.
All together in the T-MAX transport case, you get a compact sawing system - ideal for shadow gaps, longitudinal, bevel, plunge and angle cuts or even for freehand cuts.
AREA OF APPLICATION

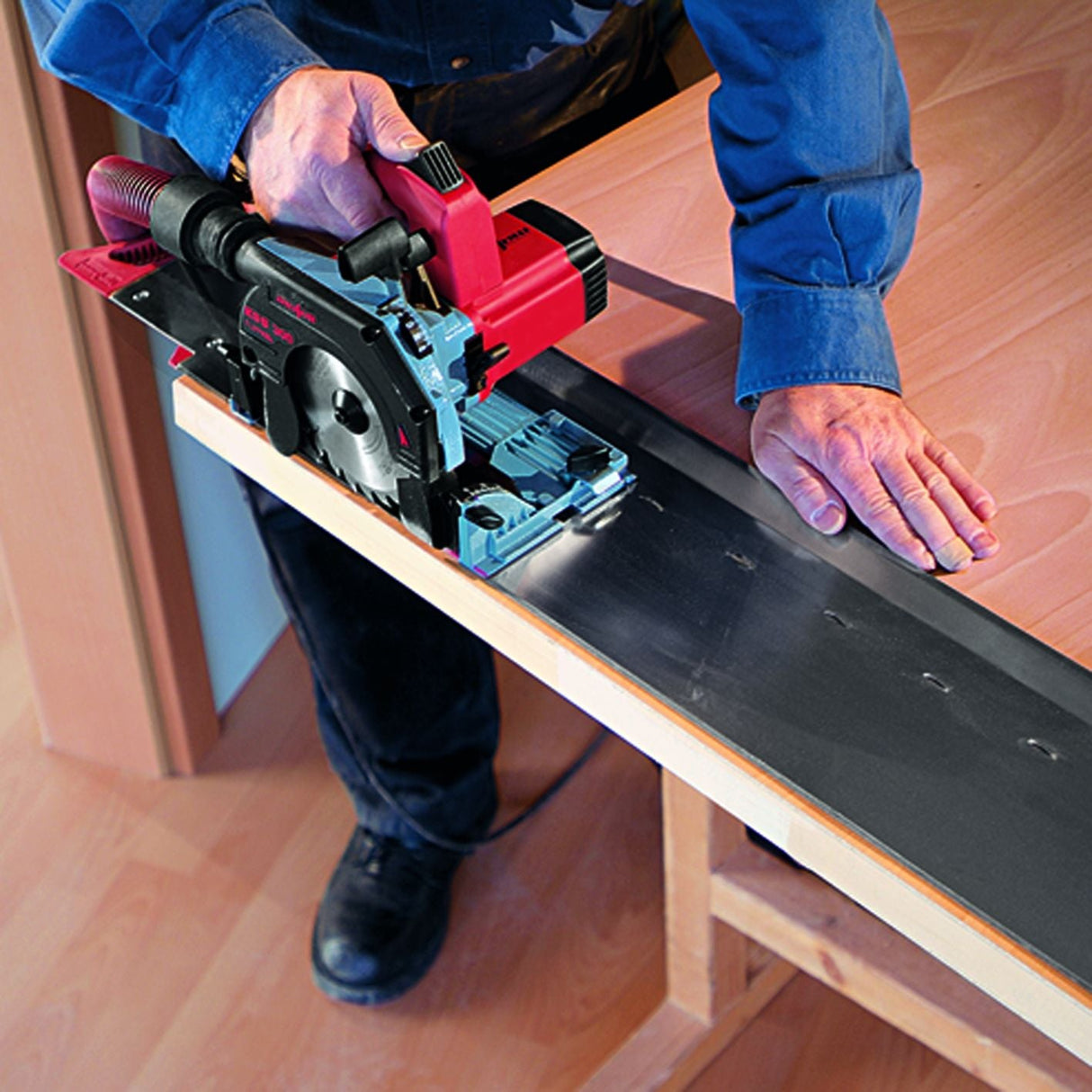

- Cross cuts with guide device
- Longitudinal and cross-sectional sections

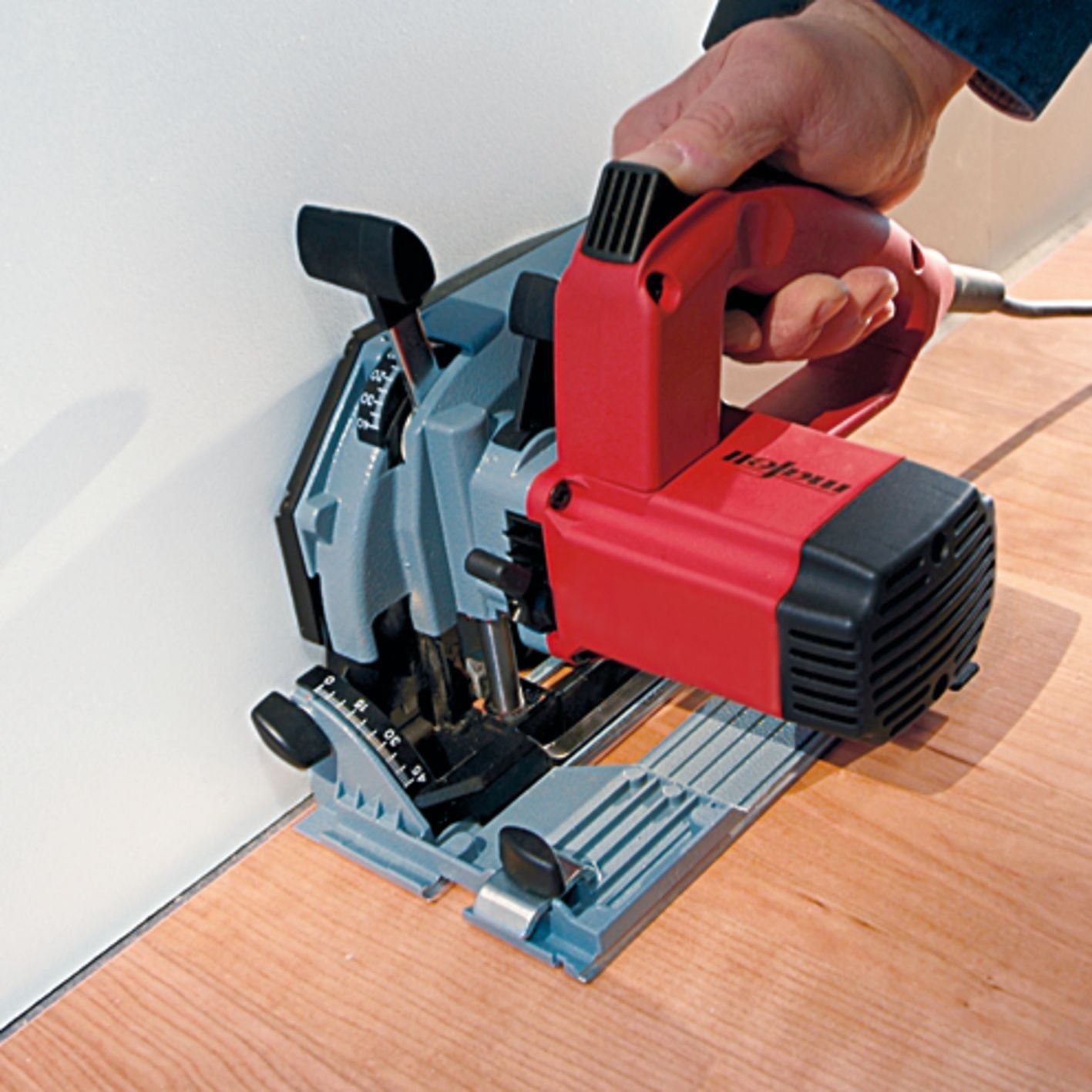

- Plunge cuts, cutouts and shadow gaps from 13 mm
- Materials used, e.g.: panel materials, doors, worktops, parquet and laminate, formwork
ADVANTAGES
- The pivot point of the KSS 300 system is located on the side of the lower edge of the rail - thus only one crack indicator, regardless of the angle setting with or without the rail.
- The hand-held circular saw can be easily separated from the cross-cutting rail at the touch of a button - separately it is equipped with all the functions of the MAFELL KSP series.
- A fixed positioning cam and a precisely adjustable stop thanks to the large scale - for precise, accurate miter cuts.
SCOPE OF DELIVERY
- 1 HM saw blade 120 x 1.2/1.8 x 20 mm, 40 teeth, FZ/TR, for universal use in wood; Order No. 092559
- 1 guide device S, max. cutting length 292 mm; Order No. 208169
- 1 rip fence; Order No. 203180
- 1 suction nozzle; Order No. 203782
- 1 4 mm hexagon wrench; Order No. 093074
- 1 connection cable 4 m; Order No. 087323
TECHNICAL DATA
| Cutting depth with rail at 0° | 0 - 40 mm |
| Cutting depth with rail at 45° | 0 - 27 mm |
| Cutting depth without rail at 0° | 0 - 42 mm |
| Swivel range | 0 - 45 ° |
| Cutting length | 300 mm |
| Angle cuts | -60 - +60 ° |
| Nominal idle speed | 8800 rpm |
| Nominal power | 900 W |
| Weight with rail | 3 kg |
| Universal motor | 230 V / 50 Hz |
