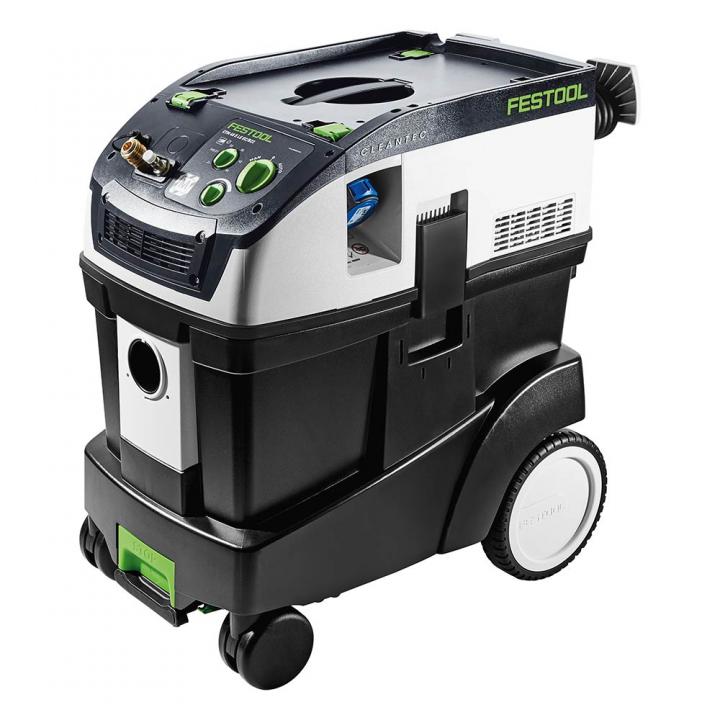

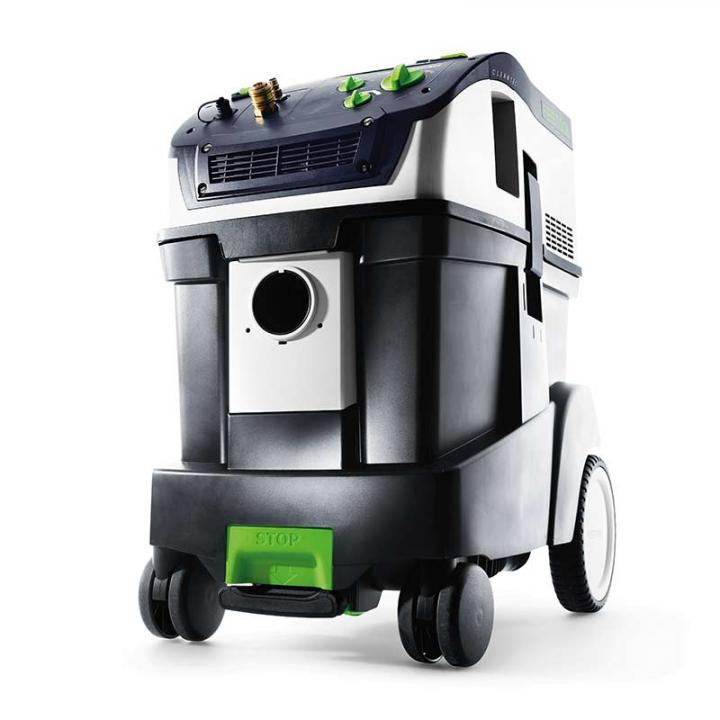

Festool mobile dust extractor CTM 48 E LE EC B22 R1 "compresse...
Description
Description
For maximum security.
The CTM 48 EC/B22 special vacuum cleaner with EC-TEC drive is designed for continuous use. The robust ABS plastic container features additional flame protection, making it suitable for the safe extraction of everything from aluminum, paper, soot, and powder coating dust to glass- and carbon-reinforced plastics. With its powerful, durable, and brushless EC-TEC motor and its enormous 48-liter container capacity, the CLEANTEC CTM 48 LE EC/B22 is ideal for use in industrial applications. Its generous container geometry offers maximum volume. At the same time, its swiveling casters, rear wheels, and push handle make it extremely mobile. The flat filter, fully integrated into the vacuum head, ensures full volume utilization: the gross and net container volumes are virtually identical. The extremely compact, high-performance turbine delivers the appropriate extraction power. A flow rate of 3900 l/min leaves nothing behind but clean air. Approved for dusts of dust class M.
- Complies with ATEX Directive 2014/34/EU for Zone 22 – dry, combustible dusts on machines and equipment are safely removed
- With new suction hose: smooth and elastic – with smooth outer skin for perfect gliding over surfaces
- With integrated connection for EAA and pneumatic tools
- Antistatic function against static charge while working
- Approval for dust class M
- Cable winding ensures order
- Economical thanks to optimal volume utilization with SELFCLEAN filter bag in the container
- EC-TEC motor for continuous use
- Container/filter bag volume 48/46 l
- Approval for dust class M
- Compressed air connection with supply air I/O automatic
- EAA connector
Main areas of application
- For dusts with limit values > 1 mg/m³ (CTL) or > 0.1 mg/m³ (CTM)
- Extraction of dry, combustible dust in Zone 22
- Extraction on electric and pneumatic tools thanks to integrated automatic on/off switch
- Suitable for wet and dry vacuuming
Scope of delivery
- 1 SELFCLEAN filter bag
- Smooth suction hose Ø 27/32 x 3.5 m-AS/CT
- Cable winding
- Compressed air module for automatic switch-on
- in the box
Technical data
- Power consumption 150 – 1,100 W
- Max. flow rate 3400 l/min
- Max. negative pressure 23000 Pa
- Filter surface 6318 cm²
- Power cable, rubber insulated 7.5 m
- Max. container/filter bag volume 48/46 l
- Dimensions (L x W x H) 630 x 406 x 640 mm

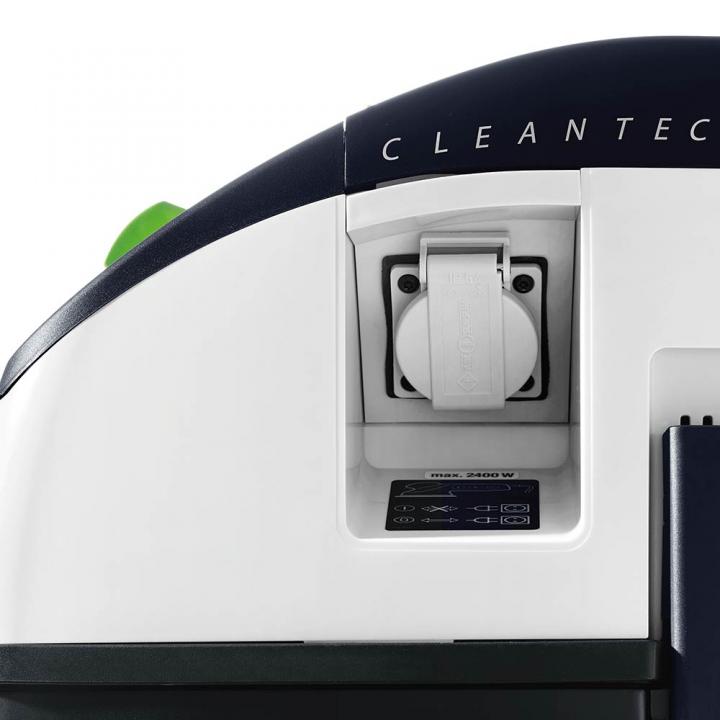

- Max. connected load appliance socket 2400 W
- Dust class M
- Weight 18.6 kg
- Vacuuming: A-weighted sound pressure level Lp 72 dB(A)
- Drive type mains 230V
