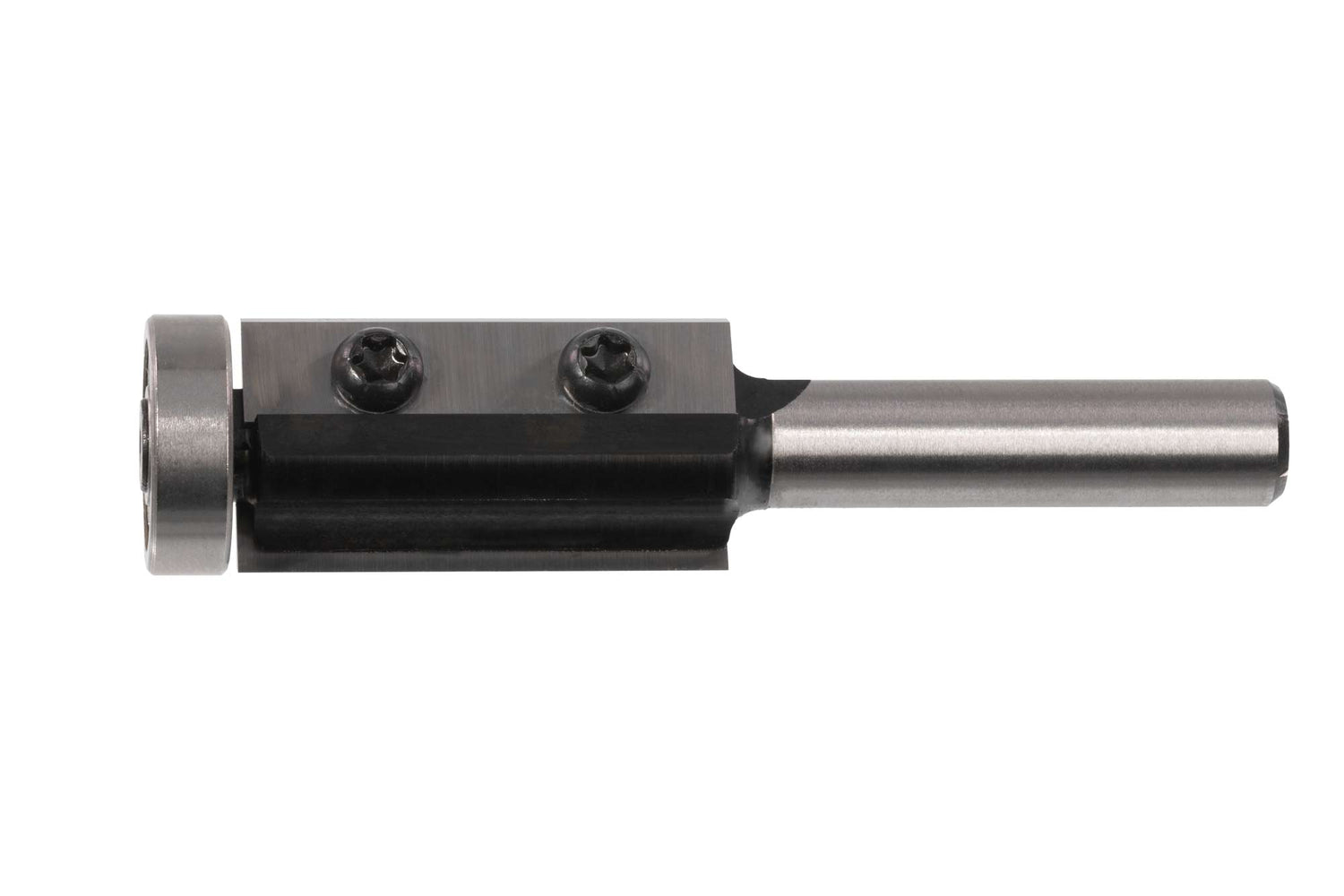

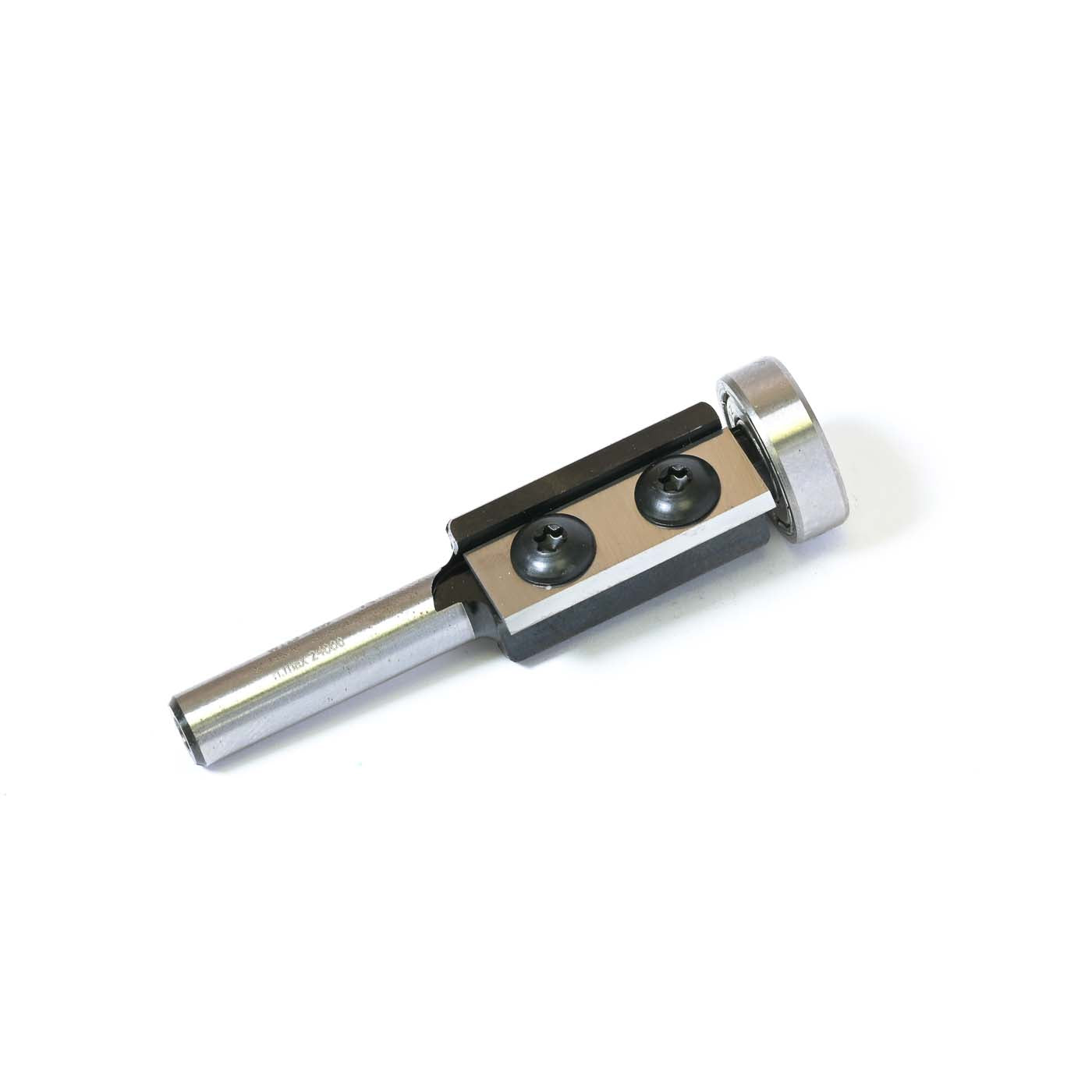

Ø 16 x 30 mm indexable insert HW flush milling cutter - shank 8 mm - bearing below - W113.160.R

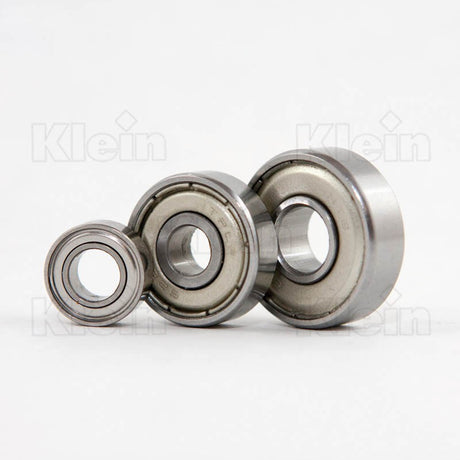

Bottom thrust bearing

INDIVIDUAL INSERT FLUSH MILLING CUTTERS

High-quality flush cutter with two interchangeable carbide inserts.

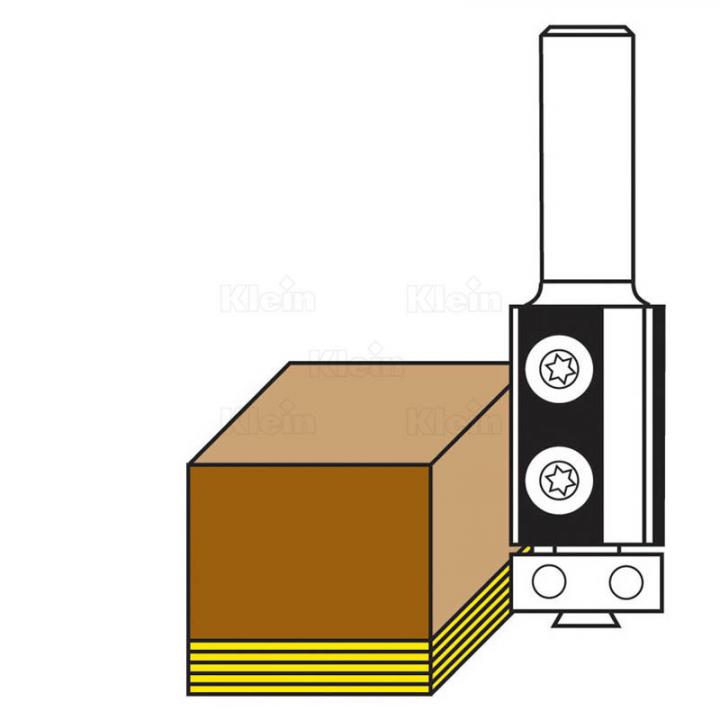

Ideal for copying templates or flush milling protruding materials such as coatings, edge banding, etc.

• Bottom thrust bearing
• Interchangeable HW inserts for high repeatability
• High concentricity
• Made with care in Italy

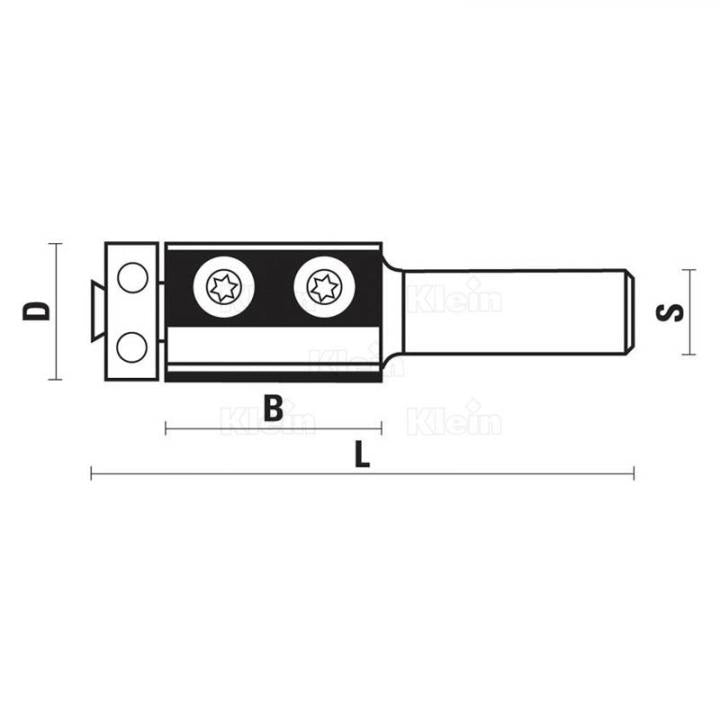

TECHNICAL DATA

• Diameter 16 mm
• Usable length 30 mm
• Total length 70 mm
• Maximum speed up to 24,000 rpm
• Cutting Z 2

SCOPE OF DELIVERY

• Base milling cutter with mounted ball bearings
• 2 carbide inserts mounted
• 1 Torx screwdriver

A NOTICE

• Carbide inserts have two cutting edges. When these edges become blunt, they can be resharpened using a whetstone or a grinder. However, this will reduce the effective diameter of the cutter.
• Please check the screws for tightness before use
