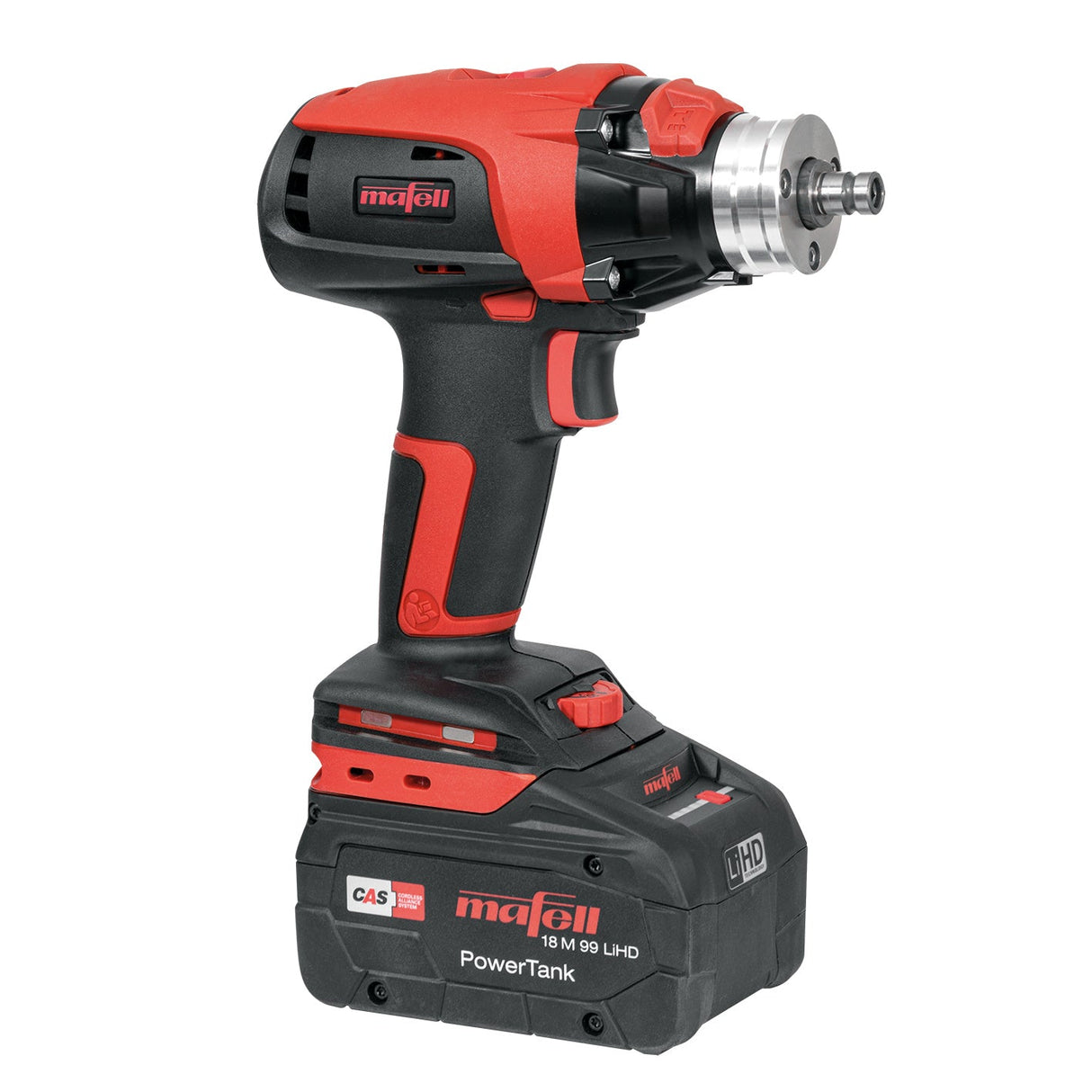

Mafell Cordless Impact Drill ASB 18 in the T-MAX - 91C901
Produktvideo
Description
Description
For extreme challenges, we have given the new generation of the A 18 and the ASB 18 a particularly robust design and even more power.
Its impact drilling function makes the ASB 18 a true all-rounder.
The advanced PowerTanks of our battery-powered devices are equipped with sophisticated processor-controlled battery technology. The advantage: All relevant parameters of the individual battery cells, such as charge level and temperature, are continuously monitored.
AREA OF APPLICATION

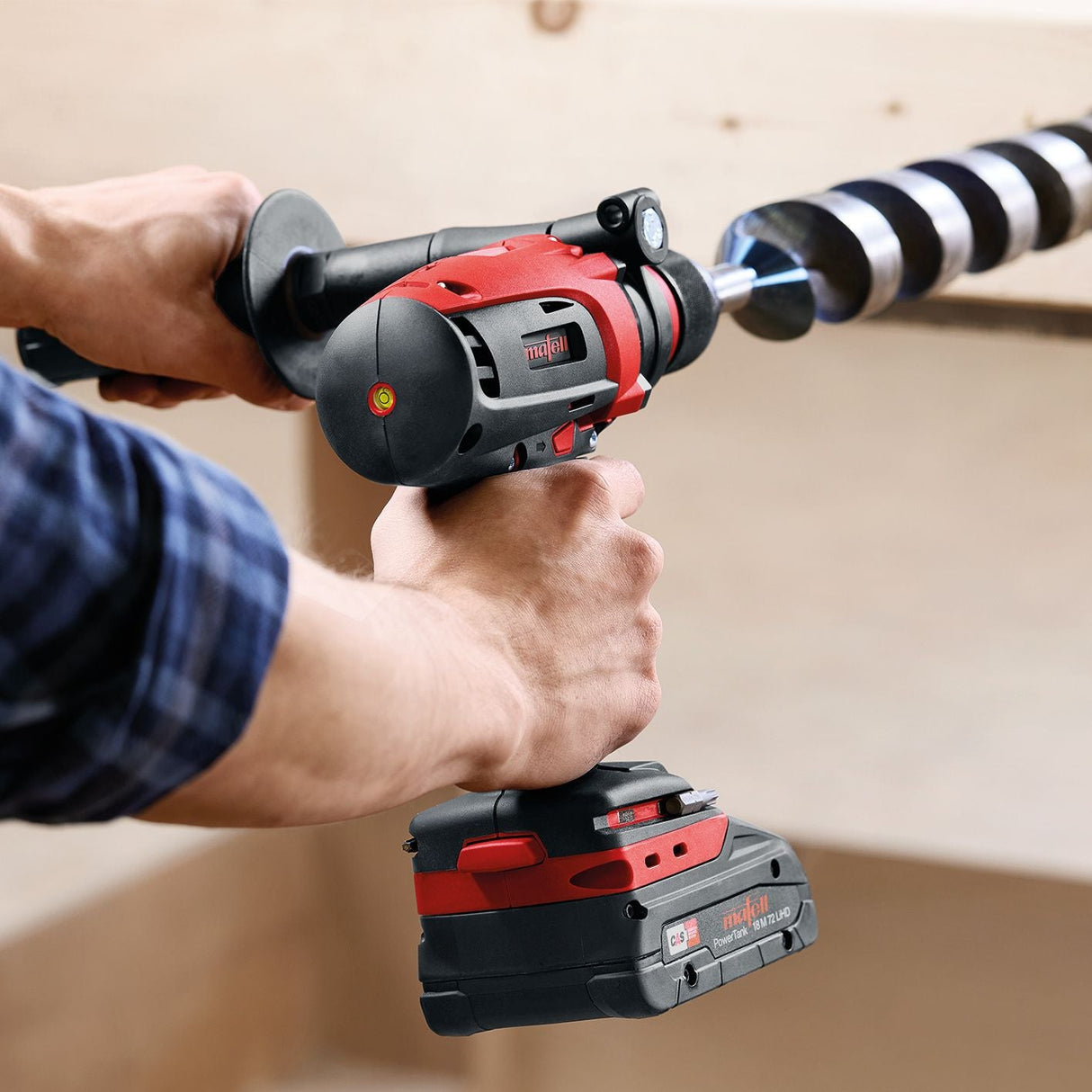

- Drilling work
- Screwing work

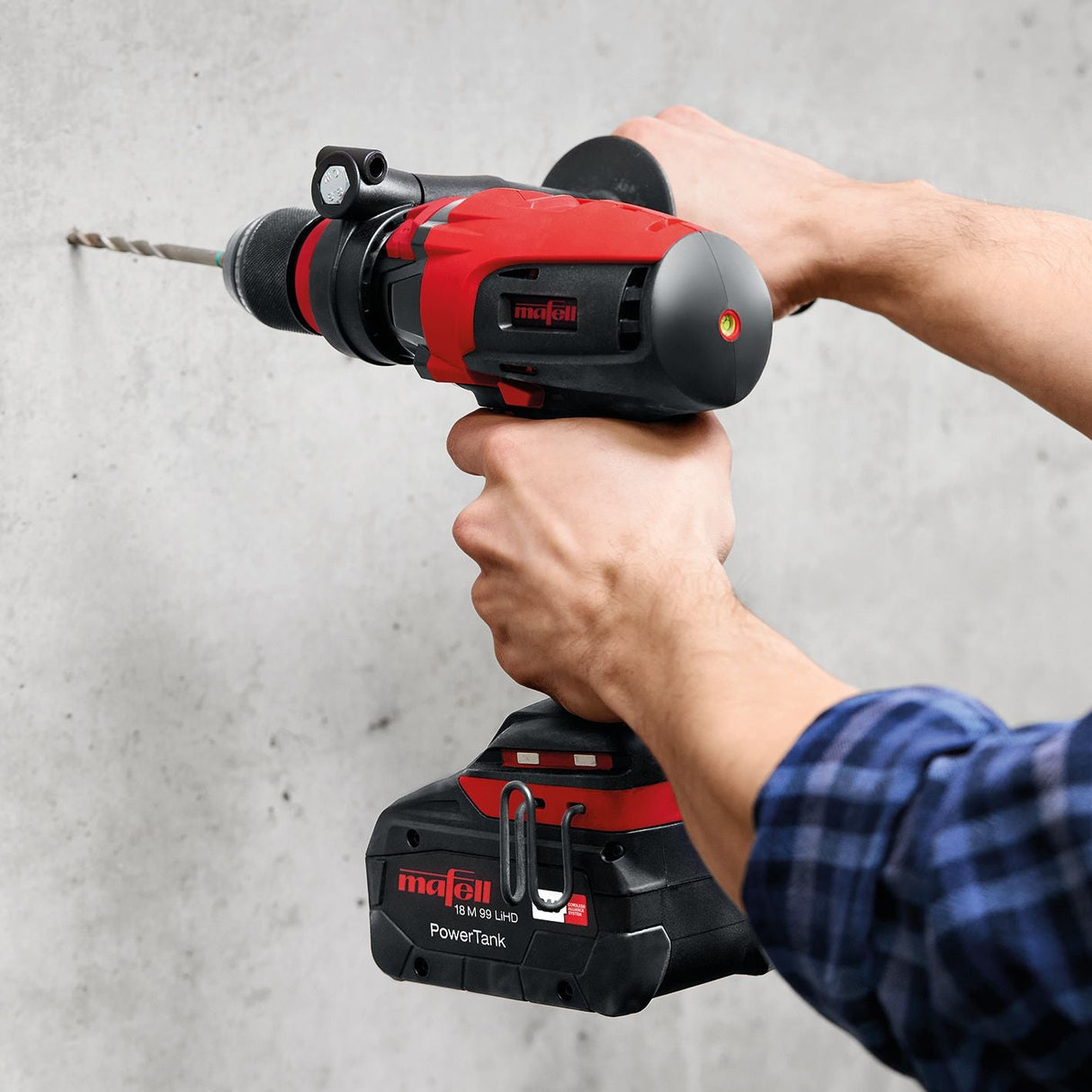

- Impact drilling work
ADVANTAGES

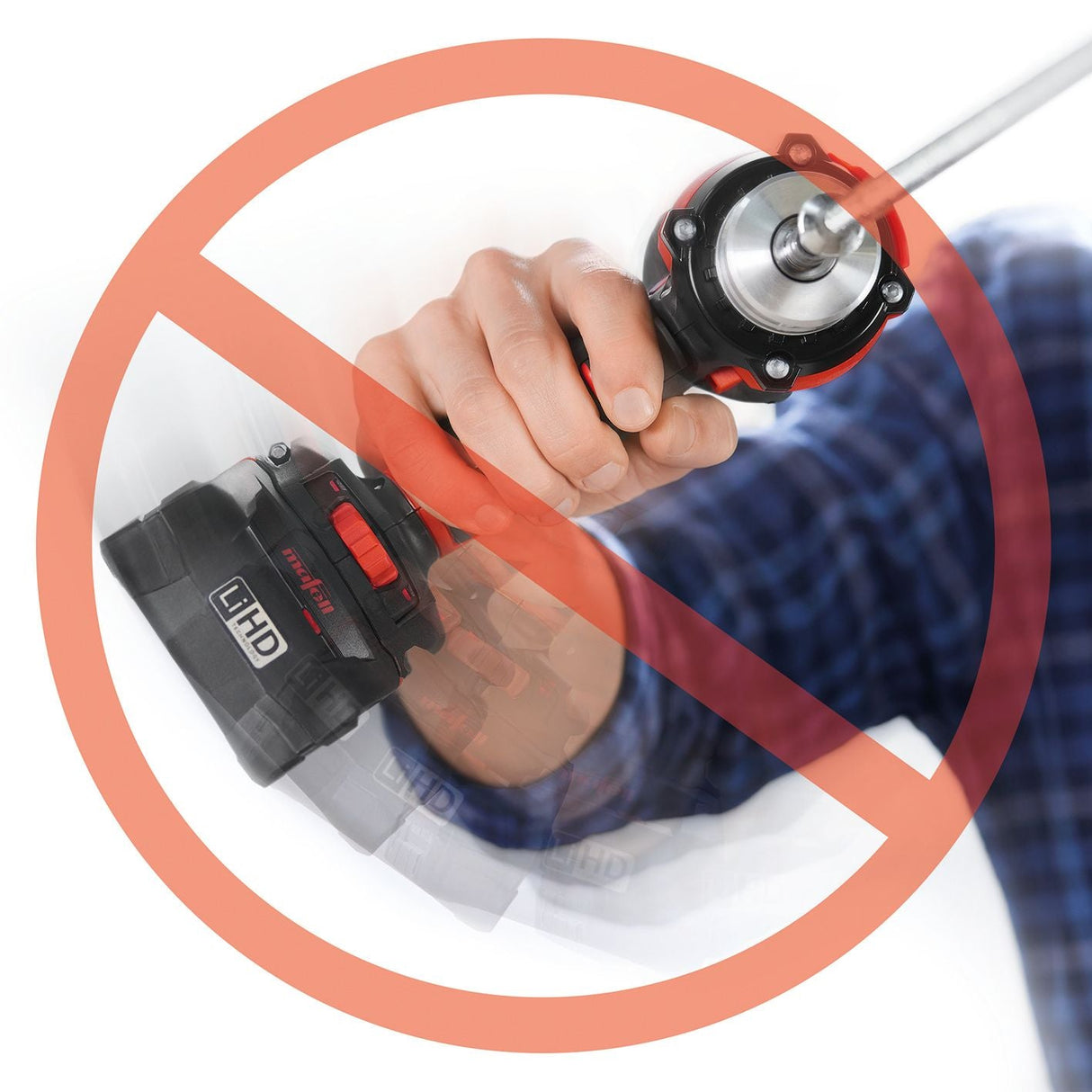

- The pulse function provides a decisive advantage in difficult situations, such as tight screws and drilling into smooth surfaces.
- With the 4 magnetic bit holders on both sides of the battery holder, the right bit is always at hand.
- The bright LED lights with afterglow function ensure large-area, shadow-free illumination of the work area.
- Spindle with 1/4" mount for direct attachment of bits and quick-change accessories.
- Clamping neck with Ø = 43 mm fits in all MAFELL BST drilling stations.
SCOPE OF DELIVERY
- 1 quick-change drill chuck A-SBF 13; Order No. 206772
- 1 quick-change bit holder A-SBH; Order No. 206766
- 1 belt clip
- 1 additional handle
- 1 battery power tank 18 M 72 LiHD; Order No. 094500
- 1 battery PowerTank 18 M 99, 18V, 99 Wh (LiHD); Order No. 094503
- 1 battery PowerStation APS M; Order No. 094492
- 1 T -MAX transport and storage box
TECHNICAL DATA
| Clamping neck diameter | 43 mm |
| Drill chuck span | 13 mm |
| Max. drilling diameter for wood | 68 mm |
| Max. drilling diameter steel | 13 mm |
| Torque soft | 65 Nm |
| Torque hard | 130 Nm |
| Torque hard | 1150 lbf |
| Impulse moment (soft) | 65 Nm |
| Nominal idle speed in 1st gear | 0 - 560 rpm |
| Nominal idle speed in 2nd gear | 0 - 1960 rpm |
| Weight (including battery) | 1.9 kg |
| Dimensions (L x W x H) | 163 x 79 x 201 mm |
| Nominal voltage | 18 V |
| stroke rate | 38000 rpm |
| Torque levels | 10 + 1 |
| Vibrations (measured in metal/reinforced concrete) < | 2.5/15.5 m/s² |
| Sound pressure level dB (A) | 95 |
| Sound power level (LwA) dB(A) | 103 |
| Weight (incl. PowerTank 18 M 72 LiHD) | 1.9 kg |
