Note: Available from May 2023 at the earliest
Tear-free sawing like never before. Perfect on the first cut.

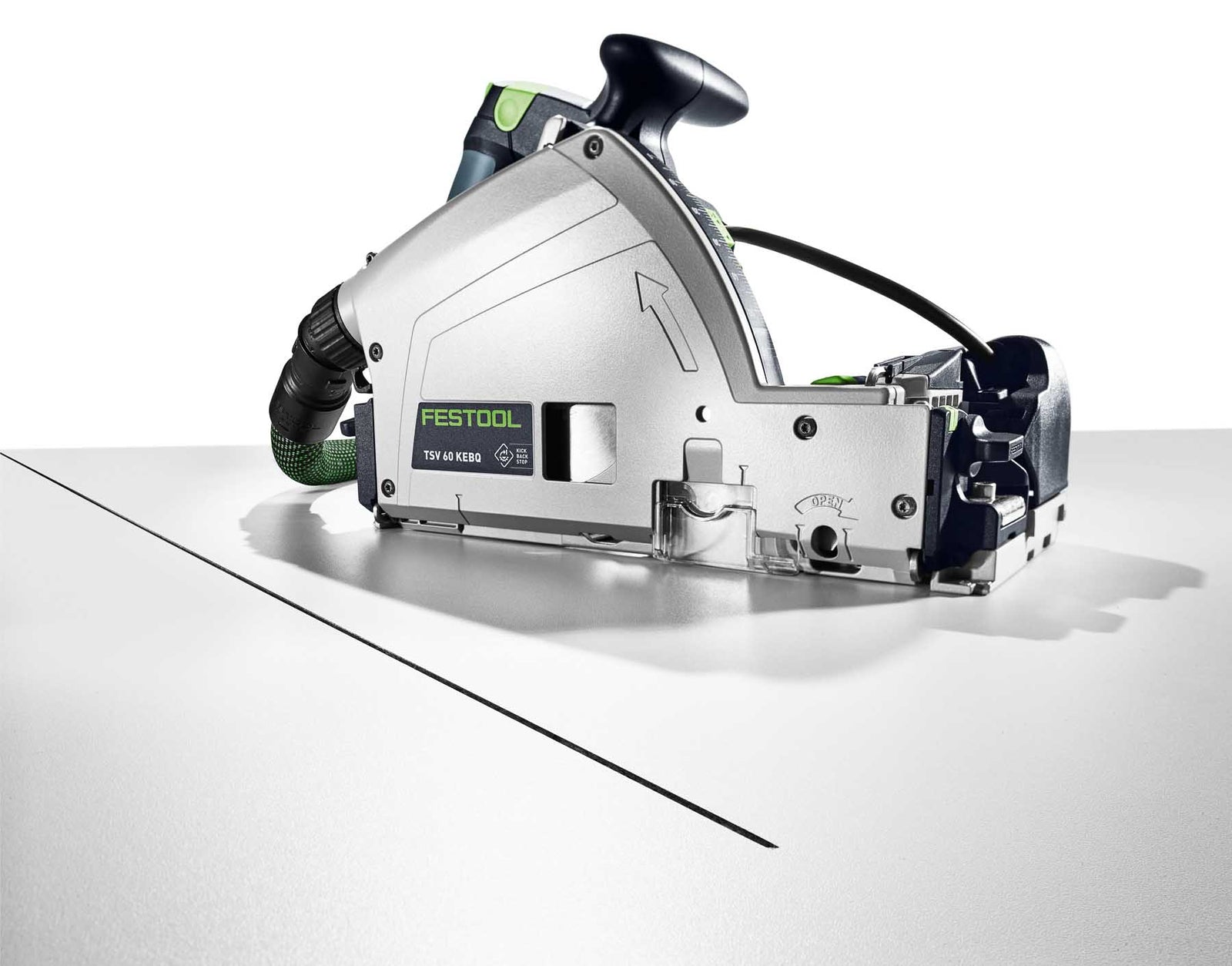

The scoring plunge saw TSV 60 K.
You can find the product in the shop here:
https://www.mikestoolshop.at/festool-vorritzer-tauchsaege
Since 1980, you've been able to rely on the reliable quality and absolute precision of Festool plunge-cut saws. Our goal: The perfect cutting result. With the TSV 60 K scoring plunge-cut saw, we've perfected precisely this requirement. Tear-free sawing on both sides is now possible with the first cut. Combined with the integrated KickbackStop, you protect yourself and your workpiece from dangerous kickbacks, and thanks to the matching Festool system accessories, you can work mobile, precisely, and to your exact specifications at any time. The TSV 60 K enables workshop quality even on the construction site – just like with a stationary machine.
- Tear-free: The scoring unit ensures tear-free work results on both sides at the first cut
- Durable: Diamond scoring saw blade with very long service life for permanently perfect cutting quality
- Sawing system: Comprehensive system with suitable accessories for perfect panel cutting
- Safer: The unique KickbackStop reduces the risk of injury from kickback when sawing and plunging into the workpiece
- Versatile: 60 mm cutting depth and can be combined with the FSK cross-cutting rails or FS guide rails
- Swivels with: Perfect scoring even with mitre cuts from 0° to 45°
- Flexible: Both the scoring and main saw blades can be manually activated and deactivated
- Convenient: The FastFix spindle stop on the main saw blade and the option to store it on the side make changing the saw blade very easy, even with the scoring saw blade
- Constant: EC-TEC motor in combination with the thin-cutting saw blades enables effortless work progress with less effort
Tear-free in one cut.
Sawing system for perfect panel cutting.
Protects against dangerous setbacks.
Main areas of application
- Tear-free cutting of panel material, especially veneered and plastic-coated panels
- Tear-free cutting of HPL compact panels such as Trespa®
- Precise plunge cuts up to 60 mm material thickness
- Perfect and tear-free cutting of interior doors
- Sawing recesses in doors and kitchen worktops
- Cross cuts with the FSK cross cut rail (floor and facade panels)
Scope of delivery
- 1 x plunge saw with scoring function TSV 60 K
- 1 x circular saw blade WOOD FINE CUT HW 168x1.8x20 WD42
- 1 x scoring saw blade DIA 47x2.5x6.35 T1
- 1 x viewing window
- 1 x Allen key SW 4
- 1 x Allen key SW 5
- 1 x Systainer SYS3 M 437
Our variants
- Variant 1 only plunge saw with scoring unit
- Variant 2 with 1900mm guide rail
- Variant 3 with 1400mm guide rail
- Variant 4 with 3000mm guide rail
Technical data
- Power consumption (plunge saw/scorer) 1 500 / 190 W
- Idle speed (plunge saw/scorer) 3,000 - 6,800 / 16,000 - 22,000 min⁻¹
- Saw blade diameter (plunge saw/scoring cutter) 168 / 47 mm
- Angle range 0 - 45 °
- Cutting depth 0 - 62 mm
- Dust extraction connection Ø 27/36 mm
- Cable length 4.00 m
- Product weight 6.20 kg
- Transport weight including accessories 9.00 kg
- Drive type mains 230V
